Description

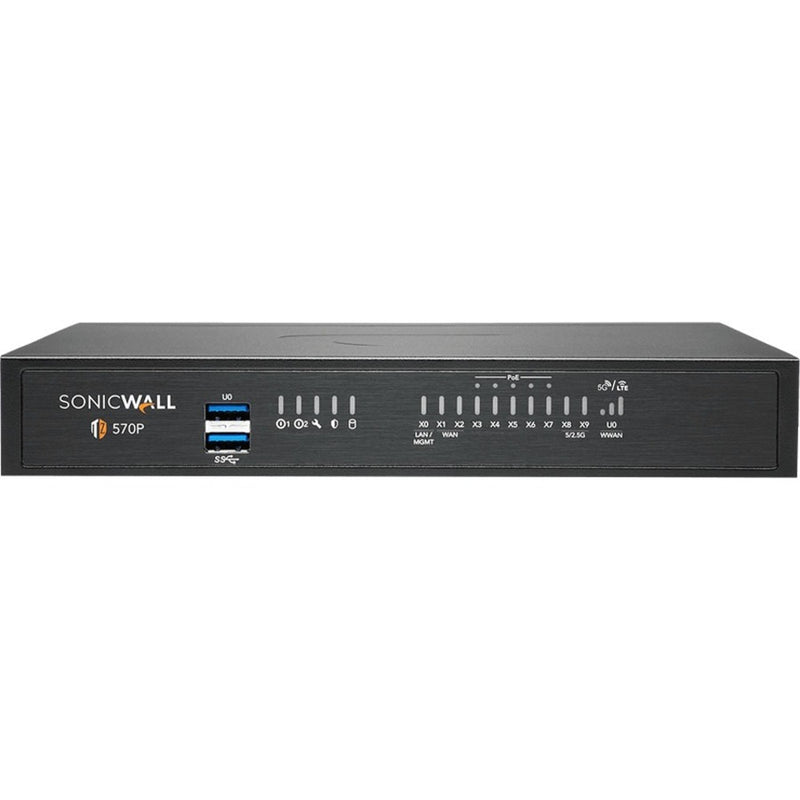

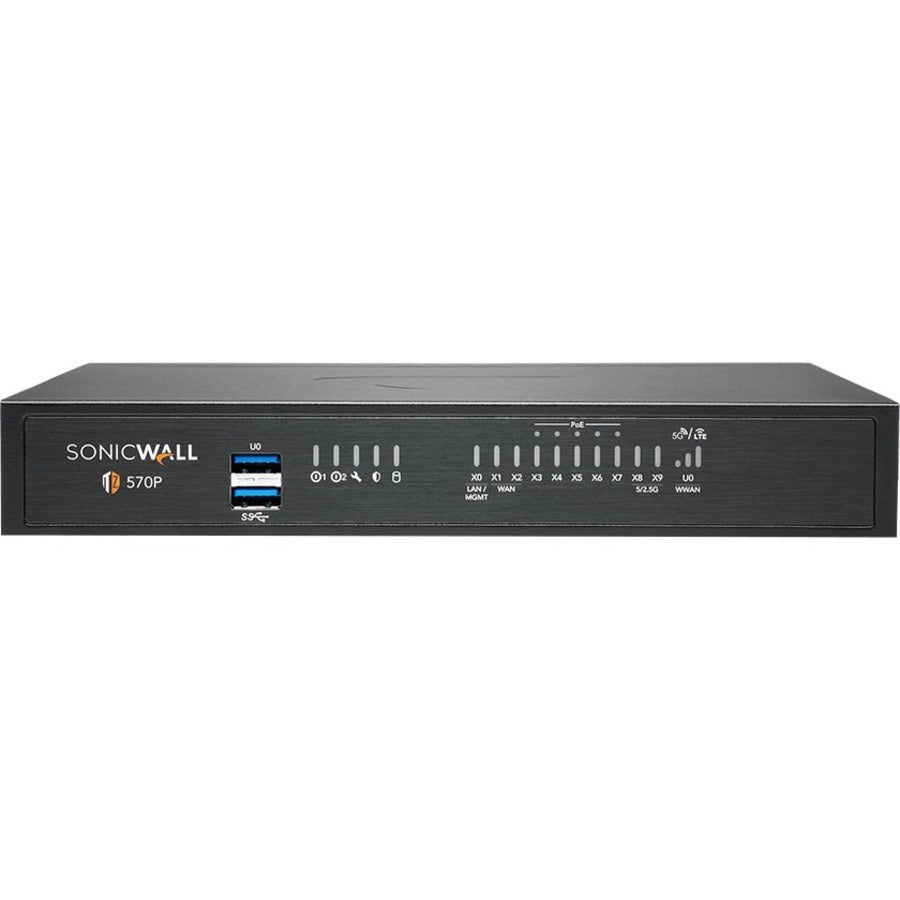

The SonicWall TZ570 (Gen 7) is a next-generation firewall designed for small to mid-sized organizations and distributed enterprise environments. Equipped with advanced security capabilities, it delivers industry-validated protection against evolving threats while maintaining high-speed performance.
With 3 years of Advanced Protection Service Suite included, the TZ570 provides gateway anti-malware, intrusion prevention, application control, content filtering, Capture ATP sandboxing, and 24x7 support. Its versatile networking features include 5GbE interfaces, high DPI SSL inspection, and scalable VPN connectivity. Powered by SonicOS 7.0, the TZ570 ensures simplified deployment, centralized management, and comprehensive security—ideal for organizations seeking enterprise-grade protection in a compact desktop form factor.
| Category | Details |
|---|---|
| Device Type | Security appliance |
| Bundled Services | 3 years Advanced Protection Service Suite |
| Form Factor | Desktop |
| Dimensions (W x D x H) | 8.9 in x 5.9 in x 1.4 in |
| Weight | 34.21 oz |
| Connectivity | Wired |
| Protocols Supported | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Routing Protocols | OSPF, RIP-1, RIP-2, BGP, static routing, policy-based routing (PBR) |
| Management Protocols | SNMP 2/3, HTTP, HTTPS, CLI, SSH |
| Performance | Firewall: 4 Gbps ¦ Threat prevention: 2 Gbps ¦ VPN: 1.8 Gbps ¦ SSL: 750 Mbps |
| Concurrent Connections | 1,250,000 SPI ¦ 400,000 DPI ¦ 50,000 DPI SSL |
| VPN Support | 200 Site-to-Site Tunnels ¦ Up to 500 IPSec Clients ¦ 200 SSL VPN licenses |
| Users Supported | Up to 2,500 Single Sign-On (SSO) |
| Interfaces | 6 x 1GbE RJ-45 ¦ 2 x 1GbE WAN ¦ 2 x 5GbE SFP+ ¦ 2 x USB 3.0 ¦ 2 x Console |
| Features | SD-WAN, VLAN, QoS, NAT, DPI, Anti-Spam, DoS/DDoS protection, IPv4/IPv6 |
| Encryption | DES, 3DES, AES (128/192/256-bit), MD5, SHA-1 |
| VoIP Protocols | SIP, H.323 v1–v5 |
| Compliance | FIPS 140-2, ICSA Firewall/AV, Common Criteria, FCC Class B, RoHS, WEEE |
| Operating System | SonicOS 7.0 |
| Power Supply | External 60W adapter ¦ AC 100–240 V ¦ Optional redundancy |
| MTBF | 26.1 years |
| Warranty | 1-year limited warranty |
| Environment | Operating Temp: 32–104 °F ¦ Humidity: 5–95% non-condensing |
