Description
The SonicWall TZ570 TotalSecure Essential Edition (1-Year) delivers next-generation firewall protection designed for small to mid-sized businesses and distributed enterprises. With 5 Gigabit Ethernet interfaces and industry-leading security services, this all-in-one solution combines firewalling, switching, and wireless capabilities in a compact desktop form factor.
Powered by SonicOS 7.0, the TZ570 provides advanced networking features, SD-WAN support, TLS 1.3 decryption, and Zero-Touch Deployment for simplified rollout across multiple locations. The Essential Edition TotalSecure bundle includes gateway antivirus, intrusion prevention, content filtering, application control, Capture Advanced Threat Protection (ATP), DNS security, and 24x7 support—ensuring complete protection against ransomware, malware, and zero-day threats.
With built-in and expandable storage up to 256GB, seamless integration with SonicWall Switches, SonicWave access points, and Capture Client, plus high availability and cloud management options, the TZ570 empowers businesses to scale securely while maintaining visibility, compliance, and performance.
| Feature | Details |
|---|---|
| Model | SonicWall TZ570 TotalSecure Essential Edition |
| SKU | 02-SSC-5649 |
| Firewall Throughput | 4.0 Gbps |
| Threat Prevention Throughput | 2.0 Gbps |
| Application Inspection Throughput | 2.5 Gbps |
| IPS Throughput | 2.5 Gbps |
| Anti-Malware Throughput | 2.0 Gbps |
| TLS/SSL Inspection Throughput | 750 Mbps |
| VPN Throughput | 1.8 Gbps |
| Concurrent Connections (Max) | 1,250,000 (SPI) |
| Concurrent Connections (DPI SSL) | 30,000 |
| VPN Tunnels | 200 site-to-site |
| SSL VPN Licenses | 2 (expandable to 200) |

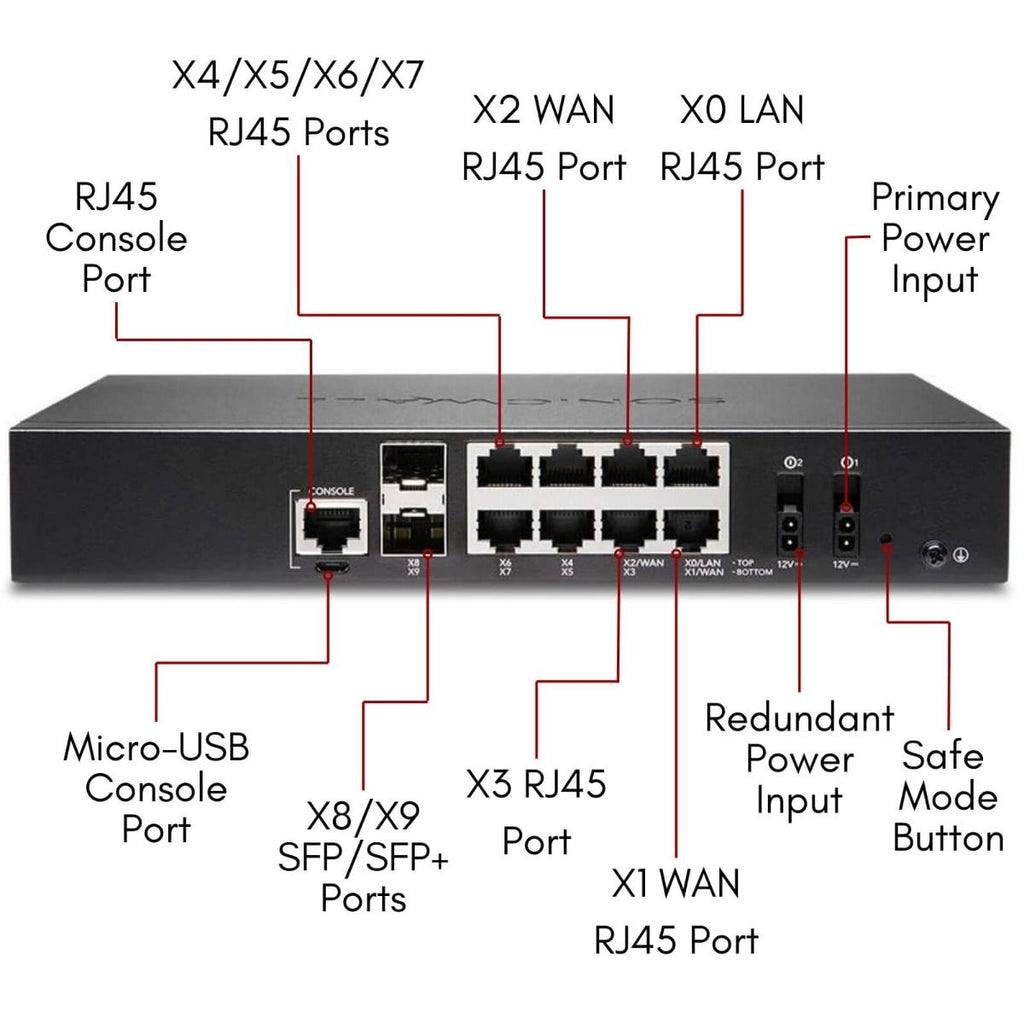

| Interfaces | 8x 1GbE, 2x 5GbE, 2x USB 3.0, 1x Console |
| Expansion | Storage expansion slot (up to 256GB) |
| Management | SonicWall Network Security Manager, CLI, SSH, Web UI, REST APIs |
| Form Factor | Desktop |
| Power Supply | 60W, redundant power option |
| Dimensions / Weight | 3.5 x 15 x 22.5 cm / 0.97 kg |
| Included Services (1-Year) | Gateway AV, Intrusion Prevention, Application Control, Content Filtering, Capture ATP, DNS Security, Comprehensive Anti-Spam, 24x7 Support |
| Operating System | SonicOS 7.0 |
