Description

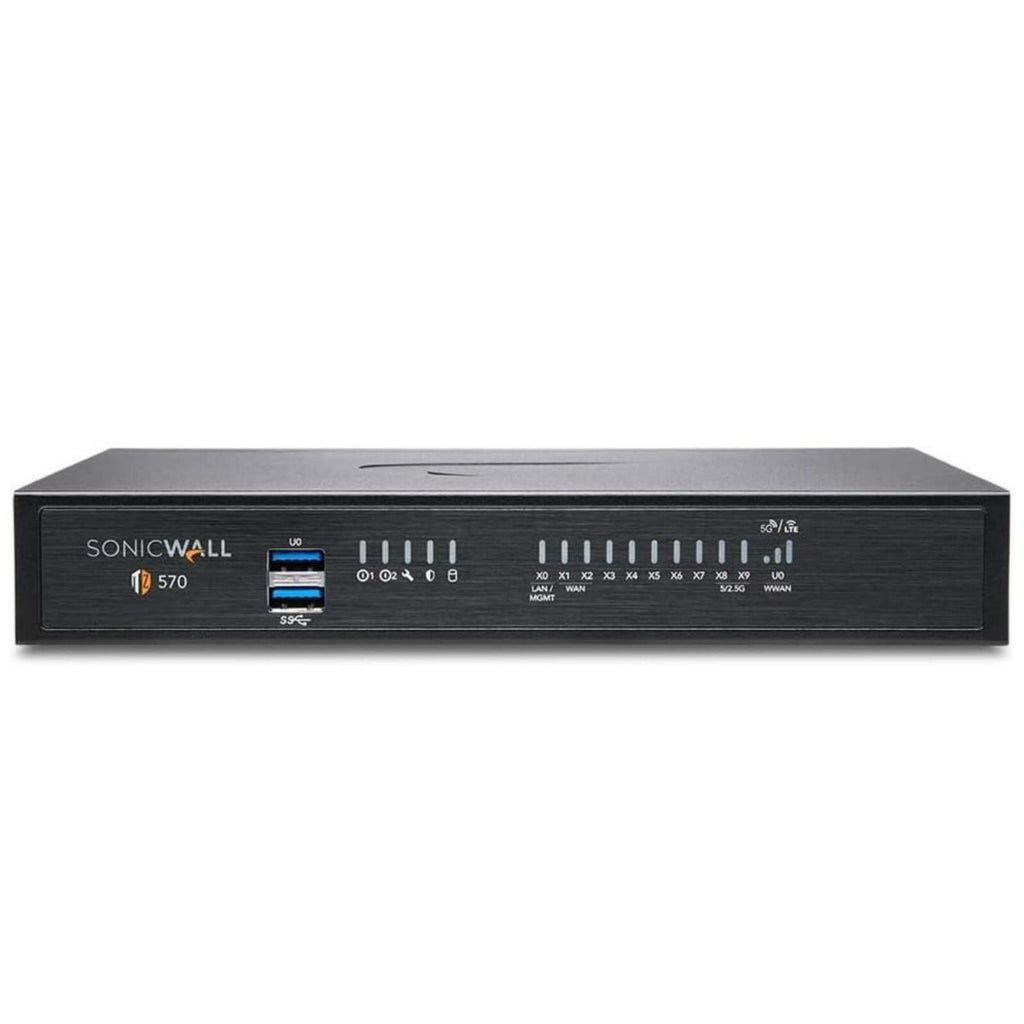

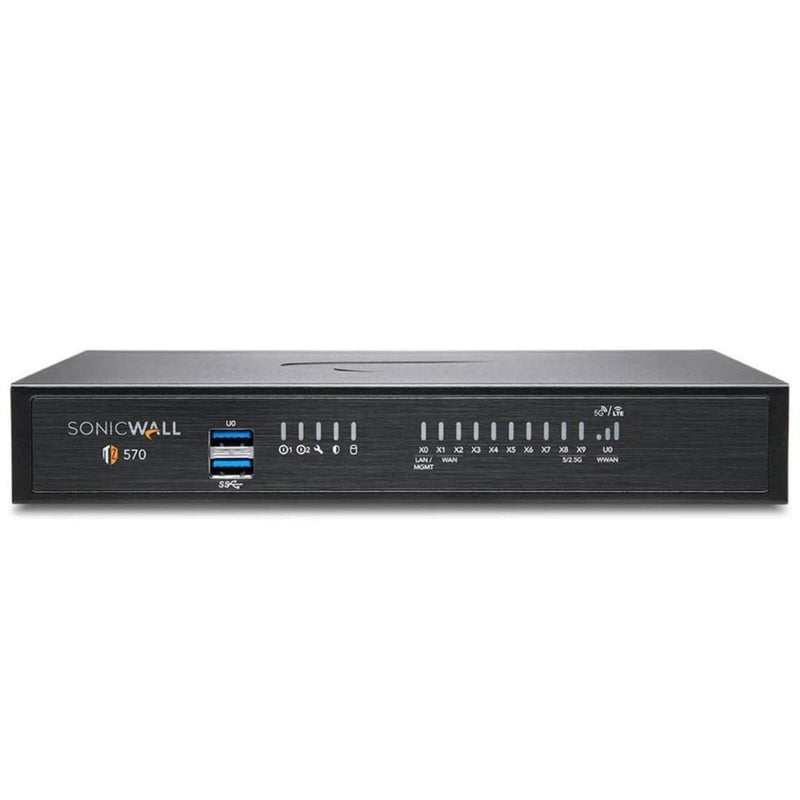

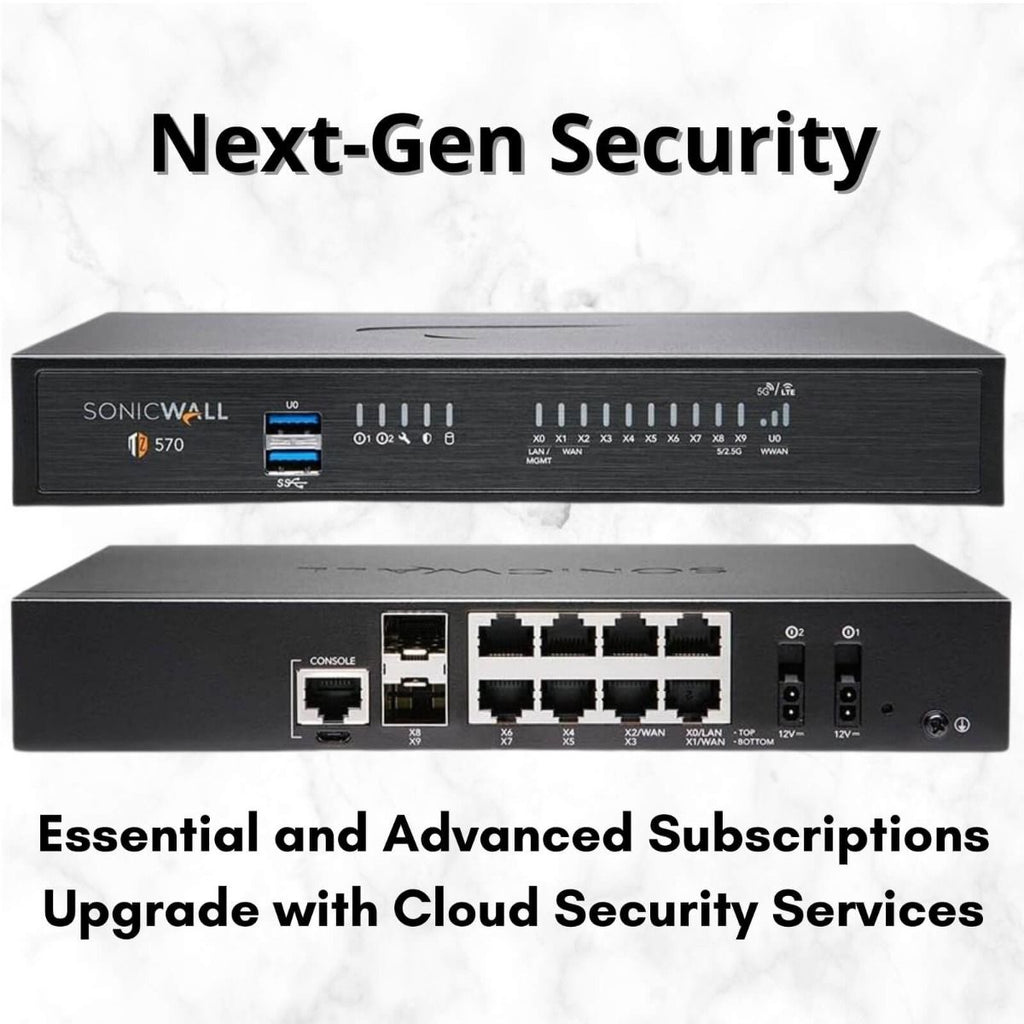

The SonicWall TZ570 is a next-generation firewall designed for small to mid-sized businesses and distributed enterprises. Featuring 5 Gigabit Ethernet interfaces, 10-port high density, and support for SD-Branch and Secure SD-WAN, this appliance delivers industry-leading protection against ransomware, malware, and intrusions.
This SKU includes 1 Year of 8x5 Support, providing business-hour access to technical assistance, firmware updates, and hardware replacement. With Zero-Touch Deployment, cloud or on-premise management, and integration with SonicWall Switches, SonicWave Access Points, and Capture Client, the TZ570 ensures simplified deployment and centralized security management.
Built on SonicOS 7.0, it supports advanced networking, TLS 1.3, high-performance DPI, VPN, and real-time breach prevention. Optional add-on services are available for advanced threat protection, content filtering, and hassle-free management.
| Category | Details |
|---|---|
| Model | SonicWall TZ570 |
| Form Factor | Desktop |

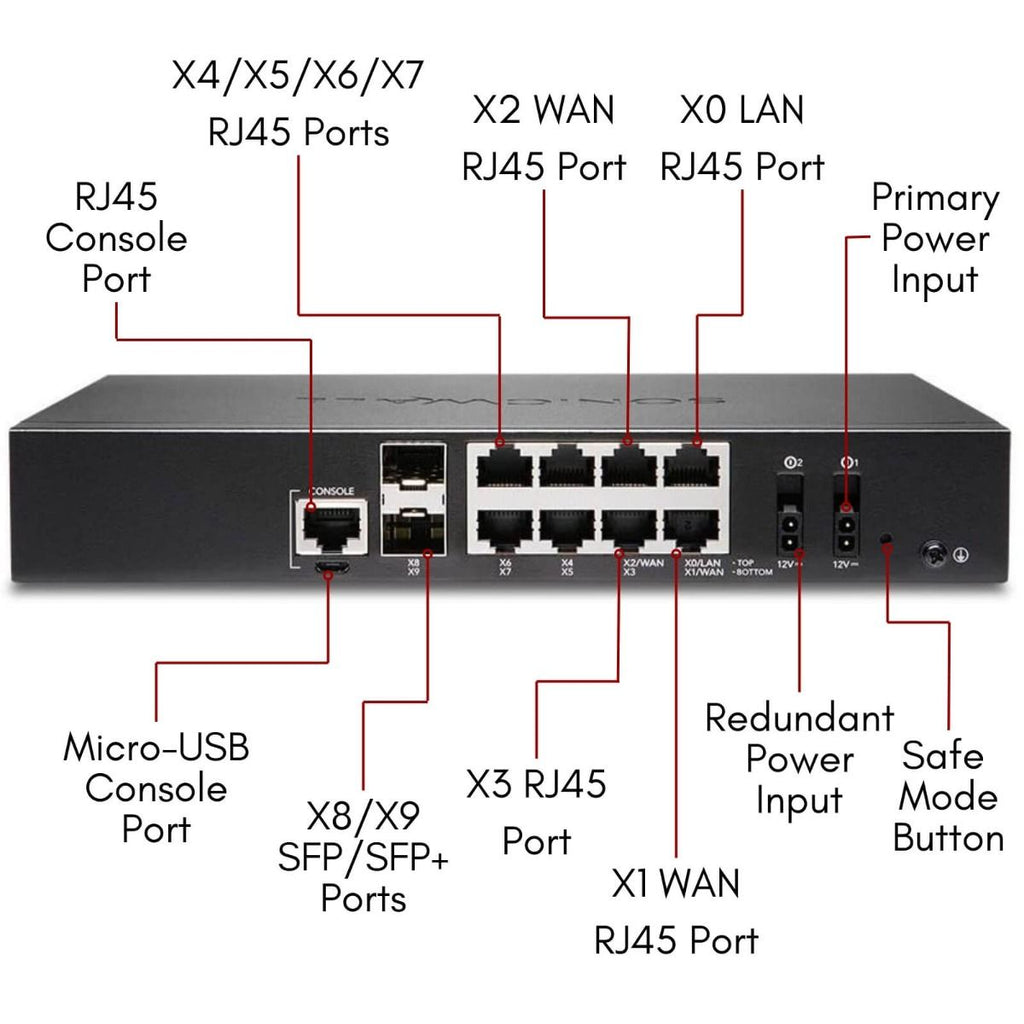

| Interfaces | 8x1GbE, 2x5GbE, 2x USB 3.0, 1x Console |
| Firewall Throughput | 4.0 Gbps |
| Threat Prevention Throughput | 2.0 Gbps |
| Application Inspection | 2.5 Gbps |
| IPS Throughput | 2.5 Gbps |
| Anti-Malware Throughput | 2.0 Gbps |
| DPI SSL (TLS/SSL Decryption) | 750 Mbps |
| VPN Throughput | 1.8 Gbps |
| Max SPI Connections | 1,250,000 |
| Max DPI Connections | 400,000 |
| Concurrent VPN Tunnels | Up to 200 site-to-site |
| SSL VPN Licenses | 2 included (up to 200) |
| Storage Expansion | Slot for up to 256GB module |
| Management | SonicWall NSM, CLI, SSH, Web UI, REST APIs |
| Operating System | SonicOS 7.0 |
| Support Included | 1 Year 8x5 Technical Support (firmware, support, RMA) |
| Dimensions (H x W x D) | 1.38 x 5.91 x 8.85 in (3.5 x 15 x 22.5 cm) |
| Weight | 2.14 lbs (0.97 kg) |
| Power Supply | 60W, with optional redundant PSU |
| Environment | 0°–40°C operating; 5–95% humidity non-condensing |
