Description

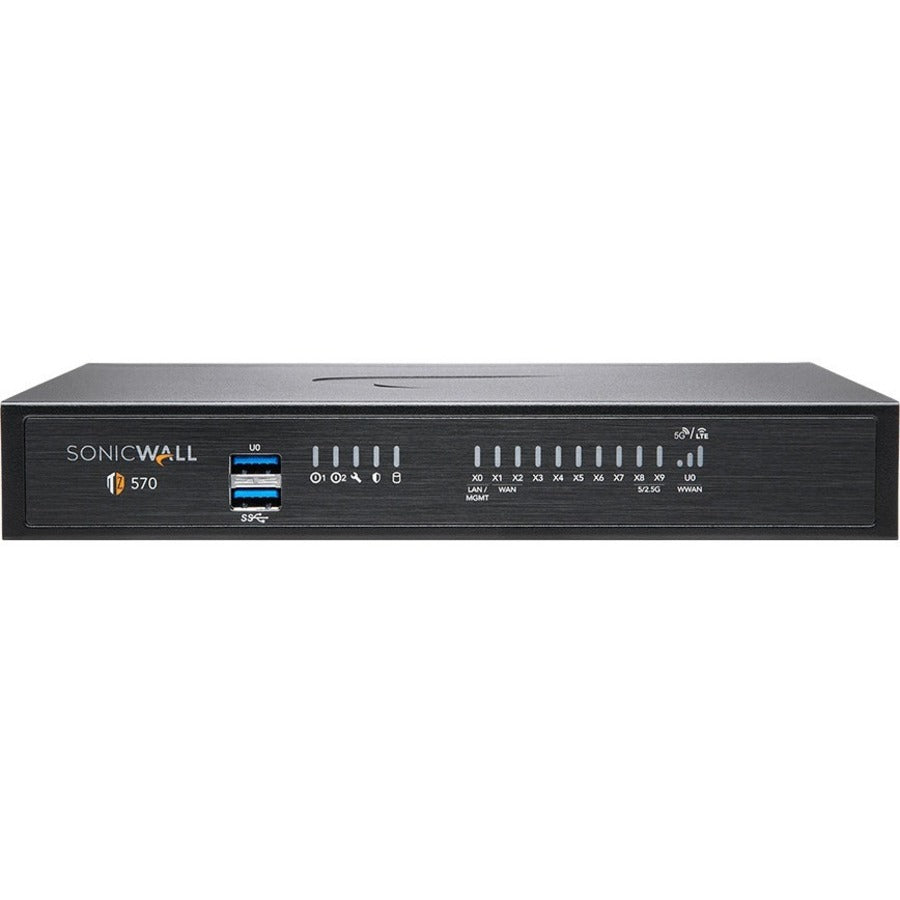

The SonicWall TZ570P High Availability Firewall delivers enterprise-grade security, performance, and reliability in a compact desktop form factor. Designed for small to mid-sized businesses and distributed enterprises, the TZ570P is the first desktop NGFW with multi-gigabit (5 GbE) interfaces and integrated PoE support.
This High Availability (HA) model ensures business continuity by providing a reliable backup appliance that takes over seamlessly in the event of a primary firewall failure. Built on SonicOS 7.0, the TZ570P HA integrates SD-WAN, TLS 1.3 support, advanced VPN, and real-time breach prevention. With 10x1 GbE and 2x5 GbE interfaces, redundant power options, and zero-touch deployment, it delivers high connection capacity, fast DPI performance, and scalability for branch or headquarters environments.
The TZ570P HA provides peace of mind for mission-critical networks, ensuring uptime without compromise.
| Feature | SonicWall TZ570P High Availability |
|---|---|
| SKU | 02-SSC-5655 |
| Form Factor | Desktop (High Availability Unit) |

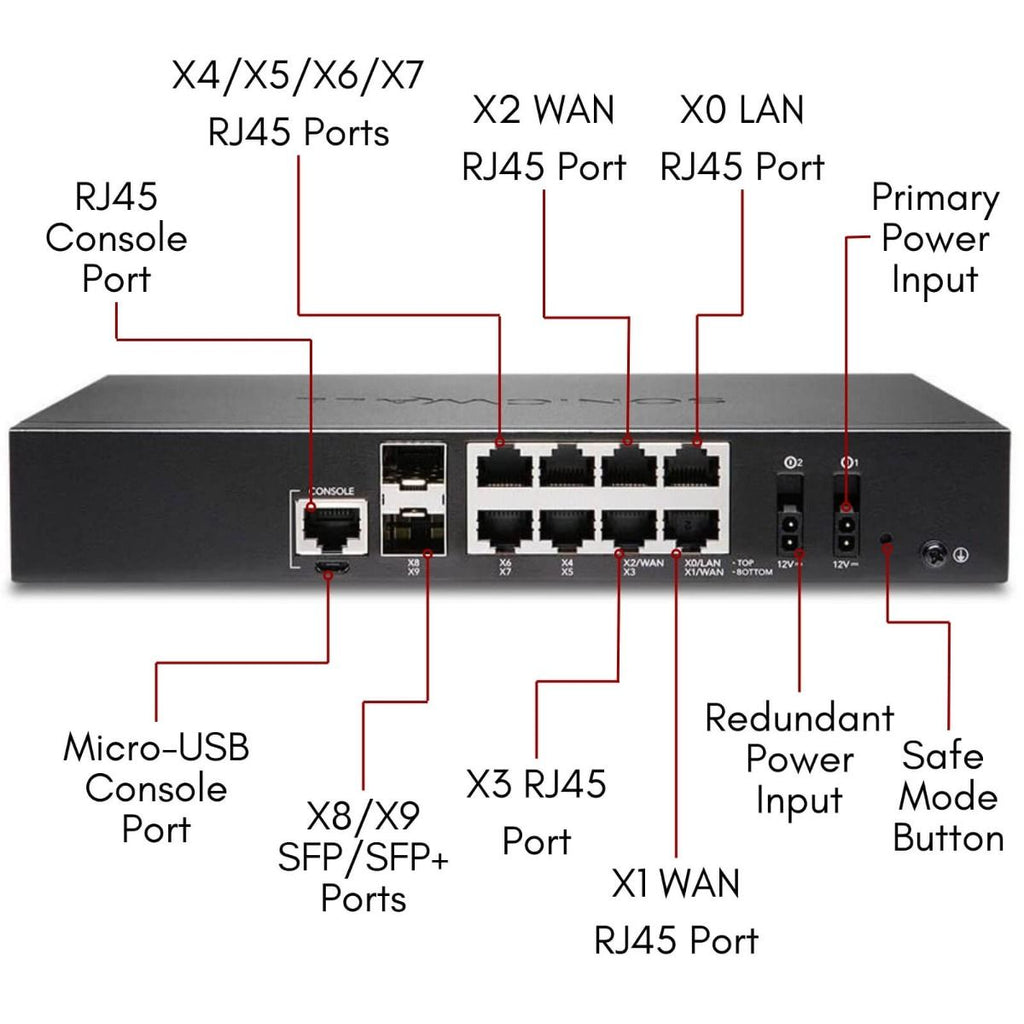

| Interfaces | 10x 1GbE, 2x 5GbE, 2x USB 3.0, 1x Console |
| Power over Ethernet (PoE) | Supports 5 PoE or 3 PoE+ ports |
| Firewall Inspection Throughput | 4.0 Gbps |
| Threat Prevention Throughput | 2.0 Gbps |
| Application Inspection Throughput | 2.5 Gbps |
| TLS/SSL Inspection Throughput (DPI SSL) | 750 Mbps |
| VPN Throughput | 1.8 Gbps |
| Max SPI Connections | 1,250,000 |
| Max DPI SSL Connections | 30,000 |
| Site-to-Site VPN Tunnels | 200 |
| SSL VPN Licenses (Max) | 2 (200 with upgrade) |
| Storage | Expansion slot up to 256GB |
| Management | SonicWall NSM, CLI, SSH, Web UI, GMS, REST APIs |
| Operating System | SonicOS 7.0 |
| High Availability Mode | Active/Standby with State Sync |
| Redundant Power | Supported |
| Dimensions (H x W x D) | 3.5 x 15 x 22.5 cm (1.38 x 5.91 x 8.85 in) |
| Weight | 0.99 kg (2.18 lbs) |
| MTBF | 31.7 years @ 25°C |
| Compliance | FCC Class A, CE, RoHS, UL/cUL, VCCI, WEEE, REACH, ANATEL |
