Description
The SonicWall TZ570P Firewall is a high-performance next-generation firewall designed for small to mid-sized businesses and distributed enterprises. Featuring 10x1GbE and 2x5GbE interfaces with integrated Power over Ethernet (PoE/PoE+ support), it delivers advanced networking and security capabilities in a compact desktop form factor.
Powered by SonicOS 7.0, the TZ570P offers stateful and deep packet inspection, SD-WAN, VPN connectivity, TLS 1.3 decryption, and Zero-Touch Deployment for simplified setup. With expandable storage up to 256GB, redundant power options, and seamless integration with SonicWall Switches, SonicWave access points, and Capture Client, this appliance is built to support evolving security and networking demands.
Please note: This SKU is appliance only and does not include security service subscriptions.
| Feature | Details |
|---|---|
| Product Type | Next-Generation Firewall (Appliance Only) |
| Model | SonicWall TZ570P |
| SKU | 02-SSC-2841 |
| Form Factor | Desktop |
| Operating System | SonicOS 7.0 |

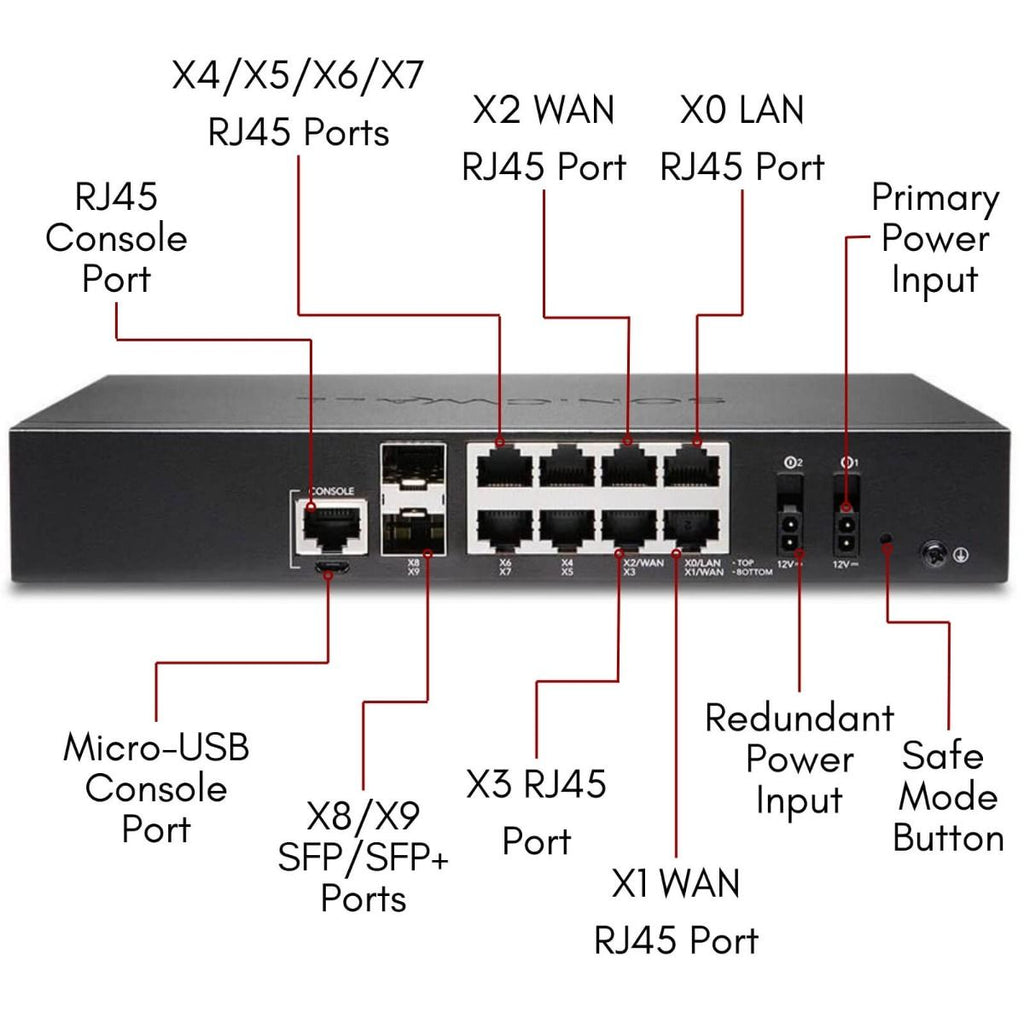

| Interfaces | 10x 1GbE, 2x 5GbE, 2x USB 3.0, 1x Console |
| PoE Support | 5x PoE or 3x PoE+ |
| Firewall Throughput | Up to 4.0 Gbps |
| Threat Prevention Throughput | Up to 2.0 Gbps |
| Application Inspection Throughput | 2.5 Gbps |
| IPS Throughput | 2.5 Gbps |
| Anti-Malware Throughput | 2.0 Gbps |
| TLS/SSL Inspection Throughput | 750 Mbps |
| VPN Throughput (IPSec) | 1.8 Gbps |
| Concurrent Connections (SPI) | 1,250,000 |
| Concurrent Connections (DPI SSL) | 30,000 |
| Max Site-to-Site VPN Tunnels | 200 |
| Max SSL VPN Licenses | 200 (2 included) |
| Storage | Expansion slot up to 256GB |
| Power Supply | 180W (redundant power supported) |
| Dimensions | 3.5 x 15 x 22.5 cm (1.38 x 5.91 x 8.85 in) |
| Weight | 0.99 kg / 2.18 lbs |
| MTBF | 31.7 years @ 25°C |
| Compliance | FCC Class A, CE, VCCI Class A, UL/cUL, RoHS, WEEE, REACH, ANATEL |
