Description

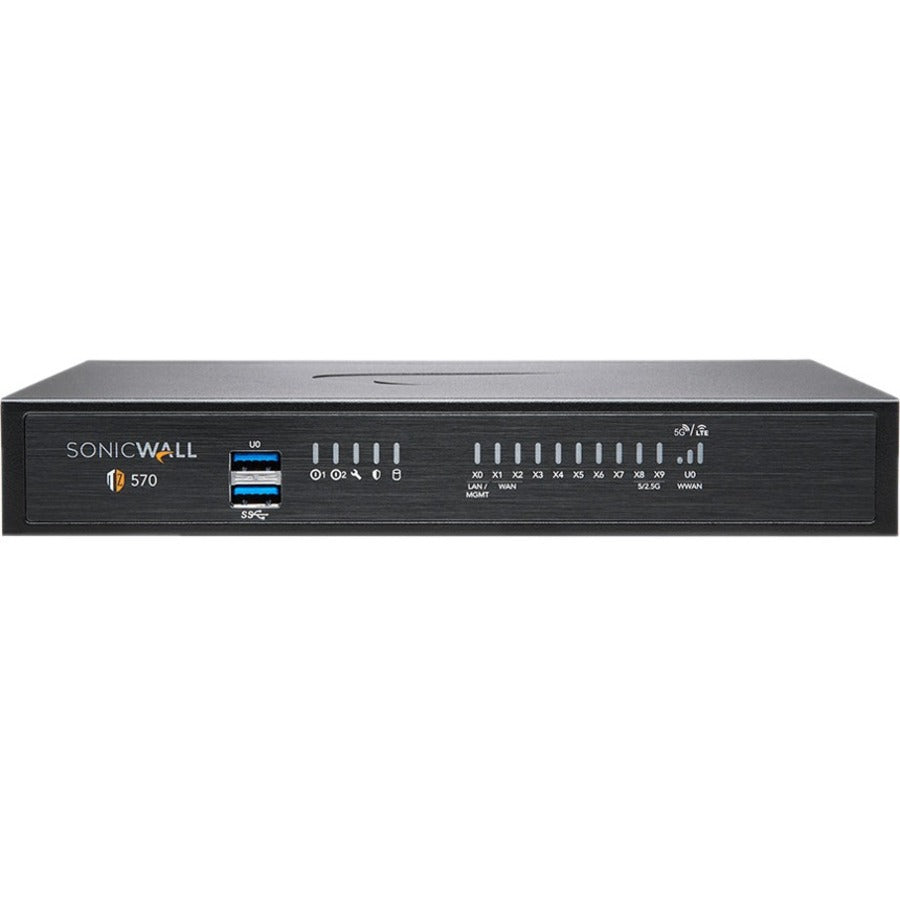

The SonicWall TZ570P TotalSecure Advanced Edition (1-Year) is a next-generation firewall (NGFW) built for small to mid-sized businesses and branch locations needing enterprise-level protection in a compact form factor. With 10x1GbE and 2x5GbE ports, built-in PoE support, and 4.0 Gbps firewall throughput, the TZ570P ensures secure, high-performance networking.
Bundled with the Advanced Edition TotalSecure package, this appliance provides complete protection including Capture ATP with RTDMI, Intrusion Prevention, Gateway Antivirus, Content Filtering, Comprehensive Anti-Spam, Zero-Day Protection, 24x7 Technical Support, Cloud Management, and Advanced Reporting/DNS Filtering.
Zero-Touch Deployment and centralized cloud management simplify installation and scaling, while PoE+ support makes it ideal for powering IP phones, cameras, and wireless access points.
This solution is recommended for businesses seeking a future-proof firewall with deep security integration, productivity controls, and simplified management in a single package.
| Feature | Specification |
|---|---|
| Model | SonicWall TZ570P |
| SKU | 02-SSC-5683 |
| Edition | TotalSecure Advanced Edition (1-Year) |
| Form Factor | Desktop |
| Operating System | SonicOS 7.0 |
| Interfaces | 10x1GbE, 2x5GbE, 2xUSB 3.0, 1xConsole |
| PoE Support | 5 PoE / 3 PoE+ |
| Firewall Throughput | 4.0 Gbps |
| Threat Prevention Throughput | 2.0 Gbps |
| Application Inspection Throughput | 2.5 Gbps |
| IPS Throughput | 2.5 Gbps |
| DPI-SSL Throughput | 750 Mbps |
| VPN Throughput (IPSec) | 1.8 Gbps |
| Concurrent Connections (SPI) | 1,250,000 |
| Max DPI Connections | 400,000 |
| Max DPI-SSL Connections | 30,000 |
| VPN Tunnels | 200 Site-to-Site |
| SSL VPN Licenses | 2 Included (Max 200) |
| Security Services Included | Gateway AV, IPS, CFS, Anti-Spam, Capture ATP w/RTDMI, Zero-Day Protection, Advanced Reporting & DNS Filtering |
| Management | Cloud, SonicWall NSM, Web UI, CLI, REST APIs |
| Deployment | Zero-Touch Deployment, SonicExpress App |
| Recommended For | Small to Mid-Sized Businesses, Branch/SD-WAN |
| Support | 24x7 Technical Support & Firmware Updates |
