Description

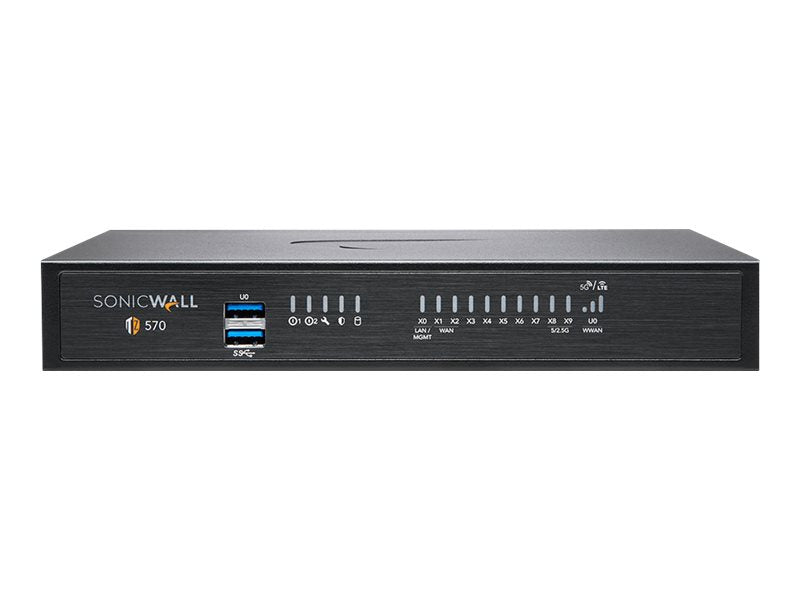

The SonicWall TZ570W is a next-generation security appliance designed for mid-sized businesses and distributed enterprise networks. Equipped with multi-gigabit (1GbE, 5GbE) interfaces and dual-band Wi-Fi 5 (2.4 GHz, 5 GHz), it delivers high-performance security in a compact desktop form factor. With advanced threat prevention, VPN support, and deep packet inspection (DPI), the TZ570W provides reliable protection against modern cyber threats.
This model includes 1 year of 8x5 support service, ensuring access to firmware updates, web support, and expert technical assistance. Featuring a throughput of up to 4 Gbps firewall performance and robust connectivity options, the TZ570W is built to secure branch offices, retail networks, and distributed enterprises with ease.
| Category | Details |
|---|---|
| Manufacturer | SonicWall |
| Model | TZ570W |
| Device Type | Security appliance (desktop) |
| Form Factor | Desktop |
| Interfaces | 6 x 1GbE RJ-45, 2 x WAN 1GbE RJ-45, 2 x SFP+, 2 x USB 3.0, 1 x RJ-45 console, 1 x micro-USB console |
| Connectivity | Wired + Wireless |
| Wi-Fi Standard | Wi-Fi 5 (802.11ac Wave 2), 2.4 GHz / 5 GHz |
| Throughput | Firewall: 4 Gbps, Threat Prevention: 2 Gbps, IPS: 2.5 Gbps, VPN: 1.8 Gbps, SSL Inspection: 750 Mbps |
| VPN Support | 200 site-to-site tunnels, up to 500 IPSec clients, 2 SSL VPN licenses (expandable to 200) |
| Max Connections | 1,250,000 SPI connections, 400,000 DPI connections |
| Management | SonicOS 7.0, NSM (optional) |
| Bundled Services | 1 Year Support Service 8x5 (updates, web/phone support, limited warranty) |
| Security Features | Firewall, IPS, Anti-malware, Content Filtering, Application Control, VPN, WIDS/WIPS, SD-WAN, QoS, DoS/DDoS prevention |
| Antenna | External detachable |
| Dimensions (W x D x H) | 22.5 cm x 15 cm x 3.5 cm |
| Weight | 990 g (shipping: 1.98 kg) |
| Power | External adapter, 60W, optional redundancy |
| Operating Temp | 0°C – 40°C |
| Compliance | FCC, UL, TUV, ICSA, FIPS 140-2 Level 2, RoHS, WEEE, REACH, and more |
| MTBF | 23.3 years |
