Description

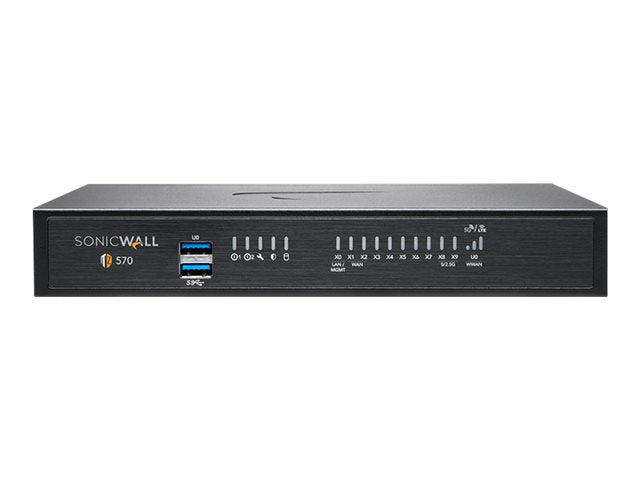

The SonicWall TZ570W is a next-generation firewall (NGFW) designed for mid-sized businesses and distributed enterprises that require advanced security, multi-gigabit connectivity, and integrated wireless. Equipped with 5GbE and 1GbE interfaces, the TZ570W delivers high-performance protection against modern threats. With built-in Wi-Fi 5 (802.11ac Wave 2) supporting both 2.4 GHz and 5 GHz bands, this appliance ensures secure and fast wireless networking.
Compact yet powerful, the TZ570W provides 4 Gbps firewall throughput, advanced DPI (Deep Packet Inspection), and up to 2 Gbps threat prevention. Its robust feature set includes VPN support, SSL inspection, IPS, anti-malware, and SD-WAN capabilities. Ideal for desktop deployment, the TZ570W combines performance, reliability, and ease of management through SonicOS 7.0.
| Category | Details |
|---|---|
| Device Type | Security appliance |
| Form Factor | Desktop |
| Interfaces | 6 x 1GbE RJ-45, 2 x 1GbE RJ-45 (WAN), 2 x SFP+, 2 x USB 3.0, 1 x RJ-45 console, 1 x micro-USB console |
| Networking | Wired + Wireless |
| Wireless Standard | Wi-Fi 5 (802.11ac Wave 2), dual-band (2.4 GHz / 5 GHz) |
| Antenna | External detachable |
| Throughput | Firewall: 4 Gbps, Threat Prevention: 2 Gbps, IPS: 2.5 Gbps, Application: 2.5 Gbps, VPN: 1.8 Gbps |
| Concurrent Connections | 1,250,000 SPI, 400,000 DPI, 50,000 DPI SSL |
| VPN Support | Up to 500 IPSec VPN clients, 200 site-to-site tunnels |
| SSL VPN | 2 included (expandable to 200) |
| Security Features | Firewall, IPS, Anti-malware, SSL Inspection, DoS/DDoS prevention, WIDS/WIPS, Content Filtering, QoS |
| VoIP Protocols | SIP, H.323 v1–v5 |
| Management | SonicOS 7.0, SNMP 2/3, HTTP/HTTPS, SSH, CLI |
| Routing Protocols | OSPF, RIP-1/2, BGP, static IP routing, policy-based routing (PBR) |
| Power | External adapter, 60W provided, 15.3W operational consumption |
| Dimensions (W x D x H) | 22.5 cm x 15 cm x 3.5 cm |
| Weight | 990 g (shipping: 1.98 kg) |
| Operating Environment | 0°C – 40°C, 5–95% RH (non-condensing) |
| Compliance | FCC, UL, TUV GS, CE, FIPS 140-2 Level 2, ICSA Firewall/Antivirus certified, RoHS, WEEE, REACH, and more |
| MTBF | 23.3 years |
