Description

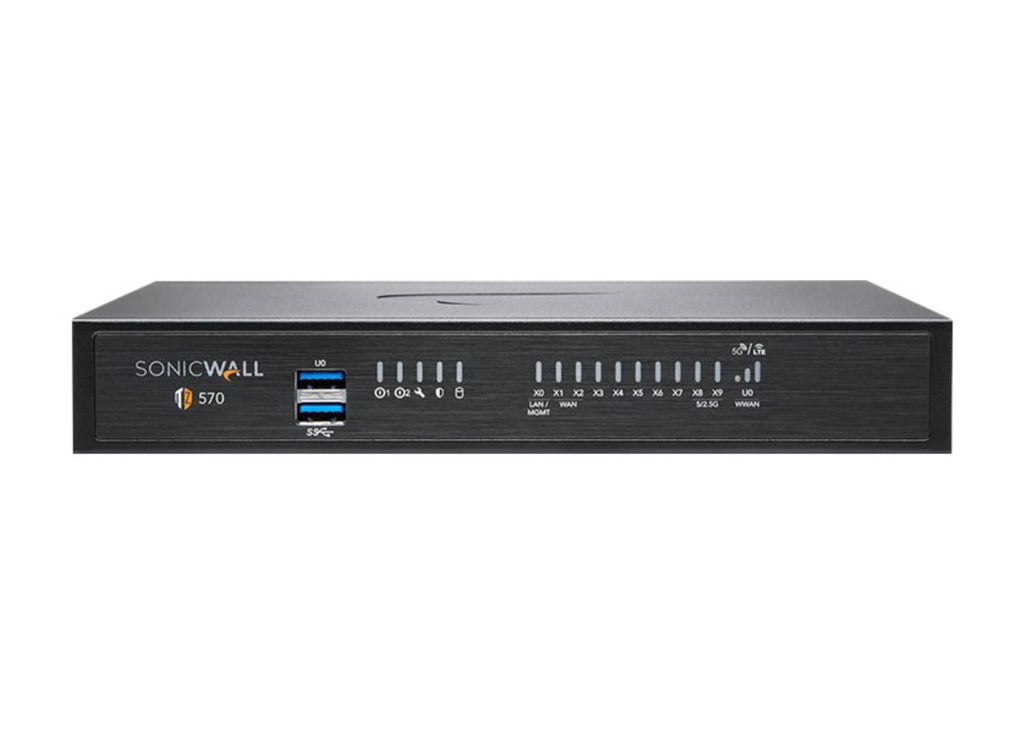

The SonicWall TZ570W Advanced Edition is a next-generation firewall (NGFW) that delivers powerful, enterprise-grade protection in a compact desktop form factor. Designed for mid-sized businesses and distributed enterprises with SD-Branch locations, this security appliance integrates firewalling, switching, and wireless capabilities with robust management tools.
Featuring 5 Gigabit Ethernet interfaces and dual-band Wi-Fi 5 (2.4 GHz / 5 GHz), the TZ570W supports high-speed mobility and growing device connectivity demands. With built-in and expandable storage of up to 256GB, it enables advanced features like logging, reporting, caching, and firmware backup.
Deployment is simplified with Zero-Touch Deployment, enabling simultaneous rollouts across multiple locations. Integrated with SonicOS 7.0, the TZ570W delivers advanced networking, real-time breach detection, and seamless management through the cloud. Combined with SonicWall security services, including Capture ATP with RTDMI™, DPI-SSL, and content filtering, it ensures complete protection against malware, ransomware, and zero-day threats.
| Category | Details |
|---|---|
| Edition | Advanced Edition |
| Form Factor | Desktop |
| Interfaces | 5 x Gigabit Ethernet, 2 x SFP+, 2 x WAN, 6 x LAN, USB 3.0, Console ports |
| Wireless Standard | Wi-Fi 5 (802.11a/b/g/n/ac Wave 2), dual-band (2.4 GHz & 5 GHz) |
| Throughput | Firewall: 4 Gbps, Threat Prevention: 2 Gbps, VPN: 1.8 Gbps, SSL DPI: 750 Mbps |
| Security Features | Capture ATP with RTDMI, Reassembly-Free DPI, IPS, Anti-Malware, VPN, DPI-SSL |
| Management | SonicOS 7.0, Zero-Touch Deployment, Cloud or Firewall Management |
| Storage | Built-in & expandable up to 256GB |
| Power | 60W power supply, optional redundant PSU |
| Dimensions (WxDxH) | 8.9" x 5.9" x 1.4" |
| Weight | 34.92 oz (990 g) |
| Operating Temp. | 32°F to 104°F (0°C to 40°C) |
| Compliance | FCC, CE, UL, RoHS, Common Criteria, FIPS 140-2 L2, ICSA Firewall/AV |
