Description

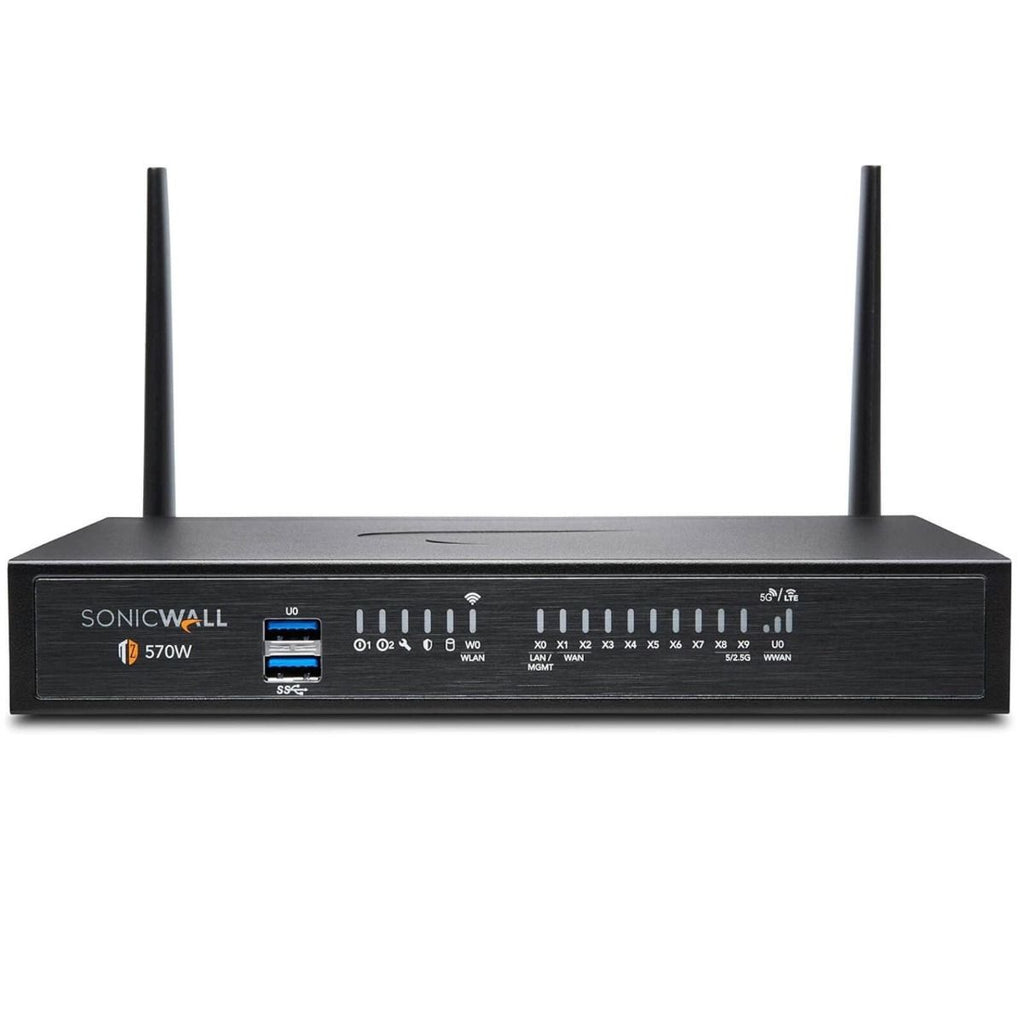

The SonicWall TZ570 Wireless-AC is a compact, high-performance next-generation firewall designed for small to medium-sized businesses and distributed enterprises. Featuring 8x1GbE and 2x5GbE interfaces, built-in wireless-AC, and advanced networking capabilities, it delivers 4.0 Gbps firewall throughput and secure SD-WAN connectivity.
Powered by SonicOS 7.0, the TZ570 provides intuitive management, Zero-Touch Deployment, and seamless integration with SonicWall Switches, SonicWave Access Points, and Capture Client for endpoint security. With expandable storage, redundant power support, and a high connection capacity of up to 1.25 million SPI connections, it is built to handle today’s encrypted traffic and modern cyber threats.
Note: This SKU is the appliance only and does not include security subscriptions or support services.
| Feature | Specification |
|---|---|
| Model | SonicWall TZ570 Wireless-AC |
| Form Factor | Desktop |
| Operating System | SonicOS 7.0 |

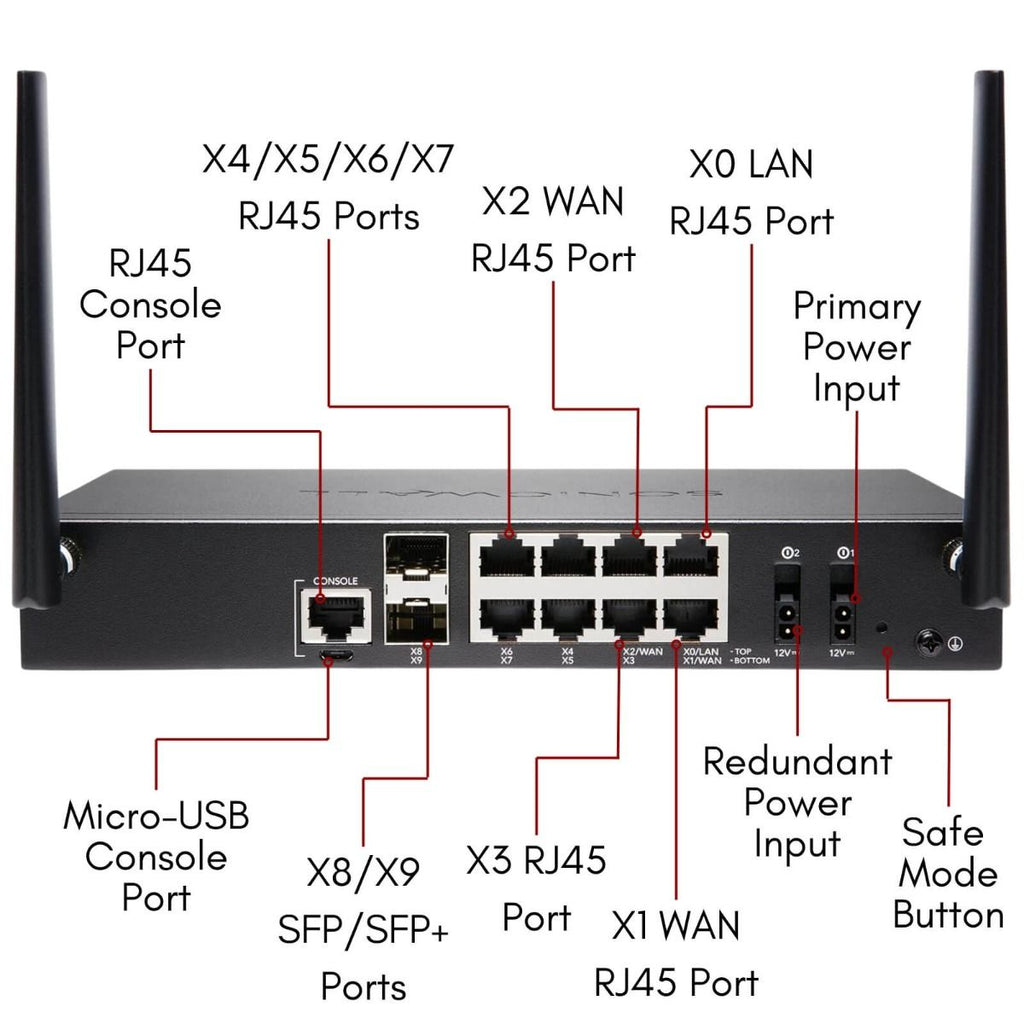

| Interfaces | 8x1GbE, 2x5GbE, 2 USB 3.0, 1 Console |
| Wireless | 802.11 a/b/g/n/ac (dual-band, TZ570W model) |
| Firewall Throughput | 4.0 Gbps |
| Threat Prevention Throughput | 2.0 Gbps (with services) |
| VPN Throughput | 1.8 Gbps |
| Maximum Connections (SPI) | 1,250,000 |
| Maximum Connections (DPI SSL) | 30,000 |
| Site-to-Site VPN Tunnels | 200 |
| SSL VPN Licenses (Default / Max) | 2 / 200 |
| Expansion | Storage expansion slot (up to 256GB) |
| Management | Network Security Manager, CLI, SSH, Web UI, REST APIs |
| Power Supply | 60W (redundant PSU optional) |
| Dimensions | 3.5 x 15 x 22.5 cm (1.38 x 5.91 x 8.85 in) |
| Weight | 0.97 kg / 2.14 lbs |
| Compliance | FCC Class B, CE, UL/cUL, RoHS, ICSA Firewall & AV, IPv6 |
