Description

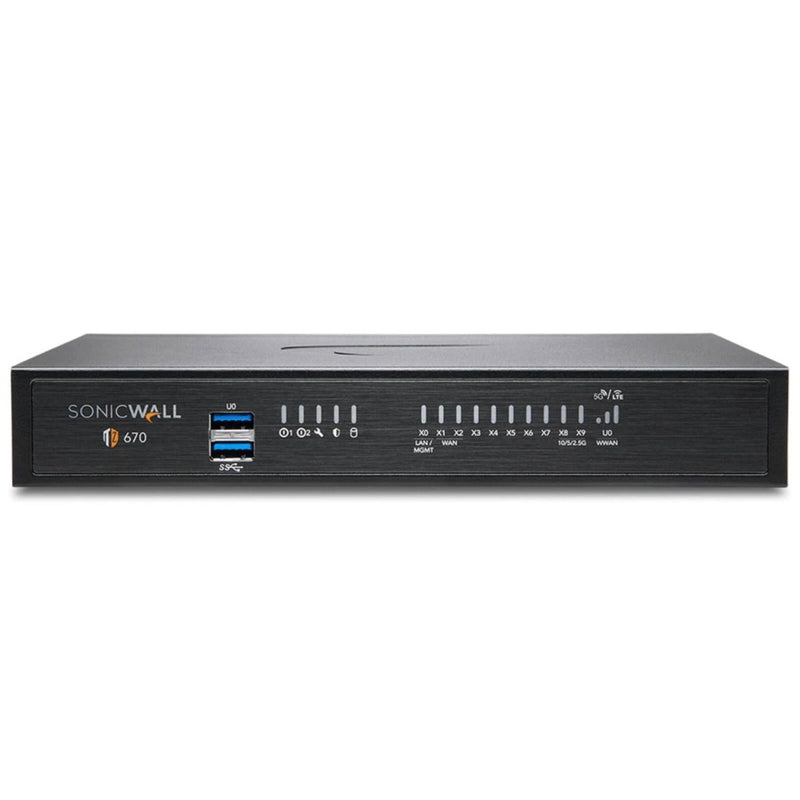

The SonicWall TZ670 High Availability Firewall (SKU: 02-SSC-5654) provides a resilient, always-on security solution designed for mid-sized businesses and distributed enterprises. Built on the SonicOS 7.0 platform, the TZ670 is the first desktop form-factor next-generation firewall with integrated 10 GbE interfaces. This High Availability (HA) unit ensures maximum uptime by acting as a redundant firewall that seamlessly takes over during outages or hardware failures.
With features such as secure SD-WAN, Zero-Touch Deployment, TLS 1.3 support, and single-pane-of-glass management, the TZ670 HA delivers robust performance and scalability. It integrates with SonicWall Switches, SonicWave Access Points, and Capture Client for unified security management. Paired with the primary TZ670 unit, this HA appliance safeguards business continuity and minimizes downtime without additional service subscriptions.
| Category | Specification |
|---|---|
| Model | SonicWall TZ670 High Availability |
| SKU | 02-SSC-5654 |
| Form Factor | Desktop |
| Interfaces | 8x 1GbE, 2x 10GbE, 2x USB 3.0, 1x Console Port |
| Operating System | SonicOS 7.0 |
| High Availability | Active/Standby with state synchronization |
| Firewall Throughput | 5.0 Gbps (primary unit required) |
| VPN Throughput | 2.1 Gbps (with primary unit) |
| Max SPI Connections | 1,500,000 |
| DPI-SSL Throughput | 800 Mbps |
| Storage | 32GB included, expandable up to 256GB |
| Redundant Power | Supported (optional second PSU) |
| Management | SonicWall NSM, Web UI, CLI, REST APIs |
| Certifications | FCC, CE, UL, RoHS, VCCI, FIPS 140-2 (pending) |
| Dimensions (W x D x H) | 5.91 x 8.85 x 1.38 in (15 x 22.5 x 3.5 cm) |
| Weight | 2.14 lbs (0.97 kg) |
| Use Case | High Availability pairing with a primary TZ670 firewall |
