Description

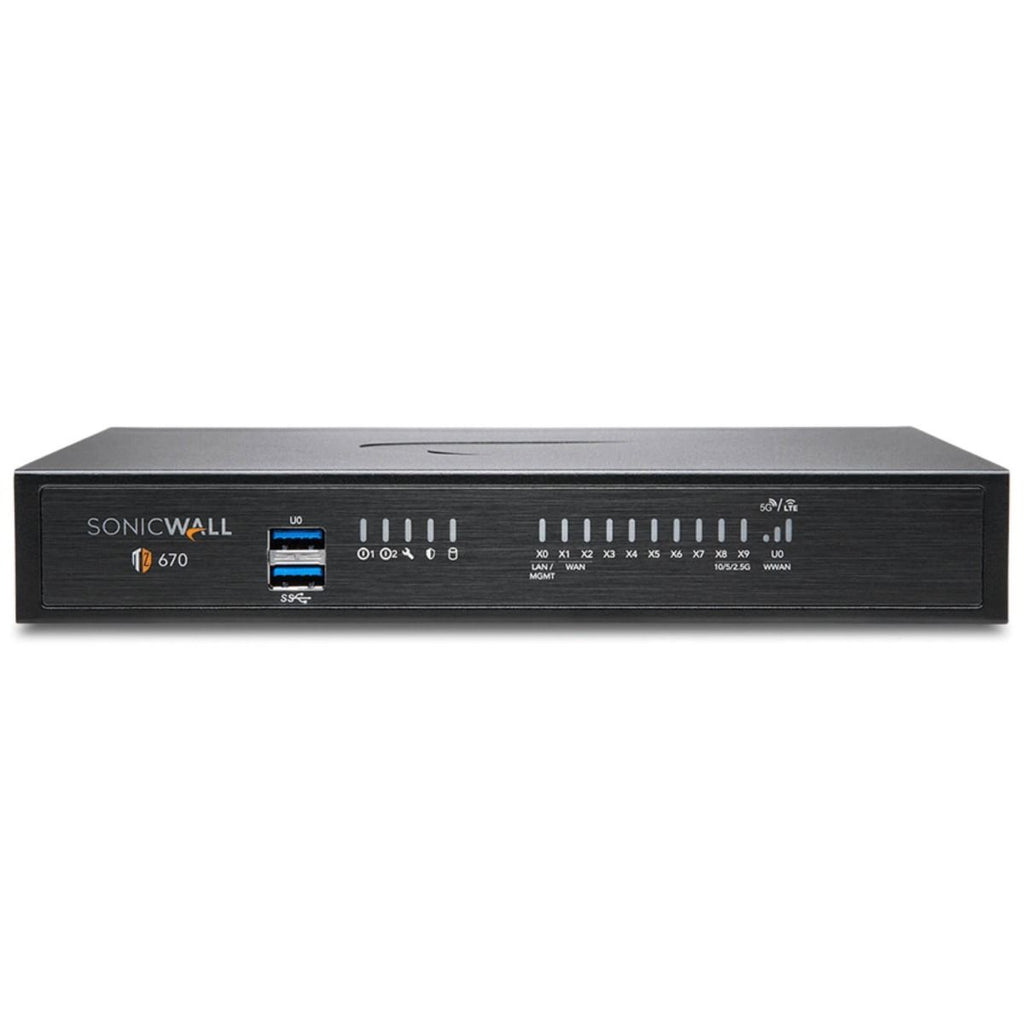

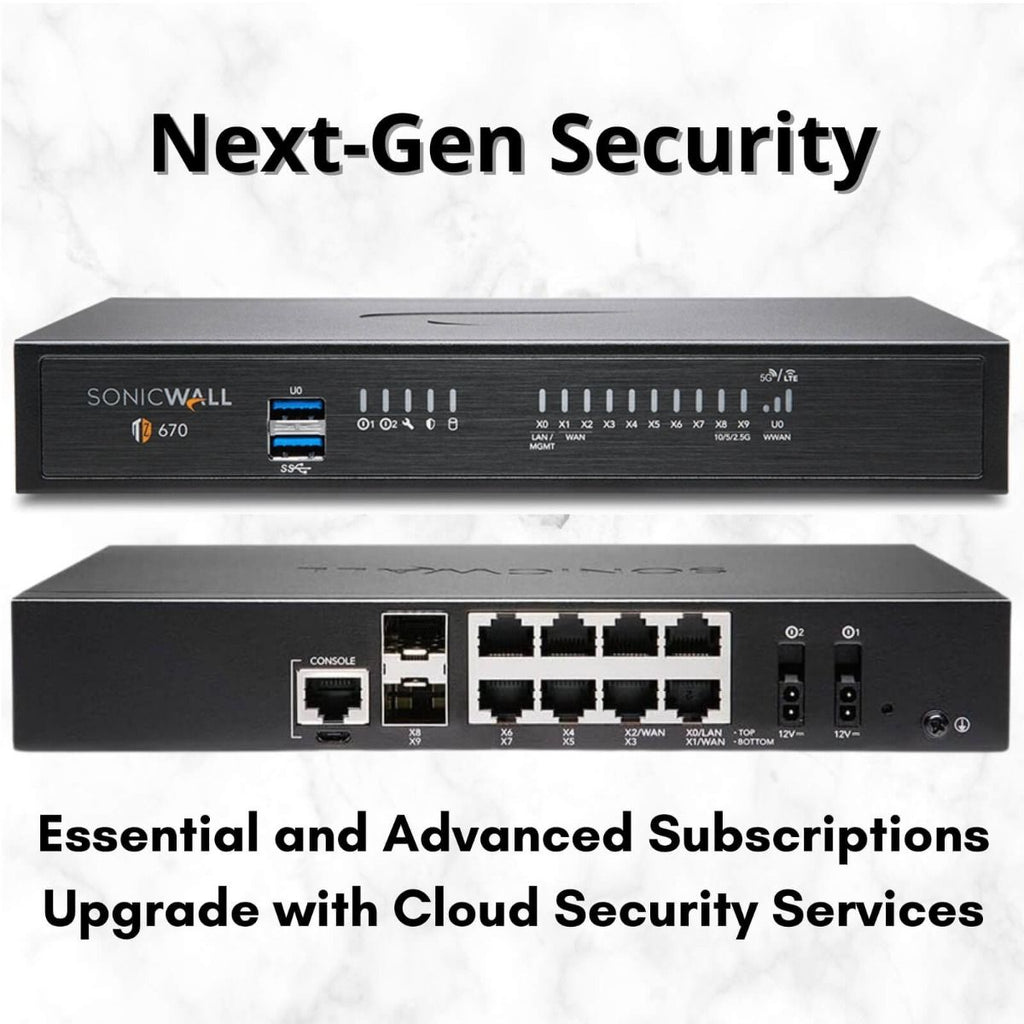

The SonicWall TZ670 Advanced Edition is a next-generation firewall (NGFW) designed for mid-sized businesses and distributed enterprises. With 10 Gigabit Ethernet interfaces and a compact desktop form factor, the TZ670 delivers high performance, scalability, and robust security features. Equipped with SonicOS 7.0, it offers advanced threat protection, SD-WAN capabilities, deep packet inspection, and real-time breach prevention.
This appliance supports the SonicWall Secure Upgrade Plus Program (3-year option), ensuring your network remains protected with the latest features and updates. With built-in and expandable storage, the TZ670 enables enhanced logging, reporting, caching, and firmware backup—ideal for organizations facing the demands of encrypted traffic, high-speed mobility, and growing connected devices.
| Category | Details |
|---|---|
| Brand | SonicWall |
| Model | TZ670 – Advanced Edition |
| Form Factor | Desktop |

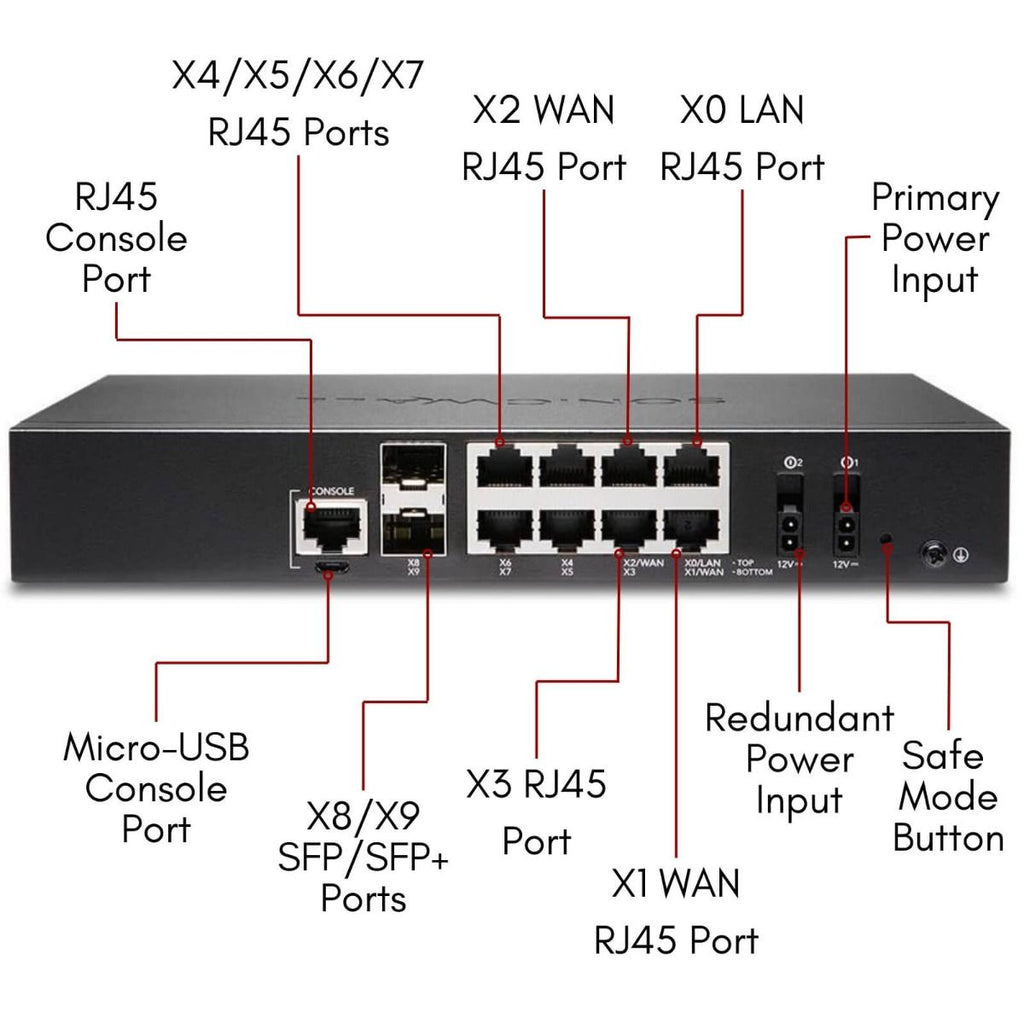

| Interfaces | 10 ports total – 2 x WAN (RJ-45), 6 x LAN (RJ-45), 2 x SFP+, 2 x USB 3.0, 2 x Console (RJ-45 & micro-USB) |
| Connectivity | 10GbE, Gigabit Ethernet, Wired |
| Throughput | Firewall: 5 Gbps, IPS: 3 Gbps, Threat Prevention: 2.5 Gbps, VPN (IPSec): 2.1 Gbps, SSL/TLS Decryption: 800 Mbps |
| Connections | 1,500,000 SPI, 500,000 DPI, 75,000 DPI-SSL |
| VPN Capacity | 250 Site-to-Site Tunnels, 500 IPSec Clients (10 included), 250 SSL VPN licenses (2 included) |
| Storage | 32GB SSD (expandable) |
| OS / Software | SonicOS 7.0 with Advanced Protection Service Suite (3 years) |
| Features | SD-WAN, Deep Packet Inspection (DPI), Anti-Spam, Content Filtering, DoS/DDoS Protection, Bandwidth Control, VLAN Trunking, VPN Support |
| Security Protocols | AES-128/192/256, Triple DES, SHA-1, MD5, FIPS 140-2 Level 2 Certified |
| Management | CLI, HTTP/HTTPS, SSH, SNMP v2/3 |
| Routing Protocols | BGP, OSPF, RIP-1/2, Static, Policy-based Routing |
| VoIP Support | Yes (H.323, SIP) |
| Power | 60W provided, 13.1W operational consumption |
| Dimensions (W x D x H) | 8.9 x 5.9 x 1.4 in (22.5 x 15 x 3.5 cm) |
| Weight | 34.21 oz (990 g) |
| Operating Range | Temp: 32°–104°F (0°–40°C), Humidity: 5–95% (non-condensing) |
| Certifications | FCC Class B, UL, CE, RoHS, REACH, ICSA Firewall/Antivirus Certified, FIPS 140-2 L2, Common Criteria |
