Description
The Soundweb London BLU-120 Audio Processor (BSSBLU120M-US) delivers powerful, scalable digital signal processing for installed sound applications. Designed with configurable I/O and a high-bandwidth, fault-tolerant 256-channel BLU link digital audio bus, the BLU-120 forms the core of flexible and highly reliable audio systems.
Configured using HiQnet™ Audio Architect’s intuitive drag-and-drop environment, the BLU-120 provides system designers with a rich palette of logic objects and DSP tools for tailored system architecture. The integrated BLU link supports 256 channels of low-latency digital audio over standard Cat 5e cabling with distances up to 100 meters between devices. With fiber optic media converters, transmission distances can exceed 40km.

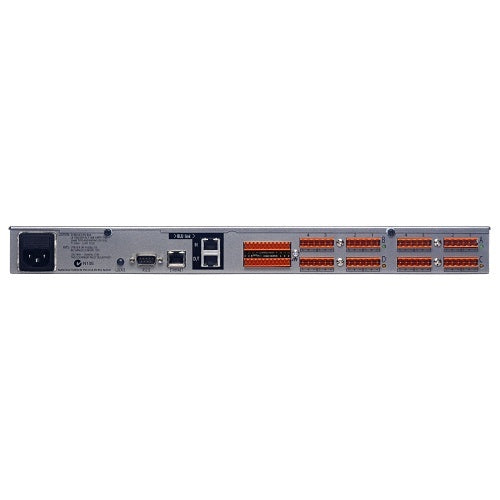

Four rear-panel card slots support a wide range of modular I/O configurations. Each slot accepts one of six available I/O card types—Analog Input, Analog Output, Digital Input, Digital Output, AEC Input, or Telephone Hybrid—each providing four channels per card. Analog input cards feature software-configurable gain up to +48dB in 6dB steps and selectable phantom power per channel. Digital cards support AES/EBU and S/PDIF formats with flexible clocking and synchronization options.

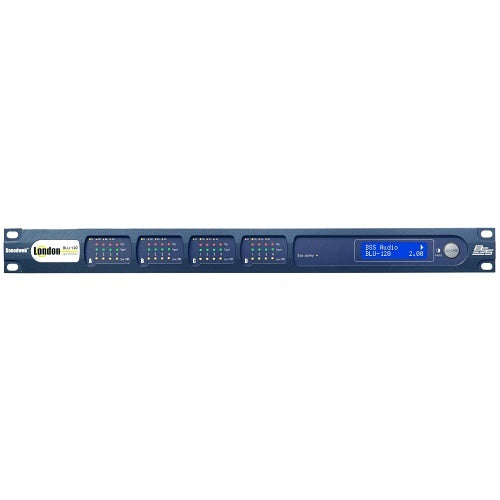

Front panel LED indicators provide real-time monitoring of Phantom Power, Sync, Signal Present, and Clip status without requiring a PC. The integrated display offers device name, firmware version, IP address, subnet mask, and time information. A bi-directional locate function enables quick device identification within HiQnet Audio Architect.
With 12 control inputs and 6 logic outputs, the BLU-120 integrates seamlessly with GPIO-compatible devices and third-party control systems. EN 54-16 compliance ensures suitability for life safety and emergency voice alarm applications.
The Soundweb London BLU-120 is engineered for reliability, flexibility, and advanced system control in professional AV installations.
| Specification | Details |
|---|---|
| Brand | Soundweb London |
| Model | BLU-120 |
| SKU | BSSBLU120M-US |
| Device Type | Configurable Digital Signal Processor |
| BLU link Bus | 256-channel fault-tolerant digital audio bus |
| Maximum Distance (Cat 5e) | 100 meters between devices |
| Maximum Distance (Fiber) | Over 40 km with media converters |
| Configuration Software | HiQnet™ Audio Architect |
| I/O Card Slots | 4 modular card slots |
| Supported I/O Cards | Analog Input, Analog Output, Digital Input, Digital Output, AEC Input, Telephone Hybrid |
| Channels per Card | 4 channels per card |
| Analog Input Gain | Software configurable up to +48dB in 6dB steps |
| Phantom Power | Software selectable per channel |
| Digital Audio Formats | AES/EBU and S/PDIF |
| Front Panel Indicators | Phantom Power, Sync, Signal Present, Clip |
| Display Information | Device Name, Type, Firmware, Time, IP Address, Subnet Mask |
| Control Inputs | 12 |
| Logic Outputs | 6 |
| Compliance | EN 54-16 compliant |
| Application | Installed sound systems, life safety applications |
