Description

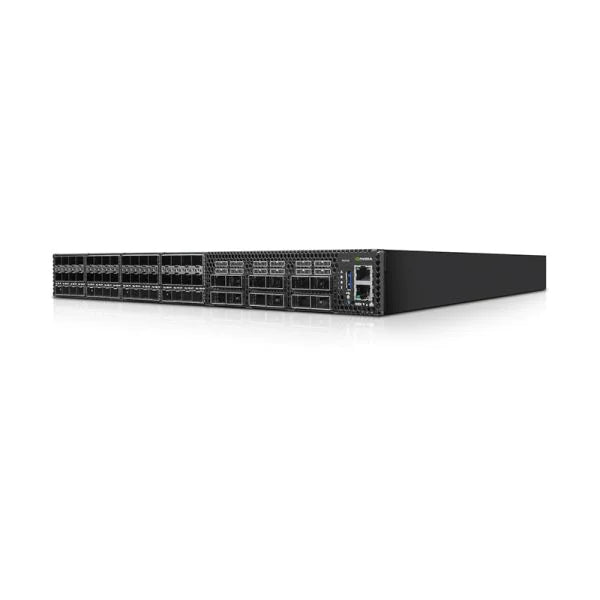

The NVIDIA MSN3420-CB2FC is a 1U top-of-rack Open Ethernet switch built on the Spectrum-2 ASIC, with NVIDIA Cumulus Linux pre-installed. It has 48 SFP28 ports for 10/25GbE and 12 QSFP28 ports for up to 100GbE uplinks. This makes it a cost-effective way to move host connectivity from 10G to 25G while using QSFP28 for leaf-spine designs. It handles up to 3.58 billion packets per second with 425ns latency and a fully shared 42MB packet buffer.
Spectrum-2 provides What Just Happened (WJH) telemetry, hardware-accelerated histograms, INT-ready hardware, and streaming telemetry for deep network visibility. It also supports RoCE, single-pass VXLAN routing, IPv6 segment routing, cloud-scale NAT, and a programmable pipeline with deep packet inspection up to 512B. This model ships with a dual-core x86 CPU, two 1+1 redundant hot-swappable AC power supplies, N+1 redundant hot-swappable fans, P2C airflow, and a rail kit.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | NVIDIA |
| MPN | MSN3420-CB2FC |
| Product Type | 1U Open Ethernet Switch |
| ASIC | NVIDIA Spectrum-2 |
| Operating System | NVIDIA Cumulus Linux (pre-installed) |
| Ports | 48 x SFP28 (10/25GbE) + 12 x QSFP28 (up to 100GbE) |
| Max 100GbE Ports | 12 |
| Max 50GbE Ports | 24 |
| Max 40GbE Ports | 12 |
| Max 25GbE / 10GbE / 1GbE Ports | 48 + 48 |
| Packet Rate | 3.58Bpps |
| Latency | 425ns |
| Packet Buffer | 42MB fully shared |
| CPU | Dual-core x86 |
| System Memory | 8GB |
| SSD | 32GB |
| Management Ports | 1 x 100/1000Mb/s, 1 x RJ45 serial, 1 x USB |
| Key Features | WJH telemetry, RoCE, VXLAN routing, IPv6 segment routing, NAT, MLAG, 64-way ECMP, 512K shared forwarding entries |
| Power Supplies | 2 x AC, 1+1 redundant, hot-swappable |
| Input | 100–264VAC, 50–60Hz, 2.9–4.5A |
| Fans | 5, N+1 redundant, hot-swappable |
| Airflow | P2C (connector-side outlet) |
| Dimensions (H x W x D) | 1.72 x 16.84 x 17 in (44 x 428 x 432mm) |
| Weight | 8.5kg (18.73lb) |
| Included | Rail kit |
| Operating Temperature | 0°C to 40°C |
| Non-Operating Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 85% |
| Operating Altitude | 0–3050m |
| Safety | CB, CE, cTUVus, CU |
| EMC | CE, ICES, FCC, RCM, VCCI |
| Compliance | RoHS |
| Warranty | 1-year limited hardware return-and-repair |
