Description

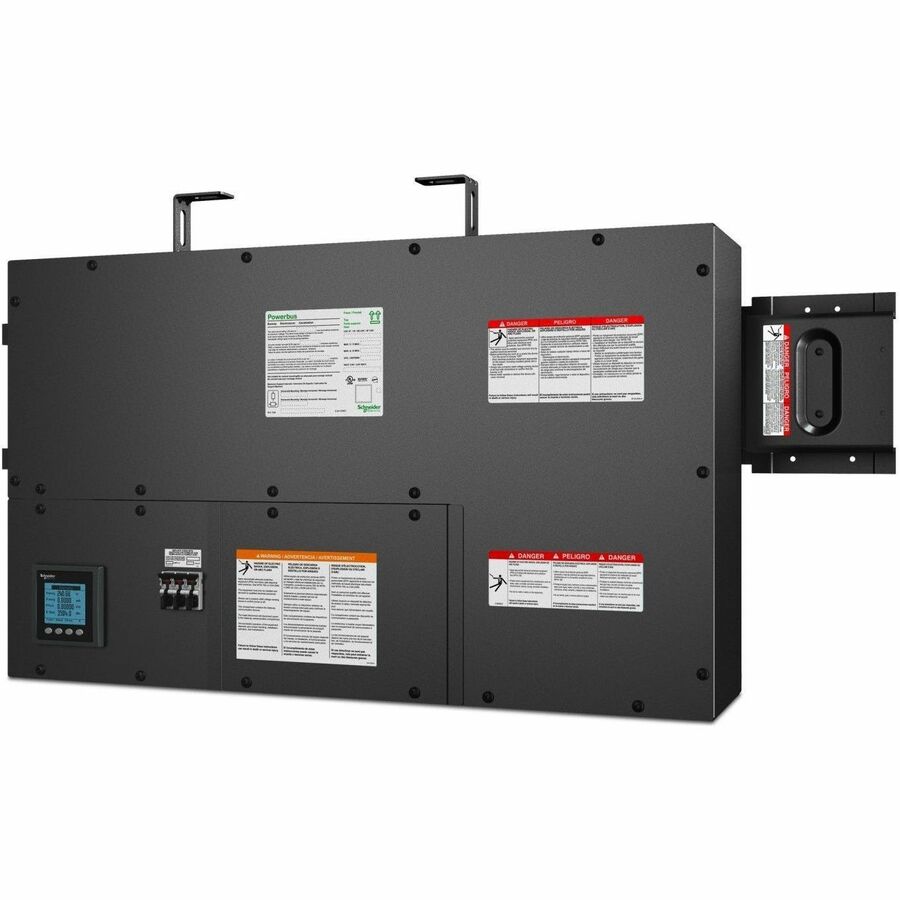

The APC Powerbus Tap Box (PBCF4A225ATBM4B) is a high-capacity power distribution solution designed for 3-phase 4-wire systems at 415Y/240V. With a 225A current rating and 4A busbar configuration, this tap box includes a pre-installed PM5350 energy meter for precise power monitoring. It features silver-plated copper busbars, an IP40-rated black aluminum enclosure, and full compatibility with APC’s modular Powerbus system. Ideal for scalable, monitored data center power delivery.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | PBCF4A225ATBM4B |
| Product Type | Tap Box |
| System Voltage | 415Y/240V AC |
| Current Rating | 225 Amps |
| Phases / Wires | 3-Phase, 4-Wire (100% Neutral) |
| Busbar Configuration | 4A (L1 + L2 + N + L3) |
| Busbar Material | Silver-plated Copper |
| Ground Bus | Integral ground (50% capacity) |
| Included Meter | PM5350 Digital Power Meter |
| Wire Gauge Compatibility | AWG 10 to AWG 2/0 (Ground); AWG 6 to 300 kcmil (P+N) |
| Enclosure Material | Painted Black Aluminum |
| Ingress Protection Rating | IP40 |
| Environmental Compliance | EU RoHS (with exemptions), California Prop 65 |
| Dimensions / Weight | Approx. 20.87 kg / 45.99 lbs |
| Product Category | 100A & 225A Busway Lengths & Fittings |
| Returnable | No |
