Description

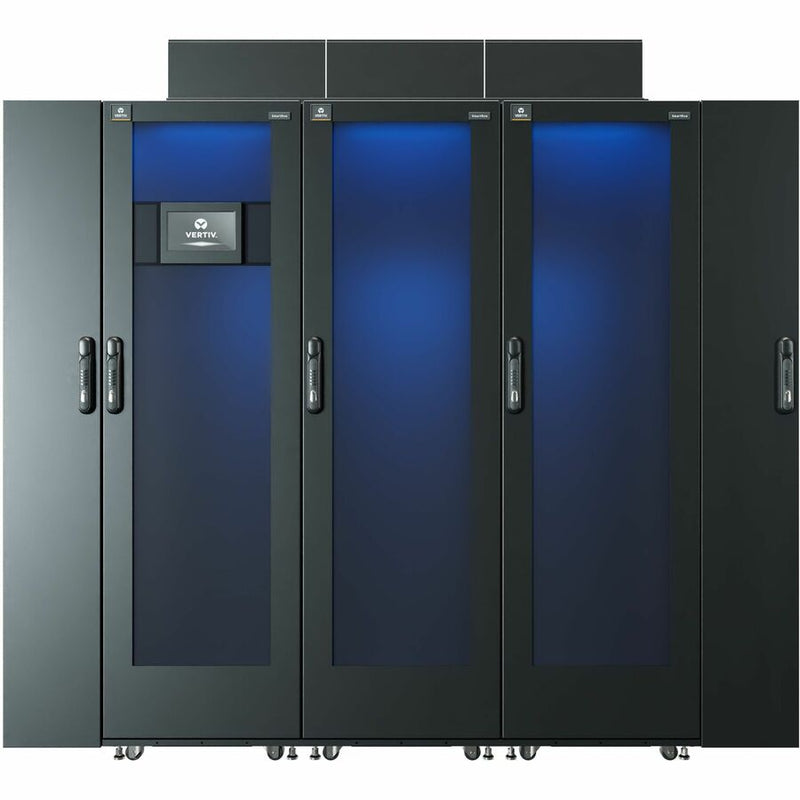

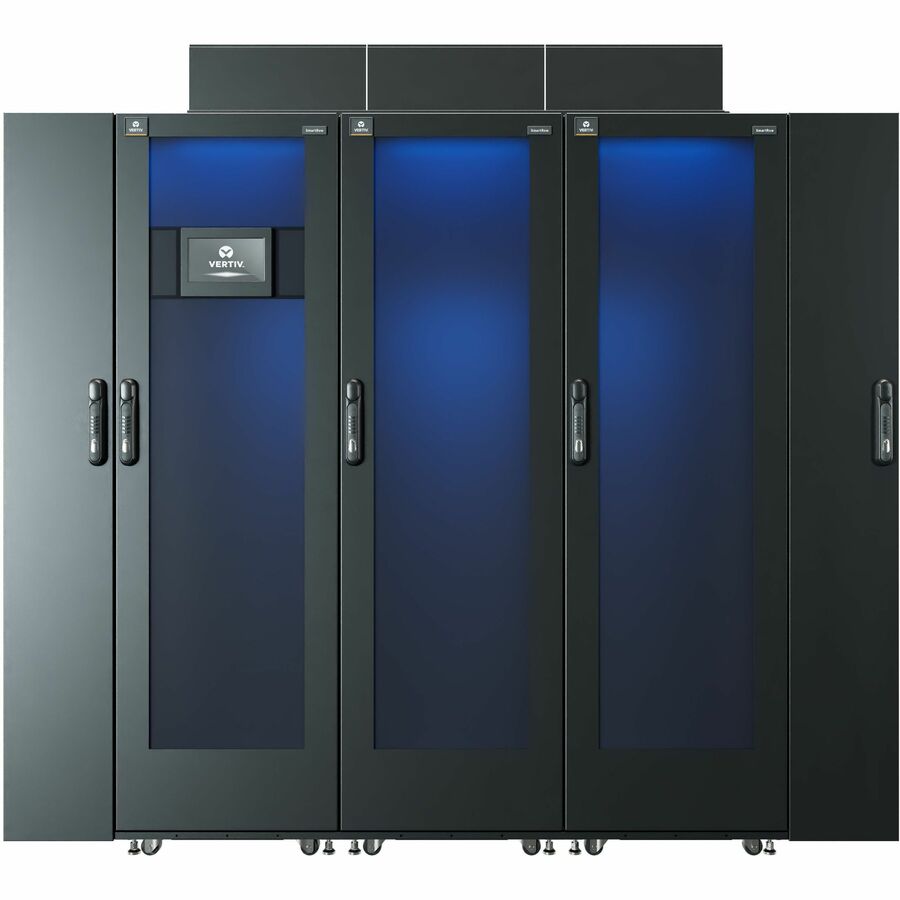

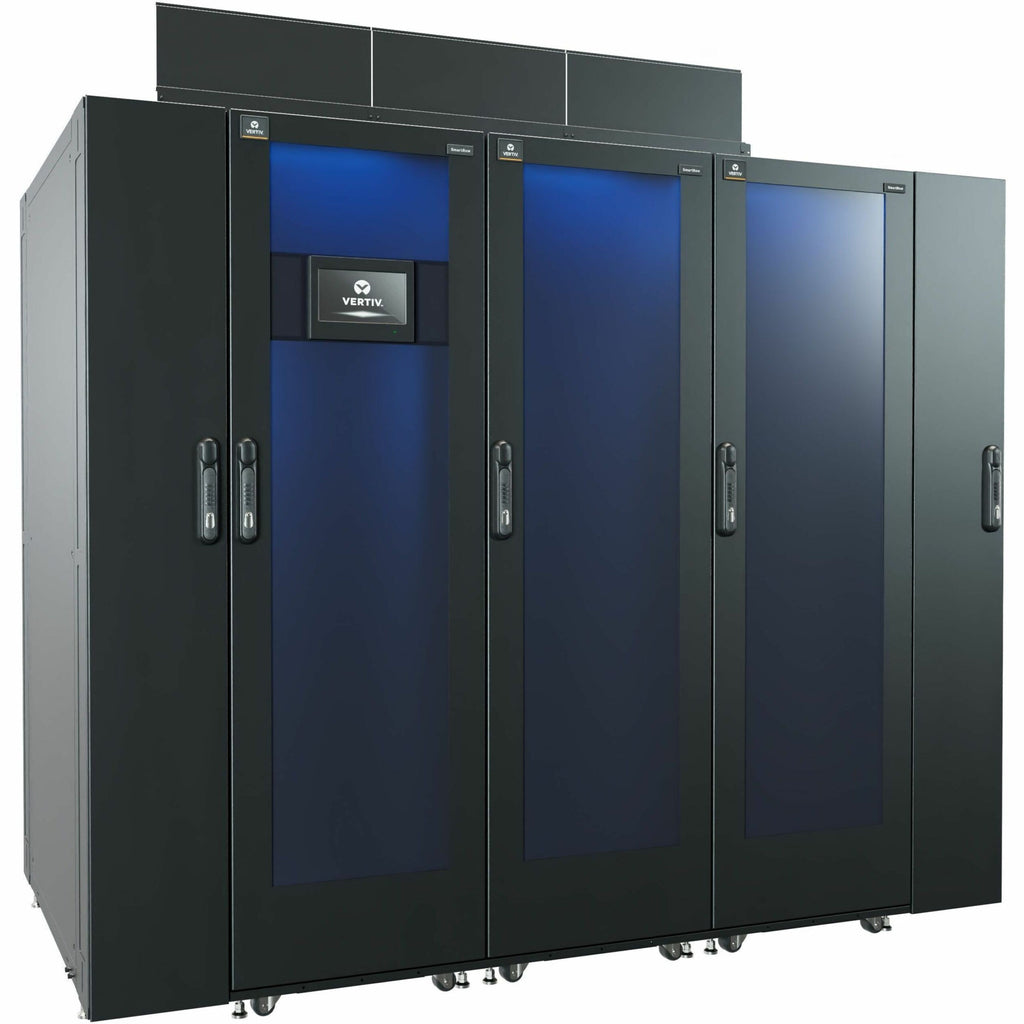

The Vertiv™ SmartRow™ 2 (SR2N02010FAA1) is an integrated, all-in-one data center solution designed for edge and remote IT environments. Supporting up to 10 kW IT load, it features two IT racks, dual in-row cooling units, and redundant power infrastructure, providing a fully enclosed hot and cold aisle containment system. With built-in monitoring, power management, and cable trays, this turnkey micro data center ensures high availability, efficiency, and rapid deployment with minimal on-site construction.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Model Number | SR2N02010FAA1 |
| Product Series | SmartRow™ 2 |
| Rack Capacity | 2 x IT Racks |
| Power Capacity | 10 kW |
| Power Input | 208V, 3-Phase, 4-Wire + PE |
| Cooling | 2 x In-row cooling units (redundant) |
| Redundancy | UPS, Cooling, and rPDU redundancy |
| Containment | Hot and Cold Aisle Containment |
| Main Input Breaker Size | 100A |
| System Dimensions (L x H x D) | 2400 mm x 2271 mm x 1400 mm (94.5” x 89.4” x 55.2”) |
| System Weight | 2112 kg (4656 lbs) |
| Environment | Indoor; 5°C to 40°C, up to 80% RH |
| Minimum Staging Area | 17.67 m² (190.2 ft²) |
