Description

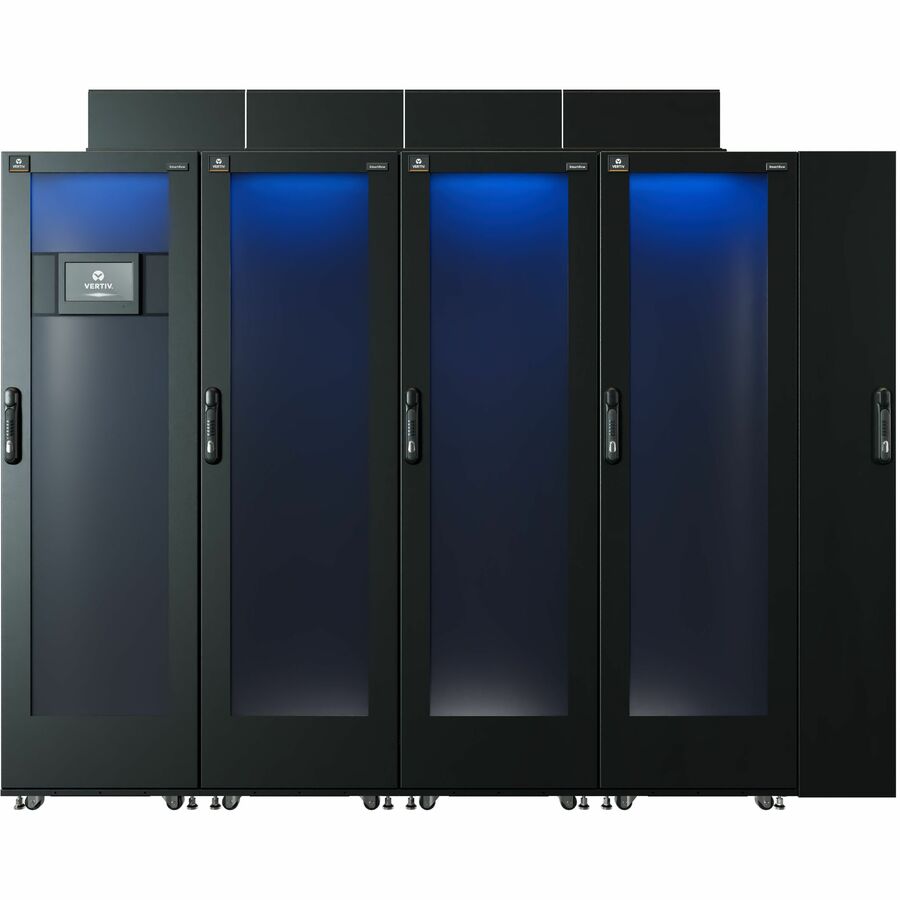

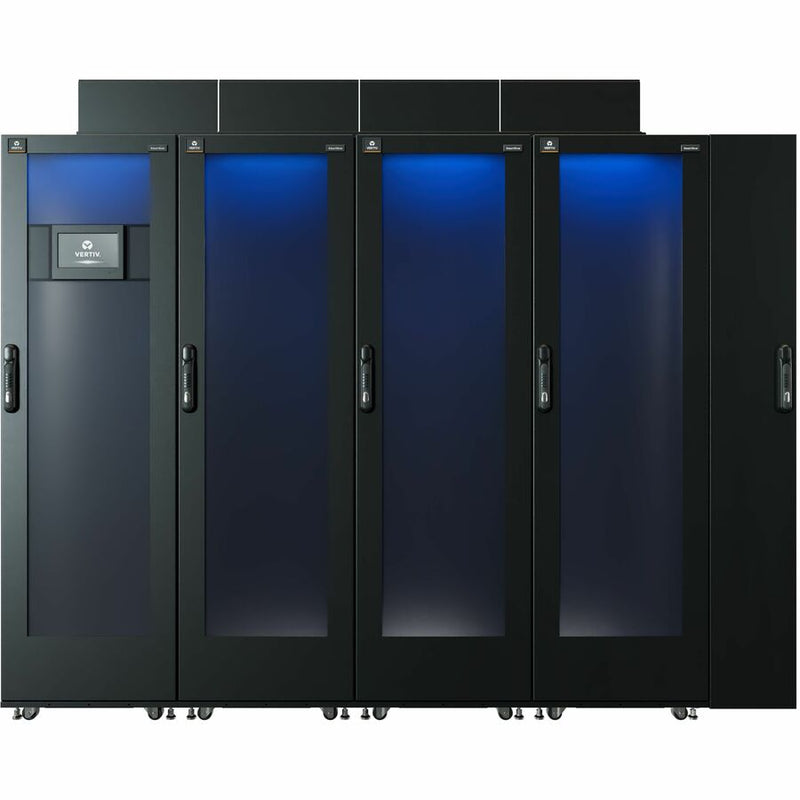

The Vertiv™ SmartRow™ 2 (SR2N03010PAA1) is a fully integrated, self-contained infrastructure solution designed for rapid deployment of edge and small data centers. Featuring 3 IT racks with true hot and cold aisle containment, this 10kW system provides efficient cooling, power distribution, and cable management in a compact footprint. Ideal for environments requiring high availability without a dedicated data center space, the SmartRow™ simplifies installation, improves scalability, and enhances thermal management with no need for raised floors or room-based cooling.
| Specification | Details |
|---|---|
| Model Number | SR2N03010PAA1 |
| Brand | Vertiv™ |
| Solution Type | SmartRow™ 2 – Integrated Data Center Enclosure |
| IT Racks | 3 |
| Maximum Load Capacity | 10 kW |
| Power Input | 208V, 3-Phase, 4 Wire + PE |
| Redundancy (UPS / PDU) | Yes / Yes |
| Cooling Configuration | 1 in-row cooling unit (CRD10) |
| Cooling Redundancy | No |
| Containment | Hot and Cold Aisle Containment |
| Power Management | Integrated PMC and PMU10 |
| Dimensions (L x W x H) | 2700 x 1400 x 2250 mm (106.3 x 55.2 x 88.6 in) |
| System Weight | 1675 kg (3694 lbs) |
| Minimum Staging Area | 16.34 m² (175.9 ft²) |
| Environment | Indoor; 5°C to 40°C; up to 80% RH |
