Description

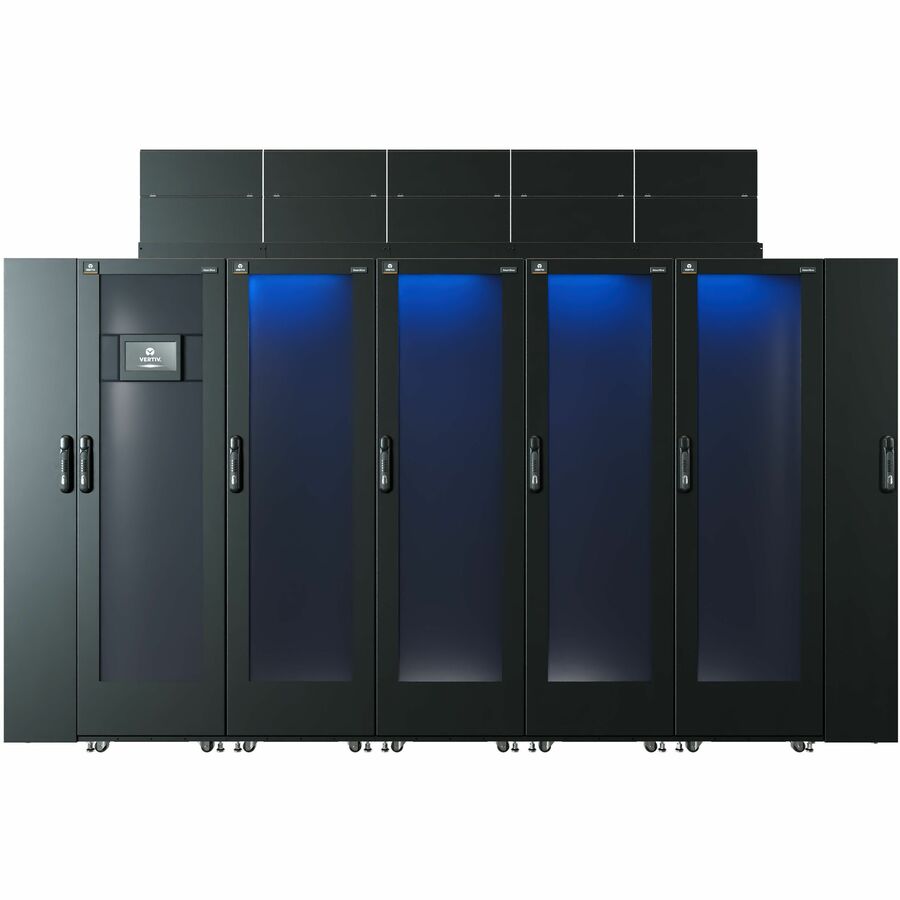

The Vertiv™ SmartRow™ 2 (SR2N04020FAA1) is a pre-engineered, integrated infrastructure solution ideal for scalable edge computing deployments. Featuring four 19" IT racks with cold and hot aisle containment, this 20kW capacity solution supports 3-phase 208V power input and includes dual in-row cooling units in an N+1 configuration for high availability. With dual power redundancy (2N), pre-integrated UPS and power distribution, and intelligent environmental monitoring, SmartRow™ 2 delivers enterprise-level performance with fast deployment and efficient energy use—all in a compact, modular footprint.
| Specification | Details |
|---|---|
| Model Number | SR2N04020FAA1 |
| IT Rack Count | 4 Racks |
| Power Capacity | 20kW |
| Power Input | 208V, 3-Phase, 4 Wire + PE |
| Power Redundancy | UPS: 2N, rPDU: 2N |
| Cooling Redundancy | N+1 |
| Cooling Units | 2 In-Row Cooling Units |
| Dimensions (L x D x H) | 3600 mm x 1400 mm x 2250 mm (11.81 ft x 4.6 ft x 7.38 ft) |
| System Weight | 2710 kg (5974 lbs) |
| Main Breaker Size | 175A |
| Condenser Breaker Size | 15A |
| Dry Weight per Condenser | 118 kg (260.2 lbs) |
| Minimum Staging Area | 25.77 m² (277.4 ft²) |
| Environment | Indoor, 5°C to 40°C (41°F to 104°F), up to 80% RH, max dew point 28°C (82.4°F) |
| Rack Load Capacity | 5kW per Rack |
| Containment | Cold and Hot Aisle Containment |
