Description

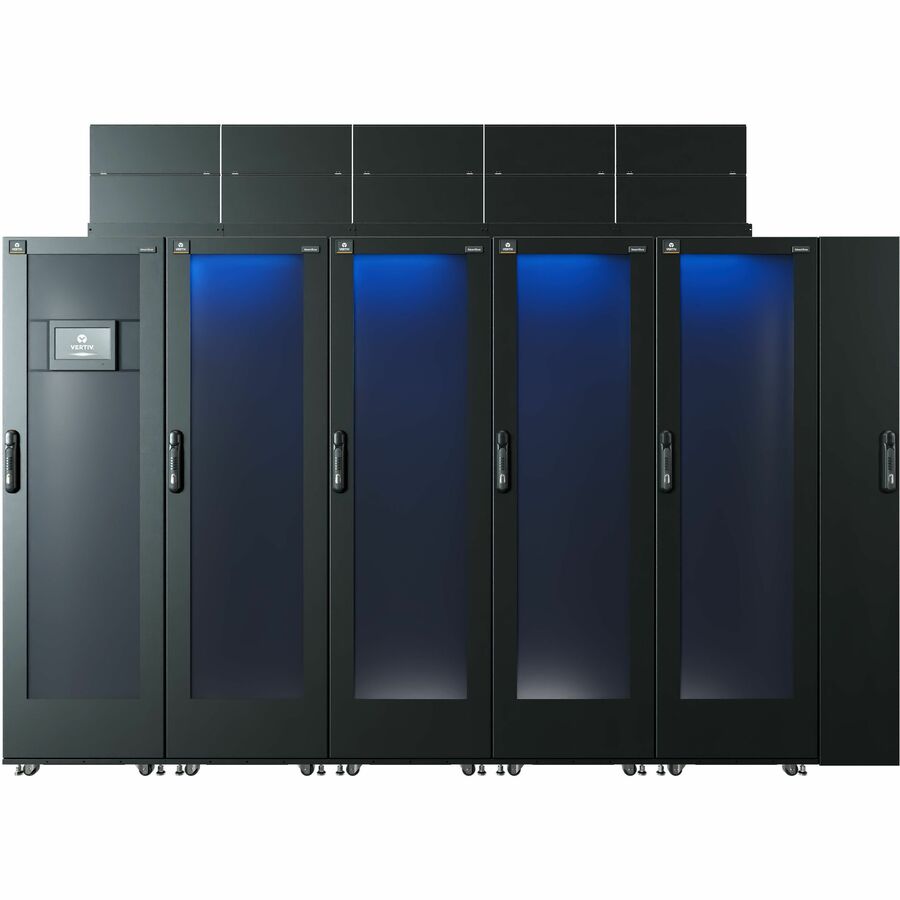

The Vertiv™ SmartRow™ 2 (SR2N04020PAA1) is a fully integrated and modular edge data center solution built to support up to 20kW of IT load with full power redundancy. Featuring 4 IT racks, in-row cooling, and sealed cold aisle containment, this turnkey system ensures efficient thermal management and power distribution in a compact footprint. With integrated UPS, redundant rPDUs, and structured cable pathways, the SmartRow™ 2 system minimizes deployment complexity and accelerates installation—ideal for edge computing or small data centers where space, time, and scalability matter.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Part Number | SR2N04020PAA1 |
| Product Series | SmartRow™ 2 |
| IT Rack Quantity | 4 Racks |
| Max IT Load | 20 kW |
| Input Voltage | 208V, 3-Phase, 4-Wire + PE |
| Power Redundancy | 2N (UPS + rPDU redundancy) |
| Cooling Redundancy | N (non-redundant cooling) |
| Cooling Type | In-row cooling with cold aisle containment |
| Main Breaker Size | 175A |
| Condenser Breaker Size | 15A |
| Dimensions (L x W x H) | 3300mm x 1400mm x 2250mm (130" x 55" x 88.6") |
| System Weight | 2089 kg (4607 lbs) |
| Staging Area Requirement | 21.86 m² (235.3 ft²) |
| Environment Conditions | Indoor use; 5°C to 40°C (41°F to 104°F); RH up to 80% |
