Description

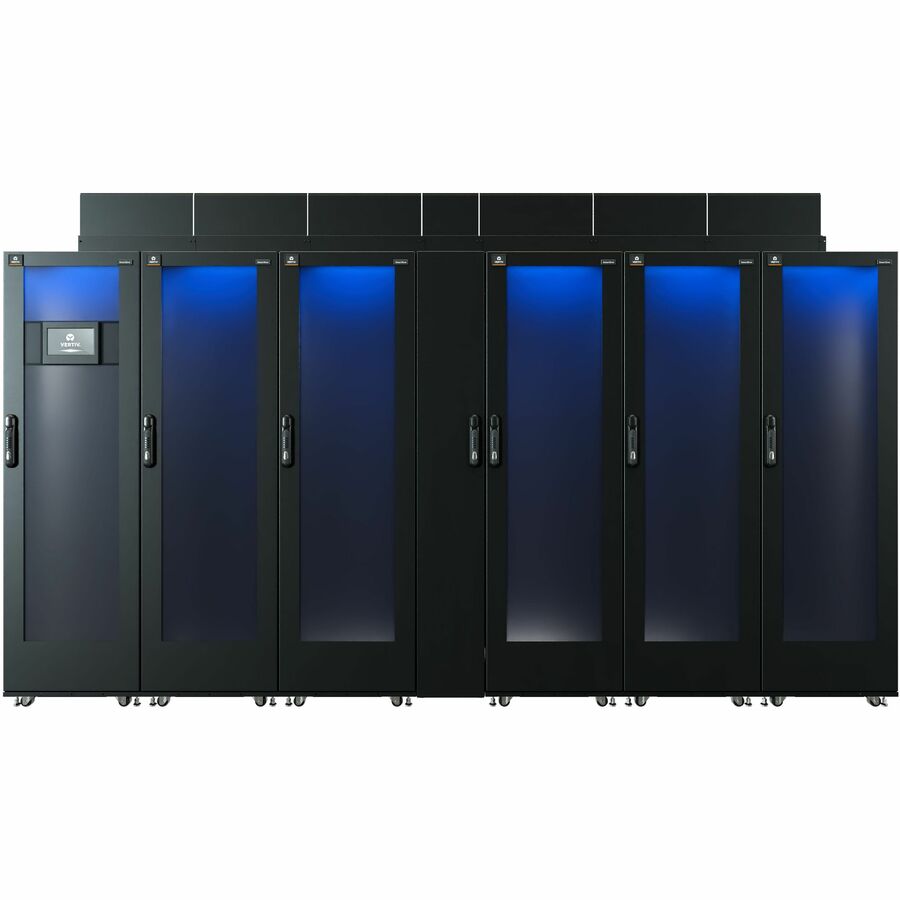

The Vertiv™ SmartRow™ 2 SR2N05020PAA1 is a fully integrated, self-contained edge data center solution with five IT racks, delivering up to 20 kW of total capacity. Designed for quick deployment and high efficiency, it features 10 rack power distribution units (rPDUs), cold aisle containment, and a centralized Power Management Unit (PMU). This 208V, 3-phase SmartRow system supports high-density IT environments with simplified cooling, power protection, and monitoring in a compact footprint. Ideal for remote, modular, or small-scale data center expansions.
| Specification | Details |
|---|---|
| Model Number | SR2N05020PAA1 |
| Total IT Rack Capacity | 5 x IT Racks |
| Power Capacity | 20 kW |
| Input Voltage | 208V, 3-Phase, 4-Wire + PE |
| Redundancy | Power: Yes (UPS & rPDU) / Cooling: No |
| Cooling Containment | Cold Aisle Containment |
| rPDUs Included | 10 |
| Main Input Breaker Size | 175A |
| Breaker per Condenser | 15A |
| Dry Weight | 2273 kg (5012 lbs) |
| Dimensions (L x H x D) | 3900mm x 2271mm x 1400mm (153.6" x 89.4" x 55.2") |
| Minimum Staging Area | 23.21 m² (249.9 ft²) |
