Description

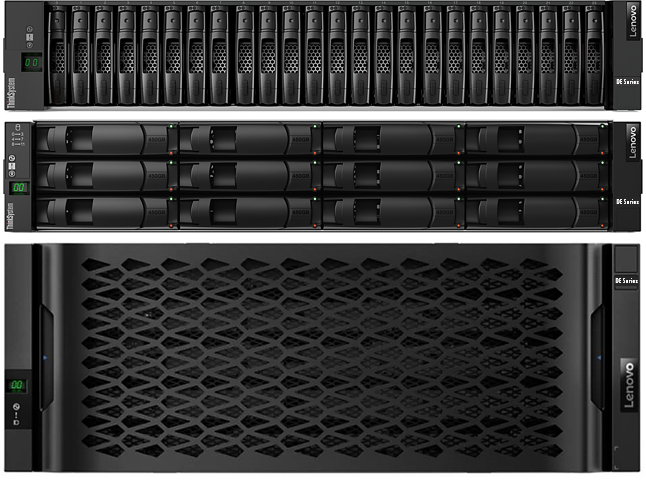

Expand enterprise storage capacity with the Lenovo ThinkSystem DE600S Gen2 4U60 LFF Expansion Enclosure (7Y69A004WW). Designed for Lenovo ThinkSystem DE Series storage environments, this 4U rack-mount enclosure provides up to 60 large form factor (LFF) hot-swap drive bays, enabling organizations to scale storage as capacity requirements grow.
The DE600S features dual redundant SAS I/O modules, high-speed 12 Gb SAS connectivity, redundant hot-swap power supplies, and dedicated hot-swap cooling modules for enhanced availability. It supports compatible SAS and NL-SAS HDDs as well as SAS SSDs, providing flexibility for capacity-focused and performance-oriented storage configurations.
Built for scalable enterprise storage deployments, the DE600S can be connected to compatible ThinkSystem DE4000H controller systems and supports daisy-chaining with additional DE Series expansion enclosures.
Key Features
- 4U rack-mount expansion enclosure
- Up to 60 x 3.5-inch LFF hot-swap drive bays
- Dual redundant SAS I/O modules
- Four 12 Gb SAS x4 expansion ports per I/O module
- Mini-SAS HD SFF-8644 connectivity
- Supports SAS and NL-SAS HDDs and SAS SSDs
- Redundant hot-swap 2325 W AC power supplies
- Dual hot-swap cooling modules
- Supports mixing compatible DE Series expansion enclosure types
- Designed for high-capacity enterprise storage expansion
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lenovo |
| Product Family | ThinkSystem DE Series |
| Model | DE600S Gen2 |
| SKU / Part Number | 7Y69A004WW |
| Product Type | Storage Expansion Enclosure |
| Form Factor | 4U Rack Mount |
| Drive Form Factor | 3.5-inch LFF |
| Maximum Drive Bays | 60 LFF Hot-Swap Bays |
| Drive Interface | 12 Gb SAS / NL-SAS |
| Supported Drive Types | SAS HDD, NL-SAS HDD, SAS SSD |
| I/O Modules | 2 x Redundant Hot-Swap SAS I/O Modules |
| Expansion Ports | 4 x 12 Gb SAS x4 Ports per I/O Module |
| Connector Type | Mini-SAS HD SFF-8644 |
| Power Supplies | 2 x Redundant Hot-Swap 2325 W AC |
| Input Voltage | 200–240 V AC |
| Power Connector | IEC 320-C20 |
| Cooling | 2 x Hot-Swap Cooling Modules |
| Height | 174 mm (6.9 in.) |
| Width | 449 mm (17.7 in.) |
| Depth | 922 mm (36.3 in.) |
| Weight | 112.2 kg (247.4 lb) |
| Rack Mount Kit | Included |
| Compatibility | Lenovo ThinkSystem DE4000H and supported DE Series environments |
| Market | Worldwide / Other Markets |
