Description

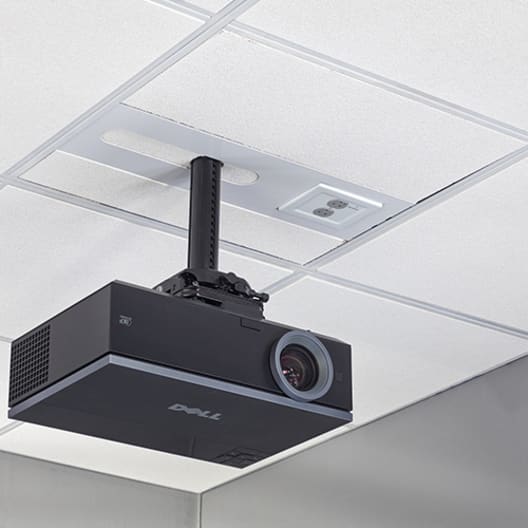

The Chief SYSAUBP2 Suspended Ceiling Projector System is a complete, installation-ready solution designed to significantly reduce setup time while delivering secure, precise projector mounting. Engineered for speed and flexibility, this universal suspended ceiling kit includes integrated power filtering and surge protection, allowing installers to complete most projector installations with fewer components and less labor.
This UL Listed system supports independent roll, pitch, and yaw adjustments for precise image alignment and long-term stability. With built-in surge and filtering protection, the SYSAUBP2 safeguards connected equipment while maintaining a clean, professional ceiling installation. Ideal for classrooms, conference rooms, and commercial AV environments, this system provides dependable performance in a streamlined, all-in-one design.
| Specification | Details |
|---|---|
| Brand | Chief |
| SKU | SYSAUBP2 |
| Product Type | Suspended Ceiling Projector Mount System |
| Application | Ceiling |
| Solution Type | Universal |
| Weight Capacity | Supports projectors up to 35 lb (15.9 kg) |
| Adjustability | Independent roll, pitch, and yaw |
| Pitch Adjustment | ±10° |
| Roll Adjustment | ±3° |
| Yaw Adjustment | 360° |
| Power Output | 15A, 1875W continuous |
| Surge Protection Type | Type 3 Surge Protective Device (SPD) |
| Voltage Protection Rating (VPR) | 600V L-N |
| Maximum Continuous Operating Voltage (MCOV) | 240V |
| Nominal Discharge Current (In) | 3kA |
| Short Circuit Current Rating (SCCR) | 5kA |
| Power Consumption | Greater than 0.5 watt |
| Ambient Operating Temperature | Up to 40°C |
| Overall Dimensions (W × H × D) | 19.82 × 7.25 × 24.94 in (503.5 × 184.2 × 633.6 mm) |
| Width | 7.3 in (18.42 cm) |
| Height | 19.8 in (50.34 cm) |
| Depth | 24.9 in (63.35 cm) |
| Shipping Weight | 25 lb (11.34 kg) |
| Color | Black |
| Special Features | Integrated surge protection and power filtering |
| TAA Compliant | Not TAA compliant |
| Certification | UL Listed |
| UPC | 841872167152 |
