Description

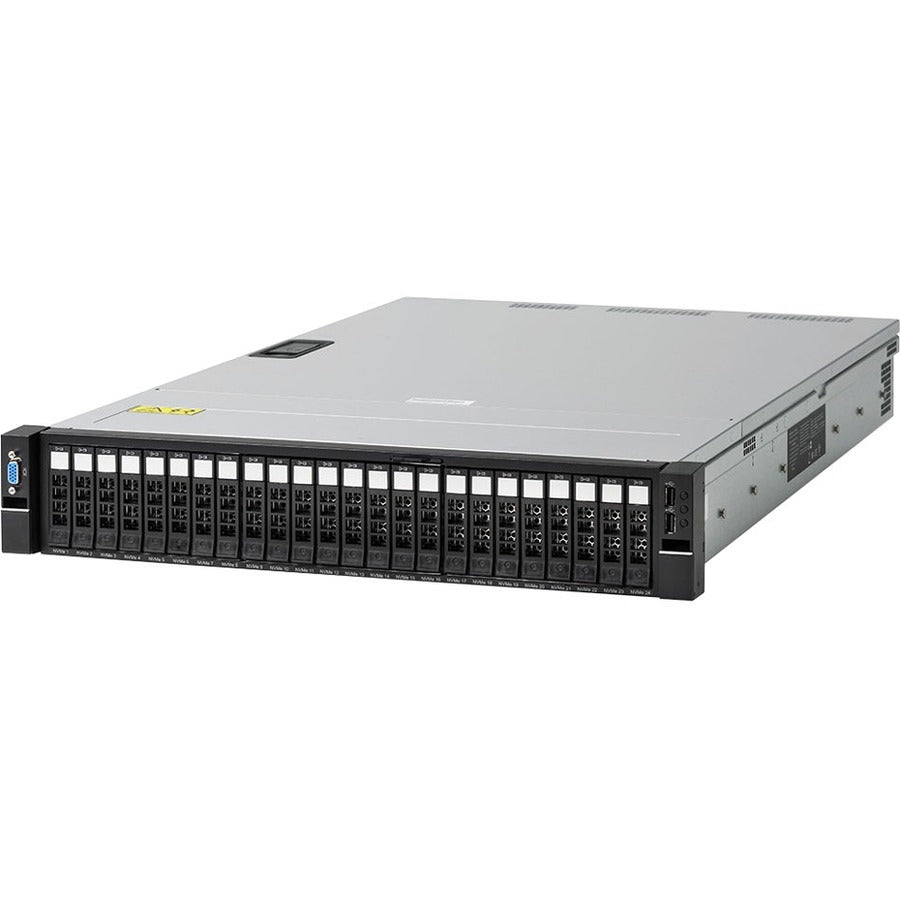

The HGST Ultrastar Serv24 SS2U24PUR-1021 is a high-performance 2U NVMe storage server engineered for modern software-defined storage (SDS) environments. Powered by the Intel Xeon Platinum 8160 24-core processor and equipped with 24 NVMe SSDs totaling 38.4TB of installed capacity (expandable to 184TB), this rackmount server delivers blazing-fast data access with ultra-low latency. With 256GB DDR4 RAM, 10GbE networking, IPMI 2.0 management, and redundant power supplies, the Serv24 is ideal for enterprise and cloud data centers demanding scalable, high-throughput infrastructure.
| Specification | Details |
|---|---|
| Brand | HGST |
| Product Line | Ultrastar Serv24 |
| Model | SS2U24PUR-1021 |
| Part Number | 1ES1025 |
| Processor | Intel Xeon Platinum 8160, 24-Core, 2.10 GHz |
| Memory | 256 GB DDR4 SDRAM |
| Total SSD Supported | 24 |
| Total SSD Installed | 24 |
| Installed SSD Capacity | 38.40 TB |
| Max SSD Capacity | 184 TB |
| Boot Drives | 2 |
| Drive Interface | PCI Express (NVMe) |
| Controller | NVMe |
| Expansion Bays | 24 |
| Expansion Slots | 3 (PCIe 3.0 x16 / x8) |
| Network Ports | 2 x RJ-45, 10 Gigabit Ethernet |
| USB Ports | 2 x USB 3.0 |
| VGA | Yes |
| IPMI Support | IPMI 2.0 |
| Form Factor | 2U Rackmount |
| Dimensions (HxWxD) | 3.4" x 17.6" x 29.9" |
| Weight | 54.90 lbs |
| Power Supplies | 2 x 1200W (Redundant) |
| Warranty | 5-Year Limited Warranty |
| Product Condition | New and Factory Fresh |
