Description

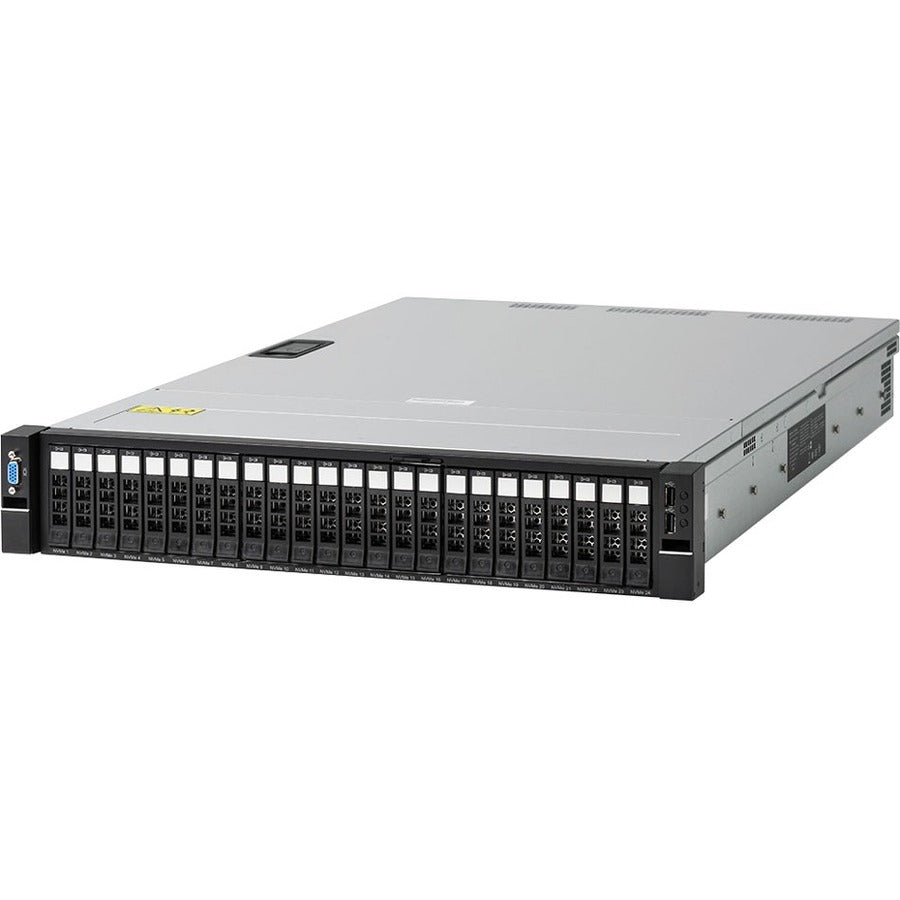

The HGST Ultrastar Serv24 SS2U24PUR-1017 is a high-performance NVMe storage server built for software-defined storage (SDS) environments. Powered by an Intel Xeon Gold 6140 18-core processor and 256GB DDR4 RAM, this 2U rack-mountable unit delivers blazing-fast performance with 24 NVMe SSDs and 92.16TB of installed storage capacity. With support for up to 184TB total SSD capacity, dual 10GbE, IPMI 2.0, and redundant 1200W power supplies, it’s engineered for demanding enterprise and cloud data centers that need speed, reliability, and scalability.
| Specification | Details |
|---|---|
| Product Model | SS2U24PUR-1017 |
| Processor | Intel Xeon Gold 6140, 18-Core, 2.30 GHz |
| Installed SSDs | 24 x NVMe SSDs |
| Installed SSD Capacity | 92.16 TB |
| Max SSD Capacity Supported | 184 TB |
| Boot Drives | 2 |
| Memory | 256 GB DDR4 SDRAM |
| Drive Interface | PCI Express (NVMe) |
| Expansion Bays | 24 |
| Expansion Slots | 3 (PCIe 3.0 x16, PCIe 3.0 x8) |
| Ethernet | Dual 10 Gigabit Ethernet (RJ-45) |
| USB Ports | 2 x USB, 2 x USB 3.0 |
| Video Output | VGA |
| Management Interface | IPMI 2.0 |
| Power Supply | 2 x 1200W Redundant |
| Form Factor | 2U Rack-mountable |
| Dimensions (H x W x D) | 3.4" x 17.6" x 29.9" |
| Weight | 54.90 lbs |
| Product Condition | New and Factory Fresh |
| Warranty | 5-Year Limited |
