Description

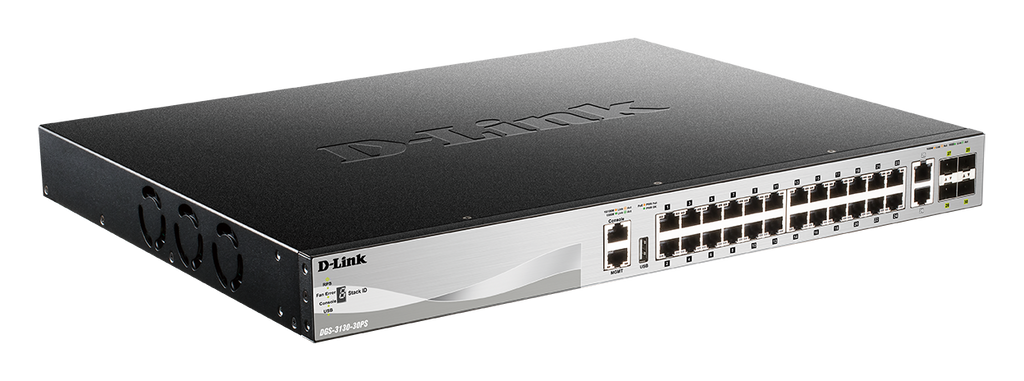

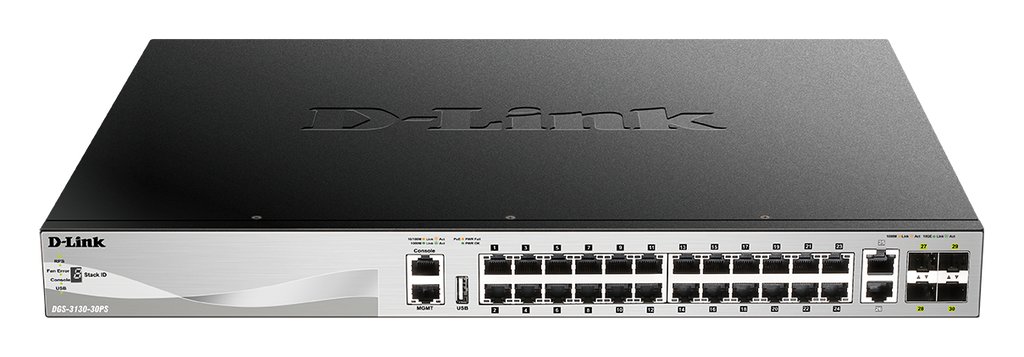

The D-Link DGS-3130-30PS is a high-performance Layer 3 stackable managed switch engineered for enterprise and metro Ethernet access networks that demand reliability, scalability, and secure connectivity. Designed to support modern network infrastructures, it delivers advanced routing capabilities, robust security features, and high availability to ensure uninterrupted operations.
Equipped with 24 Gigabit PoE+ ports, the switch powers devices such as IP cameras, wireless access points, and VoIP phones directly through Ethernet cables, reducing deployment complexity and cost. With integrated 10 Gigabit uplinks, it provides high-speed connectivity for core aggregation and bandwidth-intensive applications.
The DGS-3130-30PS supports physical stacking of up to nine units, enabling simplified management and scalable network expansion. Advanced Layer 3 features including OSPF, RIP, and static routing allow efficient traffic management across complex network environments. Built-in redundancy features, including support for an external redundant power supply and rapid failover protocols, ensure maximum uptime.
With comprehensive security controls, intelligent QoS, and extensive management capabilities, this switch is ideal for organizations seeking a reliable, scalable, and future-ready network solution.
| Specification | Details |
|---|---|
| Switch Type | Layer 3 Stackable Managed Switch |
| Ports | 24 x 10/100/1000BASE-T PoE+ ports |
| Uplink Ports | 2 x 10GBASE-T, 4 x 10G SFP+ |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| PoE Power Budget | 370W standard, up to 740W with redundant power supply |
| Switching Capacity | 168 Gbps |
| Packet Forwarding Rate | 125 Mpps |
| Stacking Capability | Up to 9 units per stack |
| Stacking Bandwidth | 80 Gbps per device |
| Routing Features | Static Routing, RIP, RIPng, OSPFv2/v3 |
| Security Features | ACLs, DHCP Snooping, IP-MAC-Port Binding, 802.1X |
| QoS Features | 8 queues per port, traffic shaping, priority scheduling |
| Management Interfaces | Web GUI, CLI, SNMP, Telnet, SSH |
| USB Port | 1 x USB 2.0 Type-A |

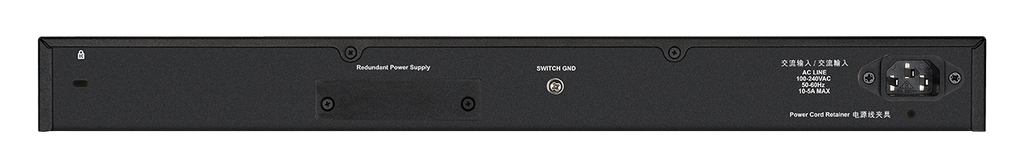

| Redundant Power Supply | Supported (DPS-700) |
| Surge Protection | 6 kV on all Gigabit Ethernet ports |
| Dimensions | 440 x 430 x 44 mm |
| Weight | 5.6 kg |
| Operating Temperature | 0°C to 50°C |
| Power Input | 100 to 240 VAC, 50/60 Hz |
