Description

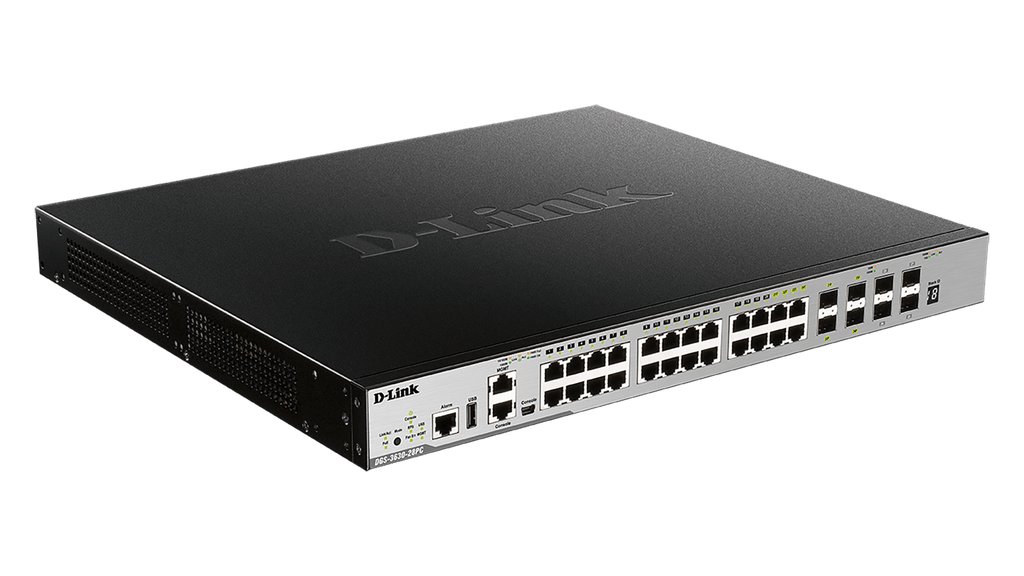

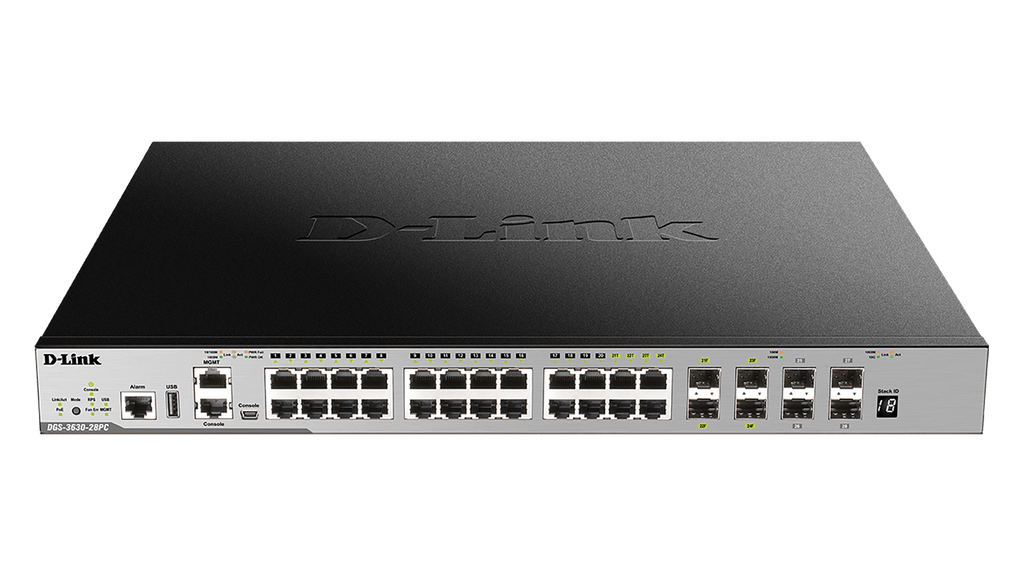

The D-Link DGS-3630-28PC/SI is a high-performance Layer 3 stackable managed switch designed for enterprise, campus, and service provider environments that demand reliability, scalability, and advanced control. Built with 20 Gigabit PoE ports and additional combo uplink flexibility, this switch delivers efficient power and connectivity for IP cameras, VoIP phones, wireless access points, and other network devices.
Engineered for high availability, the DGS-3630 Series supports physical and virtual stacking, enabling multiple units to operate as a single system for simplified management and increased redundancy. Advanced Layer 3 features, robust security controls, and comprehensive QoS ensure optimized traffic handling for mission-critical applications such as voice and video.
With integrated 10 Gigabit SFP+ uplinks, flexible software image support, and a substantial PoE power budget, the DGS-3630-28PC/SI is a powerful and scalable solution for modern network infrastructures requiring performance, resilience, and centralized control.
| Specification | Details |
|---|---|
| Form Factor | 19-inch rack-mount, 1U |
| Ports | 20 x 10/100/1000BASE-T PoE ports |
| Combo Ports | 4 x 10/100/1000BASE-T PoE/SFP combo ports |
| Uplink Ports | 4 x 10 Gigabit SFP+ |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | 370W (up to 740W with redundant power supply) |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.24 Mpps |
| MAC Address Table | Up to 68K entries |
| Routing Table | IPv4: 16K entries / IPv6: 7K entries |
| Forwarding Table | IPv4: 32K entries / IPv6: 16K entries |
| Jumbo Frame Support | Up to 12 KB |
| Stacking Capability | Up to 9 units |
| Stacking Bandwidth | Up to 80 Gbps per device |
| Management Interfaces | RJ-45 console, Mini-USB console, dedicated management port |
| USB Port | 1 x USB 2.0 Type A |
| Security Features | ACLs, 802.1X authentication, DHCP snooping, IP source guard |
| QoS Features | 8 queues per port, traffic prioritization, bandwidth control |
| Redundancy | RPS support, ERPS, STP/RSTP/MSTP |
| Surge Protection | 6 kV on all Ethernet ports |
| Power Input | 100 to 240 VAC, 50/60 Hz |
| Max Power Consumption | 44.3W (PoE off), 469.3W (PoE on) |
| Dimensions | 441 x 380 x 44 mm |
| Weight | 5.88 kg |
| Operating Temperature | -5°C to 50°C |
| Cooling | 4 smart fans |
