Description

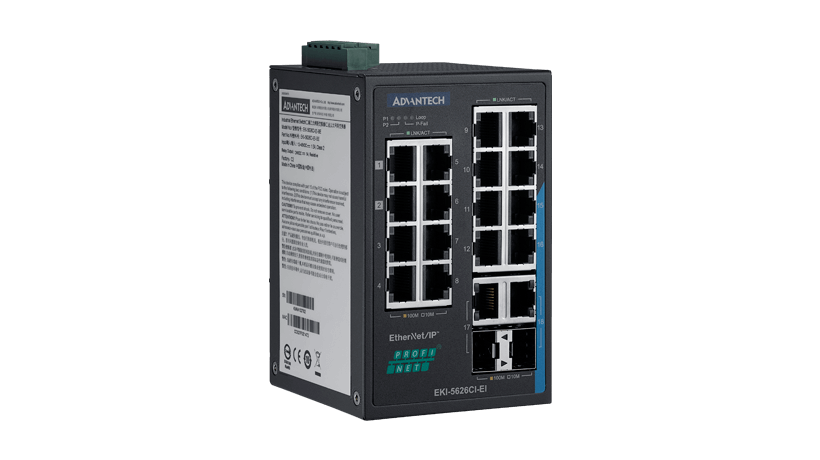

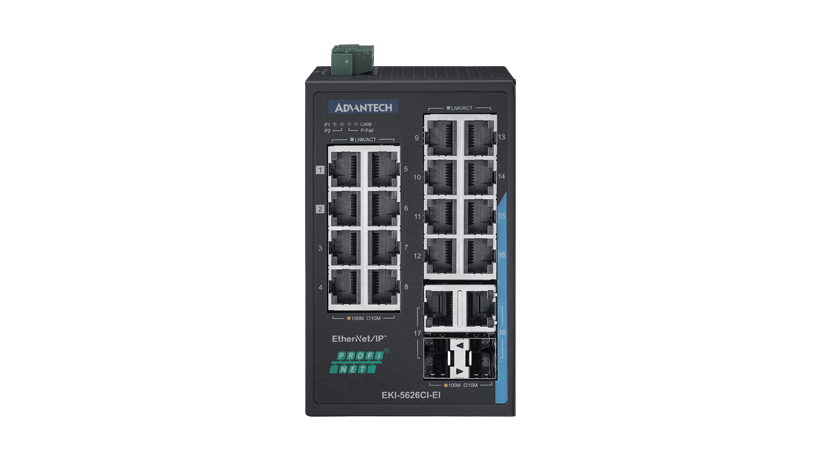

The Advantech EKI-5626CI-EI-AE is an entry-level managed industrial Ethernet switch designed for reliable factory and automation networking. It features 16 Fast Ethernet RJ-45 ports plus 2 Gigabit copper/SFP combo uplink ports, delivering flexible connectivity for industrial environments.
Built with rugged DIN-rail mounting, wide operating temperature support, and redundant dual power inputs, this managed switch ensures stable operation in harsh conditions. Advanced Layer 2 features such as VLAN, port mirroring, storm control, multicast management, and ultra-fast ring redundancy make it ideal for mission-critical industrial networks.
The EKI-5626CI-EI-AE also supports industrial protocols including EtherNet/IP, PROFINET, and Modbus/TCP, providing seamless integration into modern automation systems.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model / SKU | EKI-5626CI-EI-AE |
| Product Type | Entry-Level Managed Industrial Ethernet Switch |
| Total Ports | 18 Ports |
| Ethernet Ports | 16 × Fast Ethernet RJ-45 |
| Uplink Ports | 2 × Gigabit Copper/SFP Combo Ports |
| Switching Capacity | 7.2 Gbps |
| MAC Address Table | 8K Entries |
| Jumbo Frame Support | Up to 9216 Bytes |
| VLAN Support | IEEE 802.1Q VLAN (256 Groups) |
| Redundancy Protocols | STP, RSTP, MSTP, X-Ring (<20ms recovery) |
| Multicast Support | IGMP Snooping v1/v2/v3, MLD Snooping |
| Security Features | 802.1X Authentication, MAC Filtering, Port Security |
| Management Interfaces | Web GUI, SNMP v1/v2c/v3, Syslog, TFTP/HTTP Upgrade |
| Supported Protocols | EtherNet/IP, PROFINET, Modbus/TCP |
| Power Input | 12–48 VDC Redundant Dual Power |
| Power Consumption | 8.2W |
| Mounting Type | DIN-Rail |
| Enclosure Rating | IP30 Metal Housing |
| Operating Temperature | -40°C to 75°C |
| Certifications | CE, FCC Class A, UL508, ATEX, Class 1 Division 2 |
| Dimensions (W×H×D) | 74 × 120 × 84 mm |
| Weight | 0.8 kg |
