Description

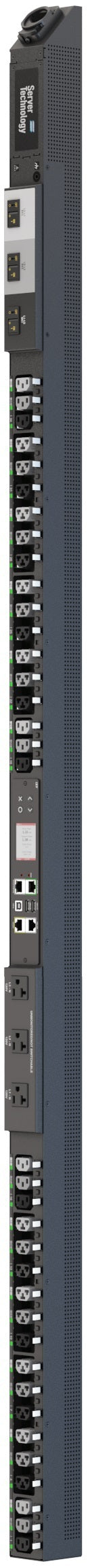

The Server Technology PRO4X C4G36RA-YCBE2FE3 Switched POPS PDU delivers advanced power distribution and monitoring for high-density data centers. Built on the cutting-edge Xerus™ network interface platform, it offers full remote access to power, status, and outlet control, ensuring maximum uptime and efficiency.
Featuring RamLock® self-locking outlets and HDOT Cx hybrid receptacles (supporting both C13 and C19 plugs), this PDU combines versatility with secure cable retention. With per-outlet power sensing (POPS®), per-inlet power sensing (PIPS®), and branch circuit protection, IT managers can track energy usage, balance loads, and mitigate risk in real time.
Designed for modern data centers, the unit supports environmental monitoring, multi-unit linking, and RGB LED outlet indicators for quick status checks. Its rugged design is tested for 60 °C high-temperature operation and integrates seamlessly with existing rack infrastructures via flexible mounting options.
Ideal for enterprises demanding reliability, security, and intelligent power management, the PRO4X Switched PDU provides peace of mind with dual Ethernet, optional Wi-Fi, SNMP traps, SSH/SSL security, and support for a wide range of Legrand SmartSensors.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Series | PRO4X Switched POPS |
| Model / SKU | C4G36RA-YCBE2FE3 |
| Outlets | 36 total: (12) IEC C13, (24) HDOT Cx (C13/C19 hybrid), (3) NEMA 5-20R utility |
| Input Voltage | 208V, 50/60 Hz |
| Input Plug | NEMA L21-30P |
| Input Current (Rated) | 24A |
| Input Power Capacity | 8.6 kW |
| Branch Circuit Protection | UL 489 2-pole, 20A magnetic-hydraulic circuit breakers (≤16A rating, 10kAIC) |
| Monitoring | PIPS® per-inlet, POPS® per-outlet; waveform capture; power quality metrics |
| Control | Remote on/off/cycle per outlet or group |
| Communications | Dual Gigabit Ethernet, USB, RS-232, SNMPv2/v3, SSH, HTTPS, LDAP, RADIUS, TACACS+, optional Wi-Fi |
| Environmental Sensors | Supports up to 12 Legrand DX2 SmartSensors (temp, humidity, airflow, water, vibration, etc.) |
| Indicators & Display | Multi-color LCD, RGB LED outlet indicators |
| Physical Dimensions | 70.0 in (H) × 2.2 in (W) × 2.5 in (D) [1778 × 56 × 64 mm] |
| Operating Environment | 32°F to 140°F (0°C to 60°C), 5–90% RH non-condensing, up to 3000 m elevation |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited (extended options available) |
