Description

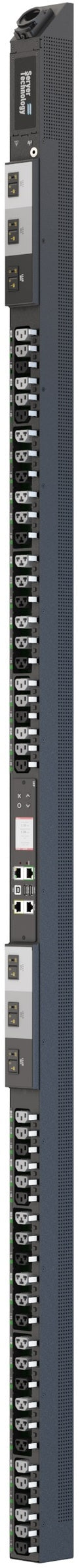

The Server Technology PRO4X Switched POPS PDU (C4G48RA-DQBD2FD3) delivers advanced outlet-level monitoring, secure remote access, and intelligent power management for mission-critical data centers. Powered by the cutting-edge Xerus™ network interface, this PDU enables per-inlet and per-outlet power sensing (PIPS® & POPS®), waveform capture, and automated environmental monitoring.
Designed with HDOT Cx outlets, this PDU accommodates both C14 and C20 plugs, ensuring flexible deployment. The 45° angled infeed improves cable management and strain relief, while alternating-phase outlet design balances loads and enhances airflow.
The PRO4X provides multi-unit linking for up to 16 PDUs through one IP address, hot-swappable controllers for uninterrupted operation, and RamLock self-locking outlets for secure connections. With integrated branch circuit protection, multi-color LCD, RGB outlet indicators, and environmental sensor support, this PDU offers maximum visibility, control, and safety in high-density rack environments.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO4X Switched POPS |
| Model / SKU | C4G48RA-DQBD2FD3 |
| Outlets | 48 total (24 x IEC 60320 C13, 24 x HDOT Cx hybrid C13/C19) |
| Input Voltage | 208V, 50/60 Hz |
| Input Plug | 208V Delta 60A IEC 60309 3P+G 9Hr |
| Input Current | 60A (48A rated) |
| Power Capacity | 17.3 kW |
| Outlet Ratings | C13 ≤ 12A @208V L-L (15A peak), Cx ≤ 16A @208V L-L (20A peak) |
| Power Monitoring | PIPS® per-inlet, POPS® per-outlet sensing |
| Key Features | Remote access, outlet control, waveform capture, environmental monitoring, multi-unit linking, RGB outlet indicators, RamLock locking outlets |
| Branch Protection | UL 489 rated 20A magnetic-hydraulic breakers (≤16A branch, 10 kAIC) |
| Network Interfaces | Dual Gigabit Ethernet, SNMP v2/v3, HTTP/HTTPS, SSH, Telnet, FTP/SFTP, LDAP, RADIUS, TACACS+ |
| Environmental Support | Supports up to 12 DX2 SmartSensors (temp, humidity, airflow, leak, etc.) |
| Physical Dimensions | 80 in H x 2.2 in W x 2.5 in D (2032mm x 56mm x 64mm) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F), 5–90% RH, <3000m altitude |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited parts & labor (extendable) |
