Description

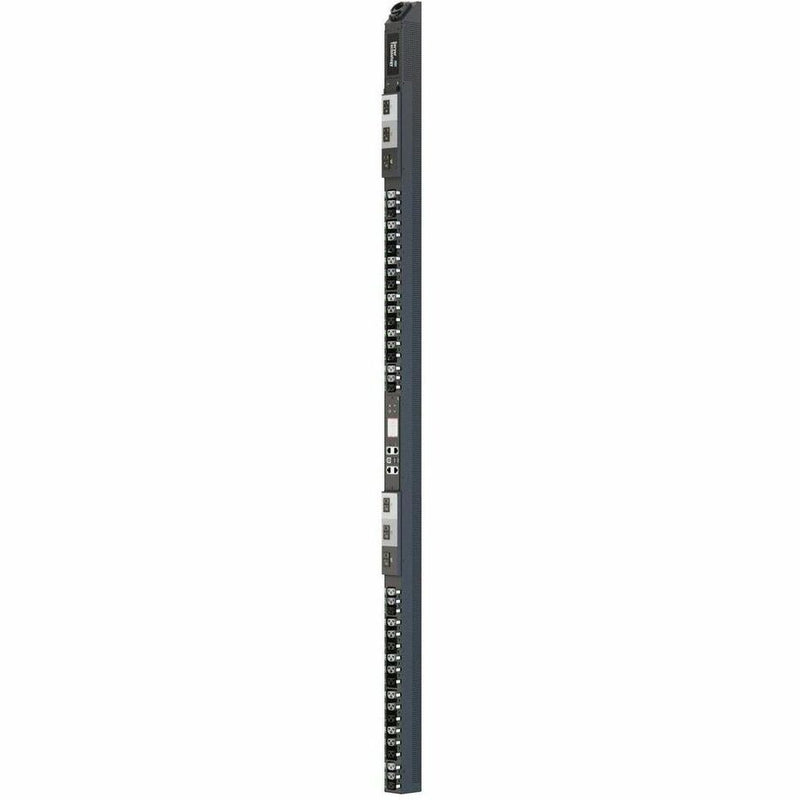

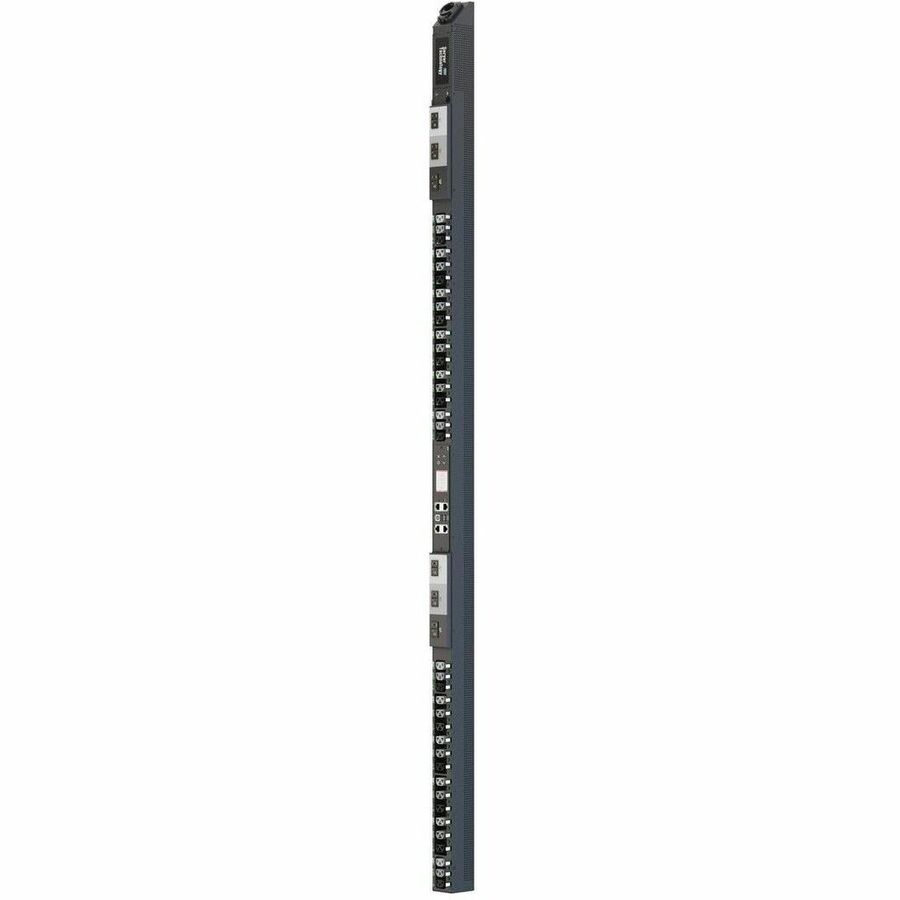

The Server Technology PRO4X C4G36RA-DQBD2FE1 is a high-performance Switched POPS PDU designed for advanced power distribution and monitoring in enterprise data centers. Built on the powerful Xerus™ network interface platform, it delivers remote access to PDU status, input and branch current monitoring, as well as outlet-level on/off control.
Featuring HDOT Cx outlets, this unit supports both C13 and C19 plugs, providing flexibility and future-proof connectivity. With RamLock® self-locking outlets, it ensures secure cord retention, minimizing accidental disconnections.
Key technologies such as PIPS® (Per Inlet Power Sensing) and POPS® (Per Outlet Power Sensing) provide highly accurate billing-grade measurements for current, voltage, power, and energy usage. Environmental monitoring support allows integration with Legrand DX2 SmartSensors for temperature, humidity, airflow, and more.
Engineered for mission-critical reliability, the PRO4X PDU includes a hot-swappable controller, alternating-phase outlets for load balancing, 45° angled infeed for accessibility, and strong security features with AES-256 encryption, LDAP/AD integration, SNMPv3, and HTTPS support. Built for demanding environments, it operates safely at temperatures up to 60°C.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO4X Switched POPS PDU |
| Model / SKU | C4G36RA-DQBD2FE1 |
| Outlets | 36 total (12 × IEC C13, 24 × HDOT Cx hybrid C13/C19) |
| Input Voltage | 208V, 50/60 Hz |
| Input Plug | IEC 60309 60A, 3P+G, 9Hr (208V Delta) |
| Input Current | 60A (rated 48A) |
| Power Capacity | 17.3 kW |
| Monitoring | PIPS® per inlet, POPS® per outlet, waveform capture, power quality |
| Security | AES-256 encryption, Active Directory, LDAP/LDAPS, TACACS+, RADIUS |
| Networking | Dual Gigabit Ethernet, optional Wi-Fi, USB-A/B, RS-232, Sensor ports |
| Environmental Sensors | Supports up to 12 Legrand DX2 SmartSensors |
| Display | Multi-color LCD + RGB LED outlet indicators |
| Controller | Hot-swappable intelligent controller |
| Branch Circuit Protection | UL 489 rated magnetic-hydraulic breakers (≤ 16A, 10kAIC) |
| Physical Dimensions | 70.0 × 2.2 × 2.5 in (1778 × 56 × 64 mm) |
| Operating Temp. | 0°C to 60°C (32°F to 140°F) |
| Certifications | UL 62368-1, CSA C22.2, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited (extended support available) |
