Description

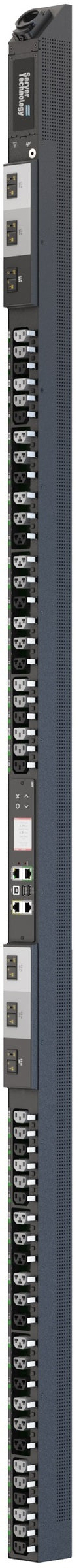

The Server Technology PRO4X Switched POPS PDU (C4G48RA-GPBD2FD3) is a next-generation power distribution solution designed for enterprise and hyperscale data centers. Built on the advanced Xerus™ network interface platform, it offers remote power monitoring, outlet control, and real-time environmental intelligence.
This PDU features HDOT Cx hybrid outlets, supporting both C13 and C19 plugs for maximum flexibility, along with RamLock® locking mechanisms to prevent accidental disconnects. With POPS® (Per Outlet Power Sensing) and PIPS® (Per Inlet Power Sensing), IT teams gain precise visibility into power metrics, ensuring optimal load balancing, power quality, and energy efficiency.
Additional features include multi-unit linking and cascading, RGB outlet indicators, waveform capture, hot-swappable controllers, and support for Legrand SmartSensors to monitor temperature, humidity, water leaks, dust, airflow, and more. Designed for high-density deployments, it is branch circuit protected, 60°C rated for hot aisle containment, and fully compliant with global safety and EMC standards.
Ideal for mission-critical environments, the C4G48RA-GPBD2FD3 combines secure remote access, granular power management, and robust reliability to meet the evolving needs of modern data centers.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO4X Switched POPS |
| Model / SKU | C4G48RA-GPBD2FD3 |
| Outlets | 48 total (24 × IEC 60320 C13, 24 × HDOT Cx [C13/C19 hybrid]) |
| Outlet Features | POPS® per-outlet monitoring; On/Off control; RGB LED status indicators; RamLock® locking outlets |
| Input Voltage | 415V, 50/60 Hz |
| Input Plug | IEC 60309 3P+N+G 6Hr, 230/400V 32A & 240/415V Wye 30A |
| Input Current | 30A (Rated 24A) |
| Power Capacity | 17.3 kW |
| Power Monitoring | PIPS® per-inlet and POPS® per-outlet sensing; Voltage, Current, Power (W/VA), Crest Factor, Power Factor, Energy |
| Network Interface | Xerus™ platform; Dual Gigabit Ethernet; Optional Wi-Fi |
| Protocols Supported | HTTP/HTTPS, SSH, Telnet, SNMPv2/v3, Syslog, LDAP/LDAPS, TACACS+, RADIUS, FTP/SFTP |
| Controller | Hot-swappable; Local LCD display |
| Branch Circuit Protection | UL 489 magnetic-hydraulic circuit breakers (6 × 20A, ≤16A per branch) |
| Mounting | Vertical button mounts (tool-less) or custom brackets |
| Dimensions | 80.0" H × 2.2" W × 2.5" D (2032 × 56 × 64 mm) |
| Environmental Rating | Operating: 0–60°C, 5–90% RH non-condensing; Storage: –30–80°C |
| Certifications (NA) | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, ICES-003 Class A |
| Certifications (Global) | EN/IEC 62368-1, CE Mark, UKCA, RoHS, EN 55032/55035, IEC 61000-3-2/3 |
| Quiescent Power Draw | < 7W |
| Warranty | 2-Year Limited (extended support available) |
