Description

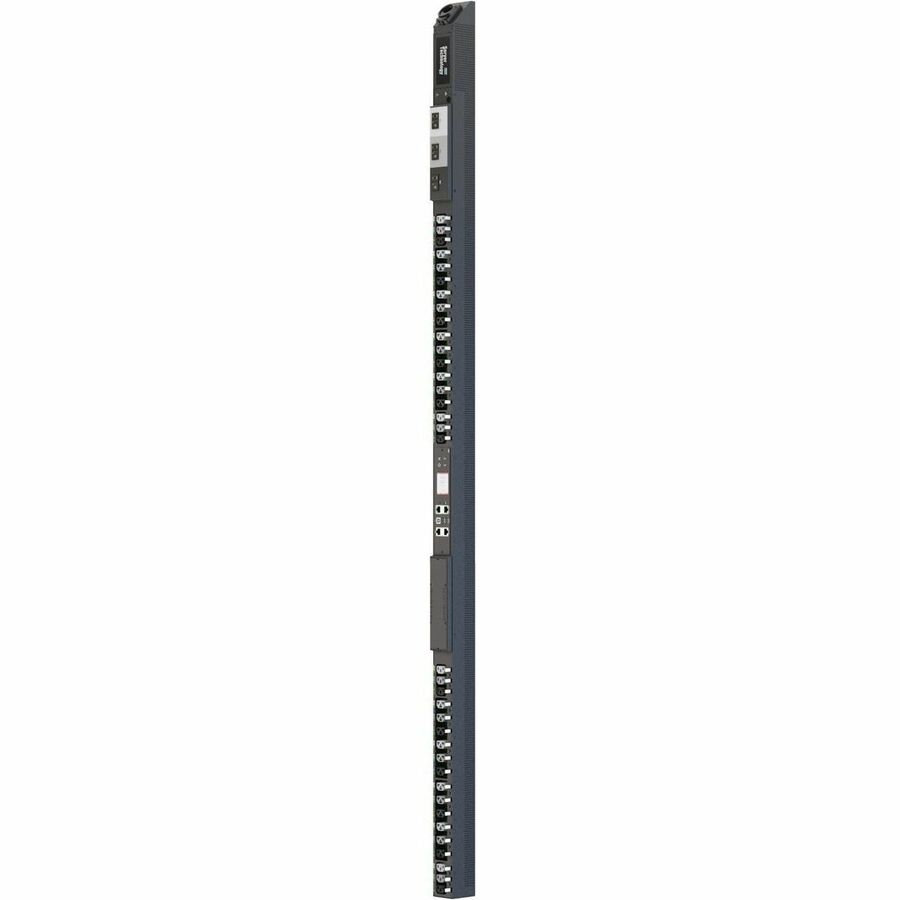

The Server Technology® PRO4X Switched POPS PDU (C4G36RA-2CBE2FE2) delivers cutting-edge power distribution and monitoring for modern data centers. Built on the Xerus™ network interface platform, it offers real-time visibility, remote outlet control, and per-inlet/outlet power sensing (PIPS® & POPS®).
Featuring HDOT Cx outlets that support both C13 and C19 plugs, RamLock self-locking outlets, and a 45° angled infeed for improved accessibility, this PDU ensures maximum reliability and safety. Equipped with multi-unit linking, RGB LED outlet indicators, environmental monitoring with smart sensors, and hot-swappable controllers, it provides flexibility, high availability, and seamless integration into your critical infrastructure.
Certified to the highest standards (UL, CSA, IEC), this PDU is engineered for 60°C environments, ensuring resilient performance in demanding data center conditions.
| Category | Details |
|---|---|
| Brand | Server Technology (Legrand) |
| Series / Model | PRO4X / C4G36RA-2CBE2FE2 |
| Form Factor | Vertical (0U) |
| Outlets | 36 total: (12) x IEC C13, (24) x HDOT Cx (C13/C19 hybrid) |
| Input Voltage | 208V AC |
| Input Plug | NEMA L6-30P |
| Input Current | 30A (24A rated) |
| Power Capacity | 5.0 kW |
| Features | Remote outlet switching, PIPS® per-inlet power sensing, POPS® per-outlet power sensing, waveform capture, multi-unit cascading (up to 16 PDUs) |
| Security | 256-bit AES, Active Directory, RADIUS, LDAP(S), HTTPS, SSH, SNMPv3 |
| Monitoring | Multi-color LCD, RGB outlet indicators, environmental monitoring (supports up to 12 daisy-chained DX2 SmartSensors) |
| Physical Dimensions | 70.0in H x 2.2in W x 2.5in D (1778mm x 56mm x 64mm) |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Certifications | UL 62368-1, CSA C22.2, IEC/EN 60947-2, FCC Class A, ICES-003 Class A |
| Warranty | 2-Year Limited (Extended options available) |
