Description

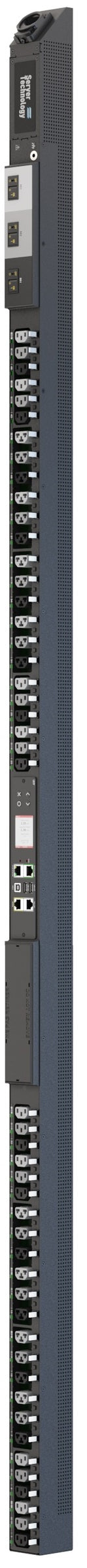

The Server Technology® PRO4X Switched POPS PDU (C4G48RA-EPBE2FD7) is a high-density power distribution unit designed for modern data centers requiring advanced monitoring, outlet control, and secure network integration. Built on the Xerus™ network interface platform, this PDU combines intelligent per-outlet and per-inlet power sensing (POPS® & PIPS®) with a robust set of security, monitoring, and control features.
Equipped with HDOT Cx hybrid outlets (supporting both C13 and C19 plugs), RamLock locking technology, and multi-color LCD indicators, it ensures operational safety and flexibility. With hot-swappable controllers, alternating-phase outlet distribution, and cascading support for up to 16 PDUs, this unit is ideal for maximizing uptime, efficiency, and scalability.
Certified to global safety and EMC standards, the PRO4X Switched POPS PDU is engineered for 60°C operating environments, making it a reliable choice for mission-critical IT infrastructure.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO4X Switched POPS PDU |
| Model / SKU | C4G48RA-EPBE2FD7 |
| Outlets | 48 total (24 × IEC C13 ≤10A @230V, 24 × HDOT Cx ≤16A @230V) |
| Outlet Features | HDOT Cx hybrid outlets (C13/C19), RGB LED indicators, RamLock locking outlets, outlet on/off control |
| Input Voltage | 230V, 50/60Hz |
| Input Plug / Rating | IEC 230V/32A 2P+PE 6Hr; 32A Rated |
| Power Capacity | 7.3 kW |
| Monitoring | PIPS® per-inlet and POPS® per-outlet power sensing; waveform capture; power quality measurements |
| Networking & Security | HTTP(S), SSH, SNMP v2/v3, Telnet, LDAP(S), RADIUS, TACACS+, dual Ethernet, optional Wi-Fi |
| Display | Multi-color LCD for local monitoring |
| Environmental Support | Temp: 0–60 °C, Humidity: 5–90% RH non-condensing, Altitude: ≤3000m |
| Dimensions | 80.0 in × 2.2 in × 2.5 in (2032 mm × 56 mm × 64 mm) |
| Mounting Options | Tool-less button mounts, flexible bracket support |
| Branch Circuit Protection | UL 489 2-pole, 20A trip breakers, IEC/EN 62368-1 compliant |
| Certifications | EN/IEC 62368-1, CE, UKCA, RoHS, EMC (EN 55032, EN 55035, IEC 61000-3-2/3) |
| Warranty | 2-year limited parts & labor (extendable) |
