Description

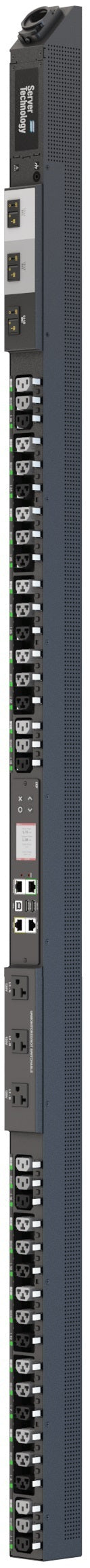

The Server Technology® PRO4X Switched PDU (C4W36RA-YCBE2FE3) delivers advanced power distribution, control, and monitoring for modern data centers. Powered by the Xerus™ platform, it enables remote outlet management, branch current monitoring, and automated alerts for critical power and environmental conditions. Featuring HDOT Cx hybrid outlets that accept both C14 and C20 plugs, RamLock locking outlets for secure connections, and 45° angled infeed for easier installation, this PDU maximizes uptime and reliability. With multi-unit linking, hot-swappable controllers, and advanced measurement accuracy, it is engineered for scalability and operational efficiency.
Its robust security (256-bit AES encryption, LDAP, RADIUS, TACACS+), environmental monitoring support (DX2 SmartSensors), and compliance with UL and IEC standards make it a versatile solution for enterprise-grade power management.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO4X Switched PDU |
| Model / SKU | C4W36RA-YCBE2FE3 |
| Outlets | (24) Cx hybrid outlets (C13/C19), (12) IEC 60320 C13, (3) NEMA 5-20R utility |
| Input Plug | NEMA L21-30P |
| Input Voltage | 208V, 50/60Hz |
| Input Current | 30A (24A rated) |
| Power Capacity | 8.6 kW |
| Outlet Control | Individual or group switching, reboot servers, disable unused receptacles |
| Outlet Features | HDOT Cx hybrid outlets, RGB LED status, RamLock locking mechanism |
| Branch Circuit Protection | UL 489 20A trip breakers (≤16A, 10 kAIC) |
| Network Interface | HTTP/HTTPS, SSH, SNMP, Telnet, FTP/SFTP, LDAP/LDAPS, RADIUS, TACACS+ |
| Ports | Dual Ethernet (10/100/1000), USB-A, USB-B, Sensor port, PDU Link (RJ45) |
| Display | Multi-color LCD with power usage, alerts, and alarms |
| Power Quality | Harmonics, crest factor, dips, swells, waveform capture |
| Mounting | Vertical, tool-less button mounts, custom bracket support |
| Dimensions | 70.0 in (1778 mm) H × 2.2 in (56 mm) W × 2.5 in (64 mm) D |
| Environmental Rating | Operating: 0°C to 60°C (32°F to 140°F) |
| Certifications | UL 62368-1, CSA 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | Standard 2-year limited parts & labor |
| Optional Accessories | DX2 SmartSensors (temp, humidity, airflow, leak), SmartLock, asset sensors |
