Description

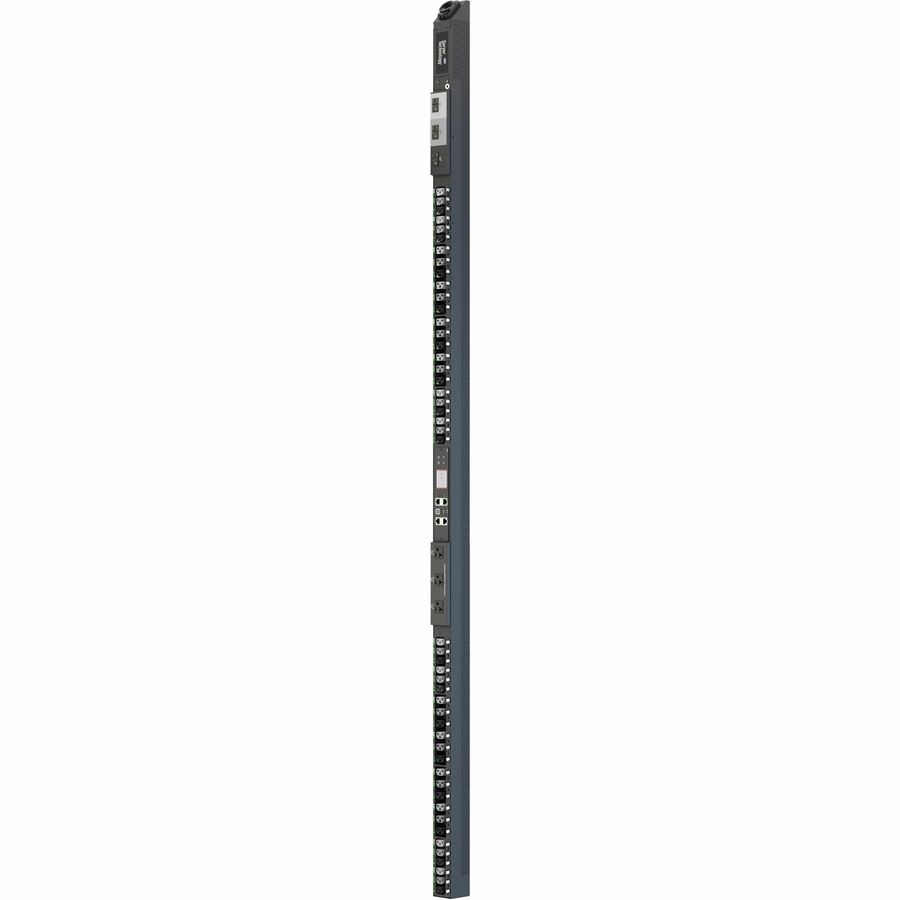

The Server Technology® PRO4X Switched PDU (C4W48RA-DCBE2FD7) delivers advanced power distribution and remote management capabilities for modern data centers. Built on the Xerus™ network interface platform, this intelligent PDU offers per-inlet power sensing (PIPS®), outlet-level monitoring, waveform capture, and advanced branch circuit protection.
Equipped with RamLock™ self-locking outlets and HDOT Cx receptacles, the unit supports both C13 and C19 plugs, ensuring maximum flexibility and cable retention. With features like multi-unit linking and cascading, hot-swappable controller, and multi-color LCD monitoring, the PRO4X provides reliable visibility and control of rack power at scale.
Designed for high-density deployments, the C4W48RA-DCBE2FD7 supports environmental monitoring with plug-and-play SmartSensors, outlet-level control for reboots or load shedding, and robust security through 256-bit AES encryption, SSH/SSL, and SNMPv3. This PDU is engineered to meet the demands of 60°C operating environments, making it a dependable choice for mission-critical IT infrastructure.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line / Series | PRO4X Switched PDU |
| Model / SKU | C4W48RA-DCBE2FD7 |
| Form Factor | Vertical, 80.0 in x 2.2 in x 2.5 in (2032mm x 56mm x 64mm) |
| Input Voltage | 208V, 50/60Hz |
| Input Plug | NEMA L15-30P |
| Input Current (Rated) | 24A (30A max) |
| Power Capacity | 8.6 kW |
| Outlets | (24) IEC 60320/C13 (≤12A @208V) (24) HDOT Cx Hybrid (≤16A @208V) |
| Outlet Features | HDOT Cx hybrid (C13/C19) with RamLock locking mechanism |
| Branch Protection | UL 489, CSA, IEC/EN 60947-2, 20A trip circuit breakers (3 branches) |
| Monitoring | PIPS® Per-Inlet Power Sensing, outlet-level metering, waveform capture |
| Controller | Hot-swappable controller with dual Ethernet & USB |
| Display | Multi-color LCD with local power and alarm indicators |
| Security | 256-bit AES encryption, SSH, SSL, HTTPS, SNMPv3, LDAP, RADIUS, TACACS+ |
| Networking | HTTP/HTTPS, SSH, Telnet, SNMP, Syslog, SMTP, FTP/SFTP, IPv4/IPv6 |
| Environmental Sensors | Supports up to 12 Legrand SmartSensors (temp, humidity, airflow, leaks, etc.) |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Storage Temp | -30°C to 80°C (-22°F to 176°F) |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, ICES-003 Class A |
| Warranty | 2-Year Limited (extended support available) |
