Description

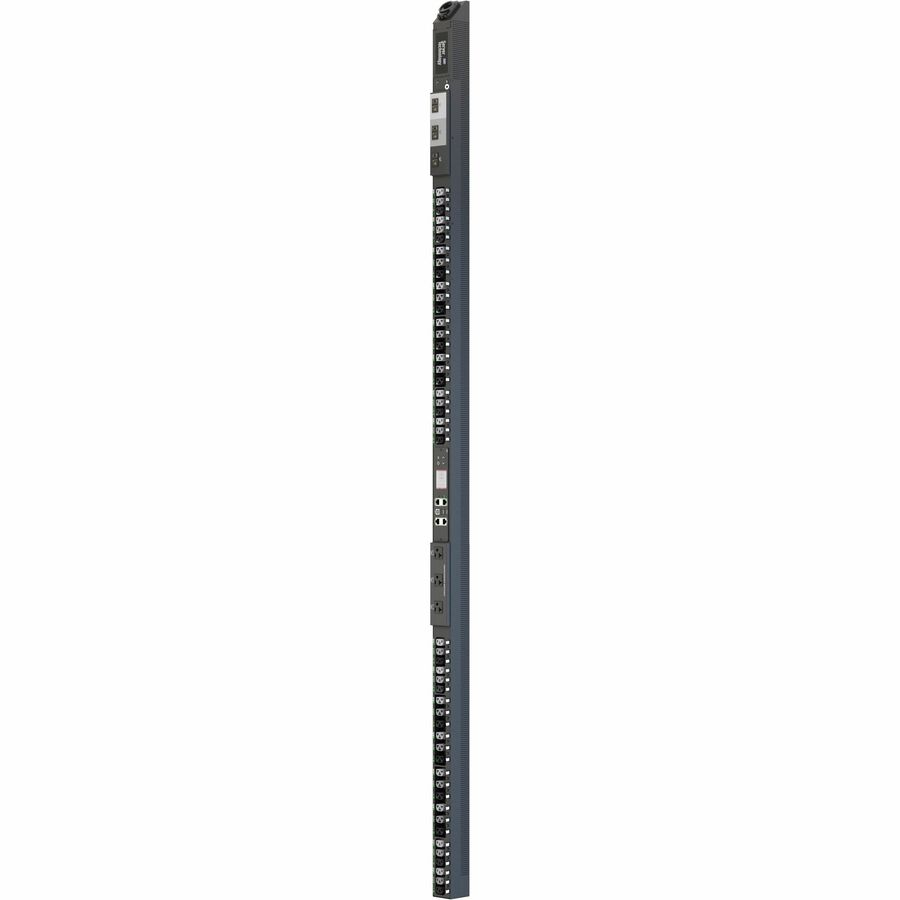

The Server Technology PRO4X C4W48RA-YCBE2FD8 Switched PDU delivers advanced power distribution and intelligent management for demanding data center environments. Built on the Xerus™ network interface platform, it provides secure remote access to power status, outlet control, and comprehensive monitoring.
Featuring HDOT Cx hybrid outlets, the PDU accommodates both C13 and C19 plugs, ensuring maximum flexibility. RamLock® locking outlets prevent accidental disconnects, while alternating-phase distribution simplifies load balancing and airflow. Equipped with multi-unit linking, advanced network monitoring, and environmental sensor support, this PDU is designed for high-density IT deployments.
With branch circuit protection, hot-swappable controllers, per-inlet power sensing (PIPS®), and waveform capture, the PRO4X ensures reliability, precision, and scalability. Its rugged design is tested for safe operation up to 60°C environments, making it an ideal choice for modern data centers.
| Category | Details |
|---|---|
| Brand | Server Technology (Legrand) |
| Product Line | PRO4X Switched PDU |
| Model / SKU | C4W48RA-YCBE2FD8 |
| Outlets | (24) IEC C13, (24) HDOT Cx (C13/C19 hybrid), (3) NEMA 5-20R utility |
| Input Plug | NEMA L21-30P |
| Input Voltage | 208V, 50/60Hz |
| Input Current | 30A (24A rated) |
| Power Capacity | 8.6 kW |
| Outlet Control | Individual/group switching, reboot, or power-off |
| Monitoring | PIPS® per-inlet power sensing, branch circuit protection, power quality, waveform capture |
| Security | 256-bit AES encryption, HTTPS, SSH, LDAP, RADIUS, TACACS+, SNMP v2c/v3 |
| Networking | Dual Ethernet (10/100/1000 Mbps), optional Wi-Fi, USB, RS-232 |
| Indicators | Multi-color LCD, RGB LED outlet indicators |
| Environmental Support | Compatible with Legrand DX2 SmartSensors (temp, humidity, airflow, leak detection, etc.) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Dimensions (HxWxD) | 80.0 x 2.2 x 2.5 in (2032 x 56 x 64 mm) |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-Year Limited (extended support available) |
