Description

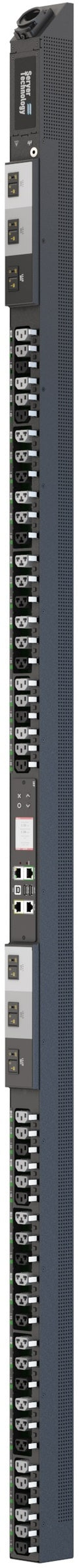

The Server Technology PRO4X C4W48RA-DQBD2FD3 is a high-density, intelligent switched PDU designed for modern data centers that require advanced power management, security, and reliability. Built on the powerful Xerus™ network interface platform, it delivers full remote access to power, PDU status, input and branch current monitoring, and per-outlet on/off control.
Equipped with HDOT Cx outlets (hybrid C13/C19), RamLock® self-locking mechanisms, and alternating-phase outlet distribution, this PDU ensures secure connections, simplified load balancing, and improved airflow. Its 45-degree angled infeed enhances accessibility, while the hot-swappable controller and RGB LED indicators provide real-time monitoring and flexible management.
The PDU supports extensive environmental monitoring with Legrand DX2 SmartSensors and offers enterprise-grade security with 256-bit AES encryption, LDAP/AD integration, and SNMP alerts. With branch circuit protection, waveform capture, and a high operating temperature rating (up to 60 °C), this PRO4X unit ensures safe, reliable, and efficient power distribution for mission-critical IT environments.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO4X |
| Model / SKU | C4W48RA-DQBD2FD3 |
| Type | Switched PDU |
| Network Interface | Xerus™ platform (HTTP/HTTPS, SSH, Telnet, SNMPv2/v3, LDAP, RADIUS, TACACS+) |
| Outlets | 48 total (24 × IEC C13, 24 × HDOT Cx hybrid C13/C19) |
| Outlet Features | HDOT Cx hybrid outlets, RamLock® locking, RGB LED status indicators, alternating phase layout |
| Input Voltage | 208V (50/60 Hz) |
| Input Plug | IEC 60309 60A 3P+G 9Hr (208V Delta) |
| Input Current | Rated 48A (Max 60A) |
| Power Capacity | 17.3 kW |
| Branch Circuit Protection | Six (6) × 20A UL489 magnetic-hydraulic breakers |
| Controller | Hot-swappable controller with local LCD |
| Power Monitoring | Per-inlet PIPS® (current, voltage, W, VA, PF, crest factor, energy) and per-outlet metering |
| Environmental Monitoring | Supports up to 12 daisy-chained DX2 SmartSensors (temperature, humidity, airflow, water, dust, vibration, etc.) |
| Dimensions | 80.0 in (H) × 2.2 in (W) × 2.5 in (D) / 2032 × 56 × 64 mm |
| Operating Environment | 0–60 °C, 5–90% RH non-condensing, <3000m elevation |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, ICES-003 Class A |
| Color Options | Black with selectable overlay colors (Red, Blue, Green, Yellow, White, etc.) |
| Warranty | 2-year limited (extended support available) |
