Description

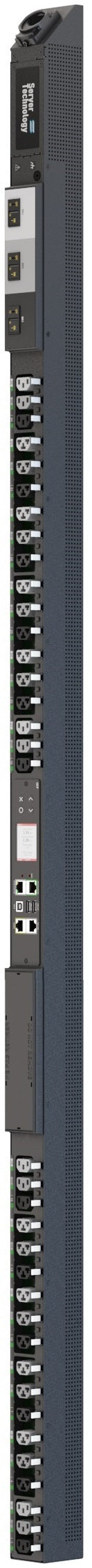

The Server Technology® PRO4X Switched PDU (C4W36RA-2CBE2FE2) delivers advanced power distribution, monitoring, and security features for modern data centers. Built on the Xerus™ platform, this PDU enables remote access to power status, input and branch current monitoring, and secure outlet control.
Equipped with HDOT Cx outlets—supporting both C13 and C19 plugs—and RamLock™ locking outlets, it ensures reliable connections and eliminates accidental disconnects. IT staff can reboot servers or shut off unused receptacles with outlet-level switching.
Additional features include per-inlet power sensing (PIPS®), multi-unit linking (up to 16 PDUs), environmental monitoring with SNMP/email alerts, and hot-swappable controller for serviceability. Its 45° angled infeed improves accessibility while RGB LED indicators and waveform capture enhance power quality diagnostics.
With support for 60°C high-temperature environments, branch circuit protection, and a full suite of communication protocols (SNMP, HTTPS, SSH, Syslog, LDAP, RADIUS, TACACS+), this PDU provides unmatched control, security, and flexibility in data center power management.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO4X Switched PDU |
| Model / SKU | C4W36RA-2CBE2FE2 |
| Outlets | 36 total: (12) x IEC 60320 C13, (24) x HDOT Cx (C13/C19 hybrid) |
| Input Plug | NEMA L6-30P |
| Input Voltage | 208V, 50/60Hz |
| Input Current | 30A (Rated: 24A) |
| Power Capacity | 5.0 kW |
| Features | HDOT Cx outlets, RamLock™ locking, RGB outlet LEDs, per-outlet switching, multi-unit linking, waveform capture |
| Monitoring | PIPS® per-inlet monitoring (V, A, W, VA, PF, crest factor, energy) |
| Communications | Dual Ethernet (10/100/1000), optional Wi-Fi, USB, RS-232, SNMP v2/v3, HTTPS/SSH/Telnet, LDAP/LDAPS, RADIUS, TACACS+ |
| Display | Multi-color LCD with local power/alarm indicators |
| Branch Protection | UL 489 circuit breakers (≤16A) |
| Dimensions | 70.0” H x 2.2” W x 2.5” D (1778 x 56 x 64 mm) |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Certifications | UL 62368-1, CSA 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited parts & labor (extended options available) |
