Description

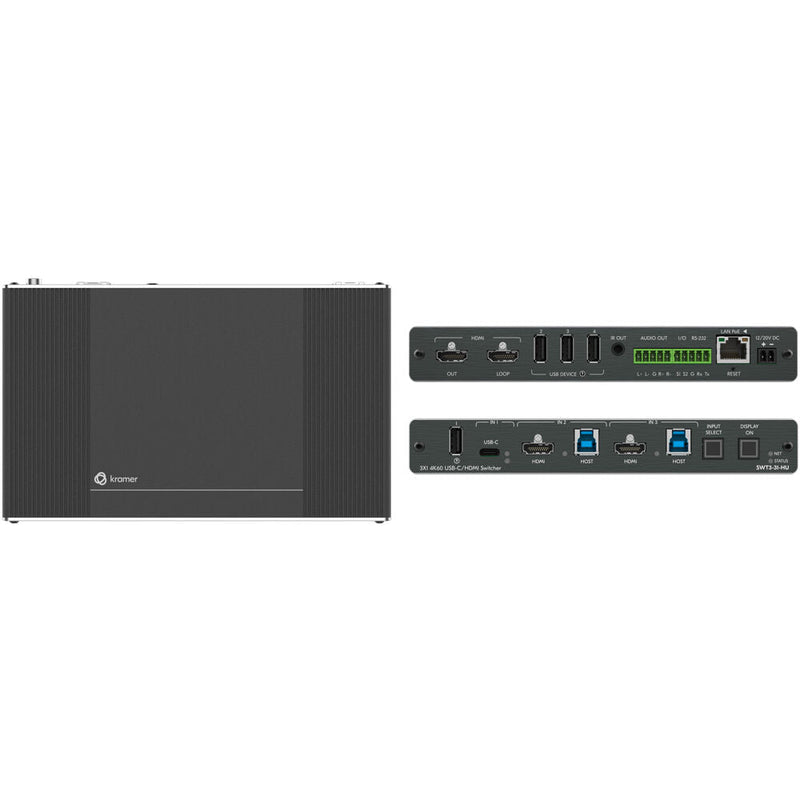

The Kramer SWT3-31-HU-TR is a high-performance 3×1 auto-switcher and HDBaseT 3.0 extender designed for advanced hybrid meeting spaces and modern BYOD environments. Equipped with one USB-C (DP Alt Mode + PD 3.0) and two HDMI inputs, it delivers seamless switching, 4K60 4:4:4 video distribution, and full-speed USB connectivity for room peripherals such as cameras, microphones, and interactive devices.

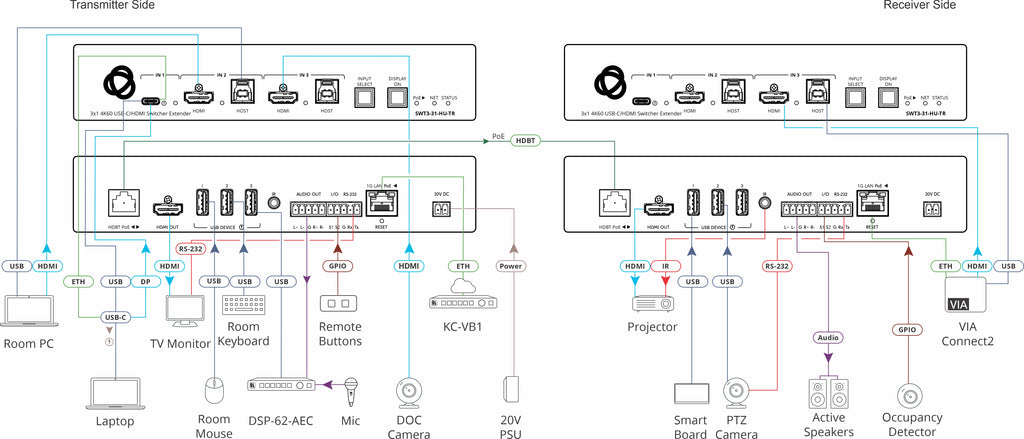

This flexible unit supports transmit or receive modes, enabling it to function as either a sender or receiver in an HDBaseT system. It extends HDMI, USB 2.0, Ethernet, RS-232, IR, and power over a single twisted-pair cable up to 100m. With intelligent USB routing, the switcher allows local or remote USB devices to dynamically pair with the active USB host—ideal for hybrid conferencing workflows.
Additional professional features include HDMI mirroring for local display, automatic switching, integrated audio de-embedding, CEC display control, PoE flexibility, and a built-in intelligent control gateway. Its half-rack form factor supports under-table or rack-mount installation, making the SWT3-31-HU-TR a powerful, space-efficient solution for corporate, education, and unified communication systems.
| Category | Details |
|---|---|
| Inputs | 1 USB-C (DP Alt Mode & PD 3.0), 2 HDMI, 1 HDBaseT (2-way PoE) |
| Outputs | 1 HDBaseT (2-way PoE), 1 HDMI, 1 Balanced Stereo Audio (5-pin terminal) |
| USB Ports | 3 USB 3.2 Host (USB-C & USB-B), 3 USB 3.2 Device (USB-A) |
| Ethernet | 1 RJ-45 (PoE, 1000Base-T LAN extension) |
| Control Ports | 1 RS-232 (3-pin), 1 IR (3.5mm), 2 GPIO (2-pin) |
| Extension Range | Up to 100m (330 ft) over HDBaseT 3.0 |
| Video Performance | 18Gbps, max resolution 4K@60Hz 4:4:4, HDR, Deep Color |
| HDCP | HDCP 2.3 compliant |
| USB Data Rates | USB 3.2 up to 10Gbps, extended USB 2.0 up to 480Mbps |
| Extended Ethernet | Up to 1Gbps |
| Audio | Max level 15dBu, 20Hz–20kHz bandwidth, THD+N 0.002%, S/N −93dB |
| Power Supply | 20V DC, max 6A (120W) |
| PoE Consumption | 144mA (7.8W max) |
| USB-C Charging | Up to 60W (PD 3.0) |
| Environmental | Operating 0°–40°C, Storage −40°–70°C, 10%–90% humidity |
| Regulatory | CE, UL, RoHS, WEEE |
| Enclosure | Half-rack 1U, aluminum, fan-ventilated |
| Product Dimensions | 21.46 × 16.30 × 4.36 cm (8.45" × 6.42" × 1.72") |
| Product Weight | 0.9 kg (1.9 lb) |
| Included Accessories | 20V power adapter & cords, USB-C multi-signal cable |
