Description

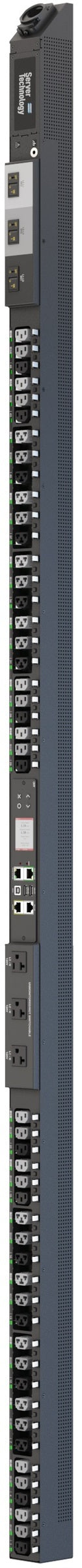

The Server Technology PRO4X Switched PDU delivers advanced power distribution and management capabilities tailored for today’s mission-critical data centers. Built on the Xerus™ network interface platform, this intelligent PDU provides secure remote access to power controls, detailed input and branch current monitoring, and per-outlet on/off control.
Equipped with HDOT Cx outlets, each outlet supports both C14 and C20 plugs, ensuring maximum flexibility for mixed-device deployments. The patented RamLock™ self-locking mechanism prevents accidental cord disconnects, enhancing uptime reliability.
Operators gain comprehensive visibility with multi-color LCD indicators, RGB LED outlet status lights, and waveform capture for real-time power quality monitoring. The PRO4X also supports cascading of up to 16 PDUs through a single IP, simplifying management. Environmental monitoring is available via plug-and-play DX2 SmartSensors, alerting administrators to changes in temperature, humidity, airflow, water detection, and more.
Designed for demanding environments, the PRO4X is UL 62368-1 certified, rated for operation at 60 °C, and includes alternating-phase outlets for simplified load balancing. With advanced security protocols including 256-bit AES encryption, SSH, SSL, HTTPS, and LDAP(S) support, this PDU ensures both reliable performance and robust cybersecurity.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO4X Series |
| Model / SKU | C4W48RA-YCBE2FD8/20Y1 |
| Outlets | 51 × HDOT Cx (hybrid C13/C19, supports C14 & C20 plugs) |
| Outlet Features | RamLock self-locking mechanism, RGB LED indicators, per-outlet on/off control |
| Input Power | 45° angled infeed, compatible with 60A rated cords |
| Power Monitoring | Per Inlet Power Sensing (PIPS®), waveform capture, power quality alerts (harmonics, crest factor, voltage dips/swells) |
| Environmental Monitoring | Supports up to 12 DX2-series SmartSensors (temperature, humidity, airflow, water, dry contact, pressure differential) |
| Display & Indicators | Multi-color LCD display, RGB LED outlet indicators |
| Multi-Unit Linking | Cascade up to 16 PDUs via USB or Ethernet under one IP |
| Security Protocols | 256-bit AES encryption, SSH, SSL, HTTPS, Active Directory, LDAP(S) |
| Controller | Hot-swappable, houses computing, display, and network connectivity |
| Branch Circuit Protection | UL 489 circuit breakers or UL 248 fuses |
| Operating Temp. | Rated for up to 60 °C environments |
| Mounting Options | Standard button mounts with provisions for custom brackets |
| Color Options | Black, White, Red, Green, Blue, Yellow |
| Compliance | UL and IEC 62368-1 certified |
