Description

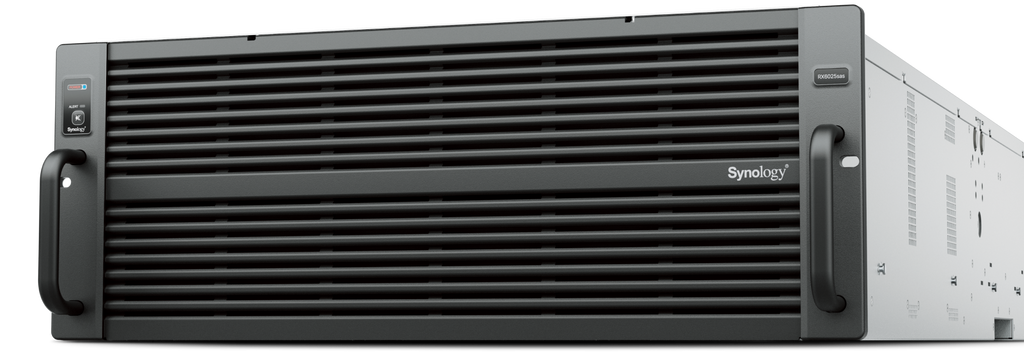

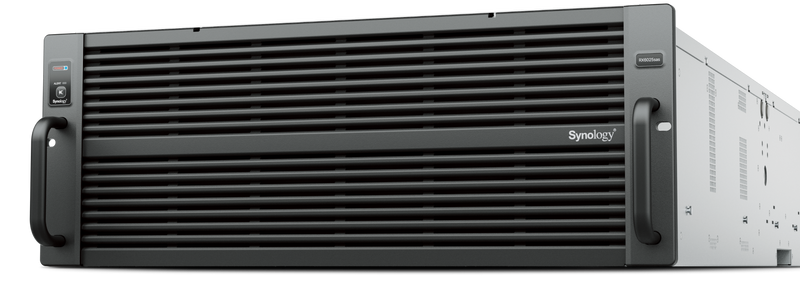

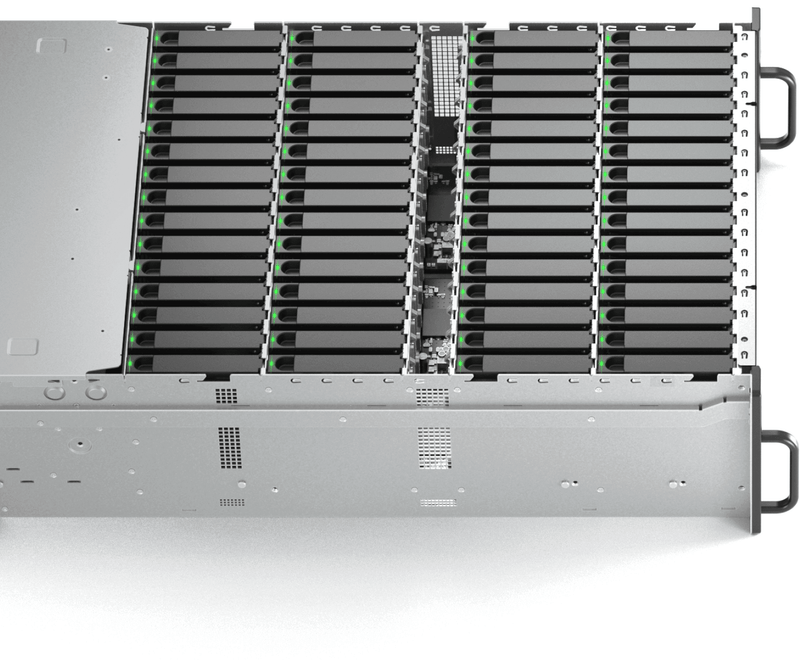

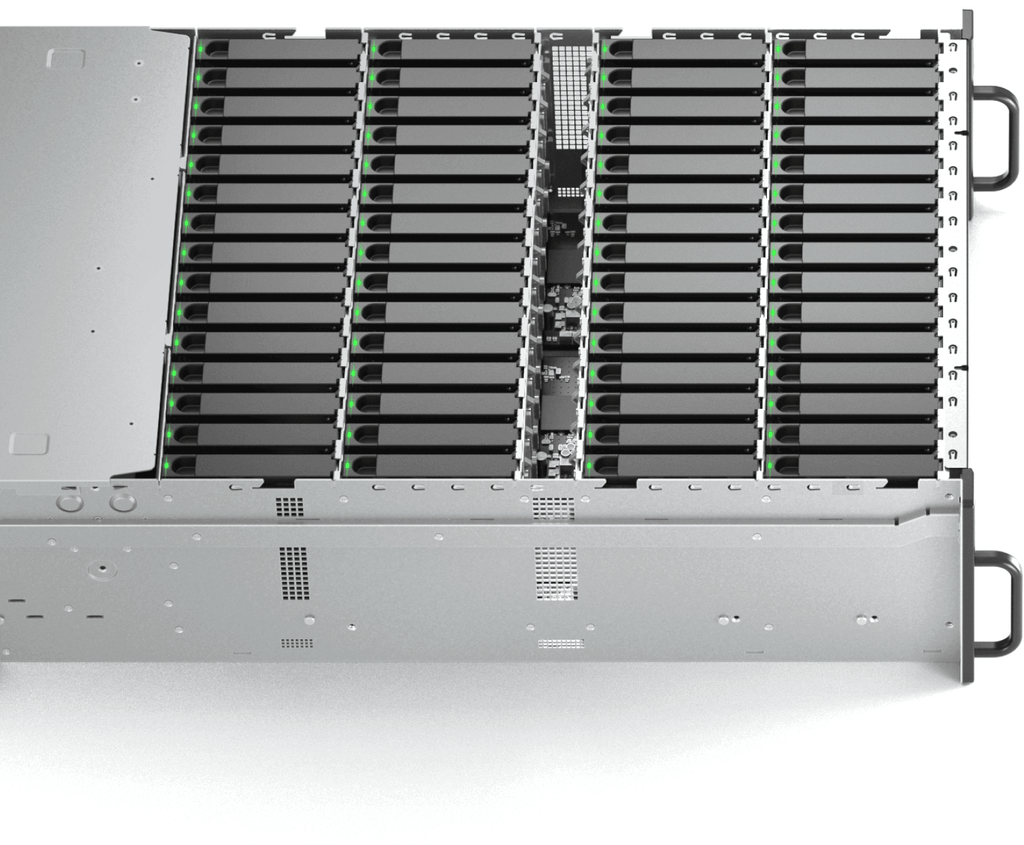

The Synology RX6025sas is a 4U rackmount expansion unit designed to extend the storage capacity of Synology HD6500 servers with seamless scalability and enterprise-grade reliability. Supporting up to 60 additional 3.5" Synology SAS HDDs or 2.5" Synology SATA SSDs, it enables effortless capacity expansion with minimal downtime. Featuring plug-and-play integration, redundant power supplies, and multi-path SAS connectivity, the RX6025sas ensures uninterrupted data access and fault-tolerant operation for mission-critical environments.
Optimized for Synology’s HAS5300 SAS HDDs and SAT5200 SSDs, this expansion unit guarantees maximum compatibility, performance, and reliability under Synology’s unified DiskStation Manager (DSM) platform. With tool-less serviceability, hot-swappable drives and fans, and a 5-year limited hardware warranty, the RX6025sas delivers dependable scalability for data centers, surveillance archives, and large enterprise storage infrastructures.
| Specification | Details |
|---|---|
| Model | Synology RX6025sas |
| Form Factor | 4U Rackmount Expansion Unit |
| Drive Bays | 60 × 3.5" Synology SAS HDDs or 2.5" Synology SATA SSDs (drives sold separately) |
| Hot-Swappable Drives | Supported |
| External Ports | 1 × SAS IN, 1 × SAS OUT (Mini-SAS HD) |
| Power Supply | Dual redundant PSUs |
| Cooling | 4 × 80 × 80 × 38 mm system fans |
| Dimensions (H × W × D) | 176 × 438 × 985 mm / 176 × 482 × 1,020 mm (with handles) |
| Weight | 33.9 kg |
| Input Voltage | 200V–240V AC |
| Frequency | 50/60 Hz, single-phase |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Operating Humidity | 8%–80% RH |
| Maximum Operating Altitude | 5,000 m |
| Environmental Compliance | RoHS Compliant |
| Included Accessories | RX6025sas Main Unit, RKS-03 Rail Kit, 2 × Power Cables, 2 × Expansion Cables, Accessory Pack, Quick Installation Guide |
| Optional Accessories | Synology HAS5300 3.5" SAS HDDs, Synology SAT5200 2.5" SATA SSDs |
| Warranty | 5-Year Limited Warranty |
| System Requirement | DSM 7.2.2-72806 Update 2 or later |
| Compatibility | Designed for Synology HD6500 Enterprise Servers |
