Description

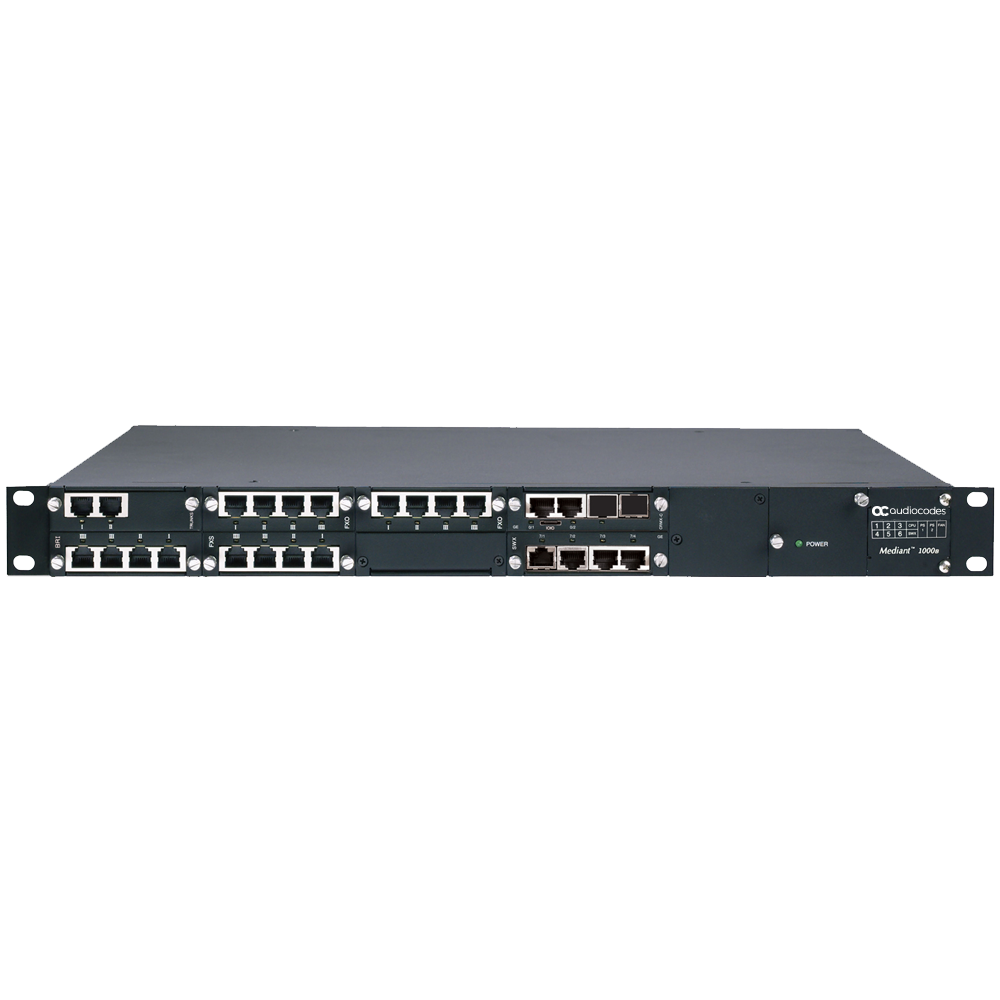

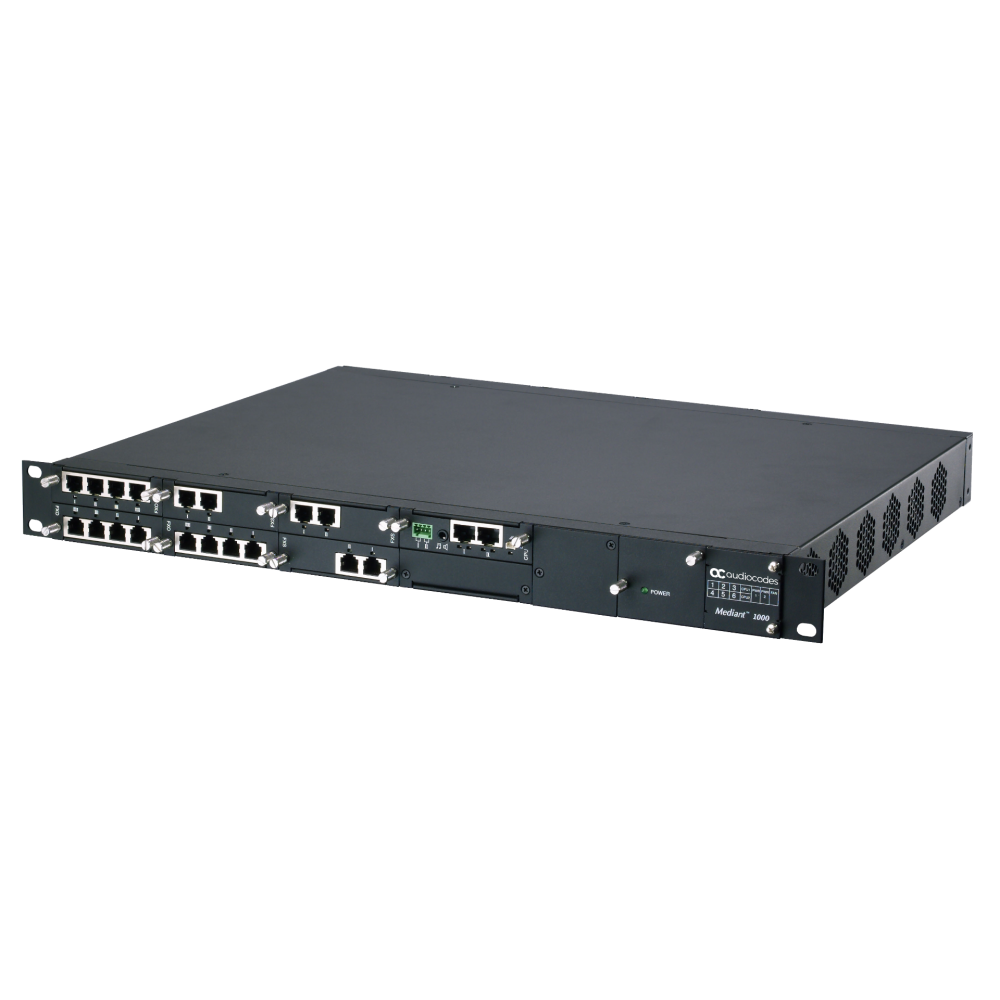

The AudioCodes Mediant 1000B (M1KB-2AC-TAA) is a modular, high-performance enterprise VoIP chassis designed for flexible and scalable communication deployments. It features three Gigabit Ethernet ports for robust network connectivity and dual AC power supplies for enhanced operational reliability.
Engineered for hybrid environments, the Mediant 1000B supports combinations of digital, analog, and BRI telephony modules, enabling support for up to 192 voice channels and extensive SBC functionality. Its media processing engine includes advanced codec support, echo cancellation, jitter buffering, survivability, and secure signaling with TLS, SRTP, HTTPS, and IPsec.
Ideal for enterprise and government use, this TAA-compliant chassis integrates seamlessly with SIP trunking, legacy PBX systems, IP-PBXs, and unified communications platforms. Its modular architecture ensures long-term scalability and adaptability as network requirements evolve.
| Category | Specification |
|---|---|
| Model | AudioCodes Mediant 1000B |
| SKU | M1KB-2AC-TAA |
| Compliance | TAA Compliant |
| Form Factor | 1U, rack-mount or desktop |
| Dimensions | 1U x 444 x 355 mm |
| Weight | Approx. 9.7 lb (4.4 kg) |
| Ethernet Ports | Up to 3–6 GE interfaces (redundancy or standalone configuration) |
| Power Supply | Dual AC (100–240V, 50–60Hz, 1.5A max) |
| Redundancy | Supported for power and network interfaces |
| Modular Slots | 6 bays for telephony and processing modules |
| Digital Telephony | Up to 6 E1 or 8 T1/J1 spans (1, 2, or 4-span modules) |
| Analog Telephony | Up to 24 FXS or 24 FXO ports (4-port modules) |
| BRI Modules | Up to 20 BRI ports (4 per module, NT/TE mode) |
| Media Processing | Up to 4 DSP/MPM modules |
| Max Signaling Sessions | 150 |
| Max RTP/SRTP Sessions | 120 |
| Max Transcoding Sessions | 96 |
| Max Registered Users | 600 |
| Supported Codecs | G.711, G.723.1, G.726, G.729A/B, AMR-NB, G.722, iLBC, GSM-EFR, and more |
| Voice Enhancements | Echo cancellation, jitter buffer, PLC, VAD, CNG, RTCP-XR |
| Fax Support | T.38 with fallback |
| DTMF Support | RFC 2833, in-band, SIP INFO |
| Security Protocols | TLS, SRTP, HTTPS, SSH, SIP Digest, RADIUS |
| Network Protection | DoS/DDoS protection, RTP pinhole management, blacklisting |
| Survivability | Local branch survivability, PSTN fallback including E911 |
| SIP Features | B2BUA, SIP interworking, transport mediation, header manipulation |
| Mounting Options | Desktop or 19" rackmount |
| Operating Temperature | 0–40°C (32–104°F) |
| Storage Temperature | -20–70°C (-4–158°F) |
| Humidity | 10–85% non-condensing |
