Description

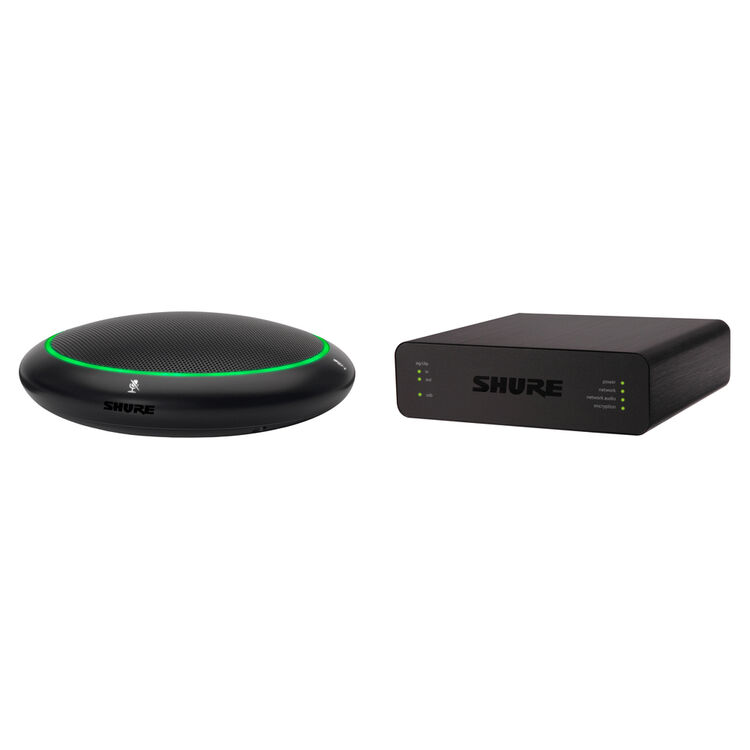

The Shure MXA310B-USB-P AV Conferencing Bundle delivers a complete, enterprise-grade audio solution for modern meeting rooms and collaboration spaces. Combining the MXA310 Microflex Advance Table Array Microphone with the ANIUSB-MATRIX USB Audio Network Interface, this bundle provides precise voice capture, flexible connectivity, and seamless integration with leading conferencing platforms.

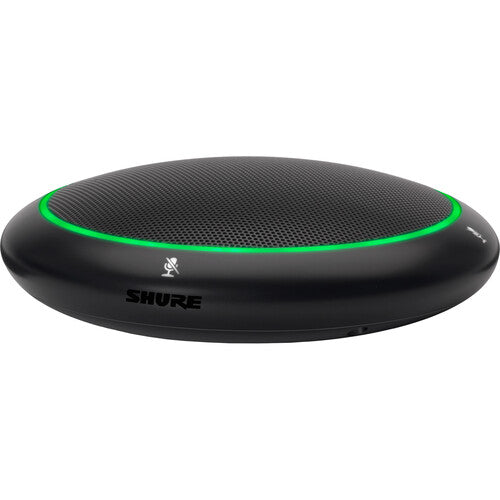

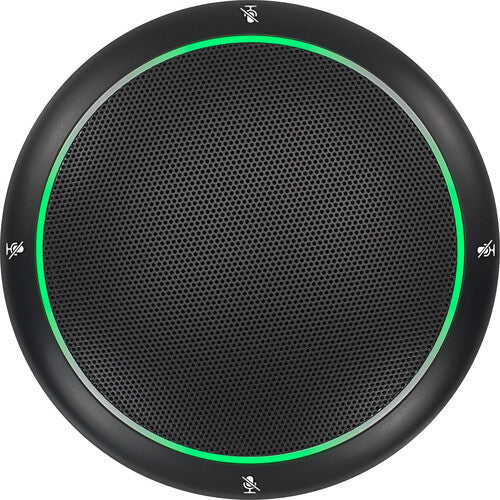

Designed for boardrooms, huddle spaces, and multipurpose environments, the MXA310 features Shure’s advanced Steerable Coverage technology with four independent lobes for accurate voice pickup anywhere around the table. Multiple selectable polar patterns, including toroid for table-level sound isolation, ensure exceptional clarity while minimizing background noise such as HVAC interference. Built-in auto-mixing and DSP enhance intelligibility, while the programmable LED ring and capacitive mute controls provide intuitive user interaction.

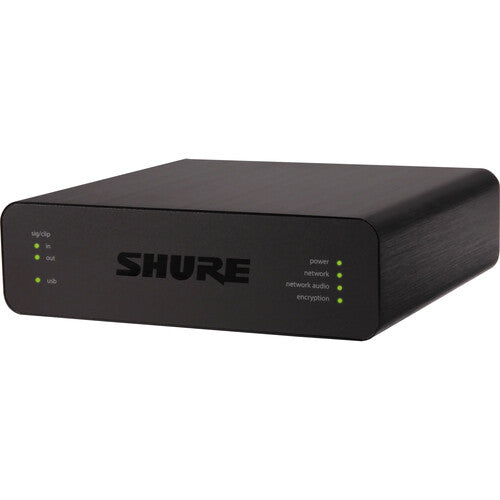

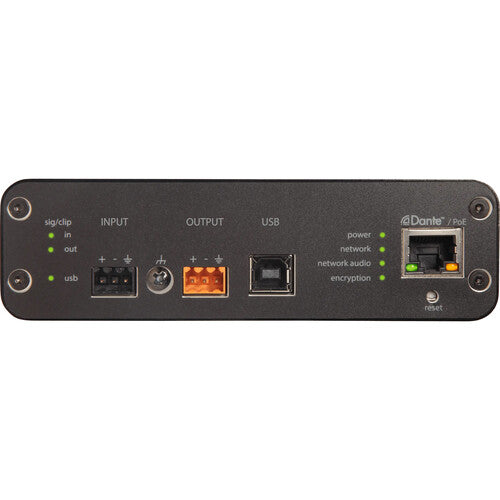

The ANIUSB-MATRIX interface enables effortless integration with laptops, room systems, and conferencing platforms through USB, Dante, and analog connectivity. Its internal matrix mixer allows flexible routing of audio signals, while Power over Ethernet simplifies installation by eliminating the need for external power supplies.
Together, this bundle offers a scalable, networked audio solution with secure transmission, simplified deployment, and consistent performance, making it ideal for professional AV environments that demand reliability and clarity.
| Specification | Details |
|---|---|
| Microphone Type | Table Array Conferencing Microphone |
| Included Components | MXA310 Microphone, ANIUSB-MATRIX Interface, Mounting Hardware |
| Color | Black |
| Pickup Technology | Steerable Coverage with 4 Independent Lobes |
| Polar Patterns | Cardioid, Supercardioid, Hypercardioid, Toroid, Omnidirectional, Bidirectional |
| Frequency Response | 100 Hz to 20 kHz |
| Dynamic Range | Up to 96 dB |
| Maximum SPL | 115.2 dB SPL |
| Signal-to-Noise Ratio | Up to 75 dB |
| DSP Features | Auto-Mixing, 4-Band Parametric EQ, Gain Control, Low-Cut Filter |
| Channel Count | 4 Discrete Channels + 1 Automix Channel |
| Digital Audio Output | Dante / AES67 |
| Connectivity (Interface) | Dante (4 In / 2 Out), USB (1 In / 1 Out), Analog (1 In / 1 Out) |
| Audio Routing | Internal Matrix Mixer with Flexible Signal Routing |
| Power | Power over Ethernet (PoE) |
| Control Interface | Browser-Based (HTML5) |
| Latency | <1 ms (excluding network latency) |
| Mounting Options | Surface Mount or Flush Mount (optional accessory) |
| LED Indicators | Configurable Multicolor LED Ring |
| Mute Control | Capacitive Touch with Multiple Modes |
| Network Security | AES-256 Encryption (with compatible devices) |
| Operating Temperature | -6°C to 40°C |
| Dimensions (Microphone) | 5.3 x 5.3 x 1.4 in |
| Weight (Microphone) | 12.8 oz |
| Certifications | CE, FCC Part 15, CAN ICES-3 (B) |
