Description

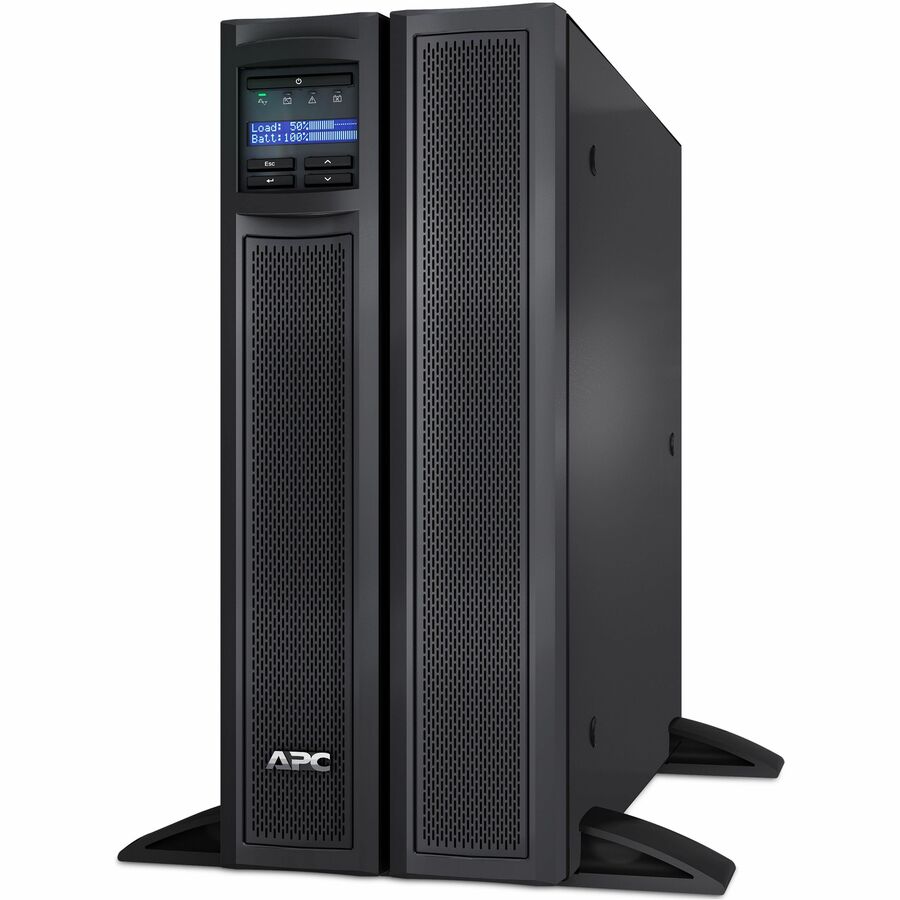

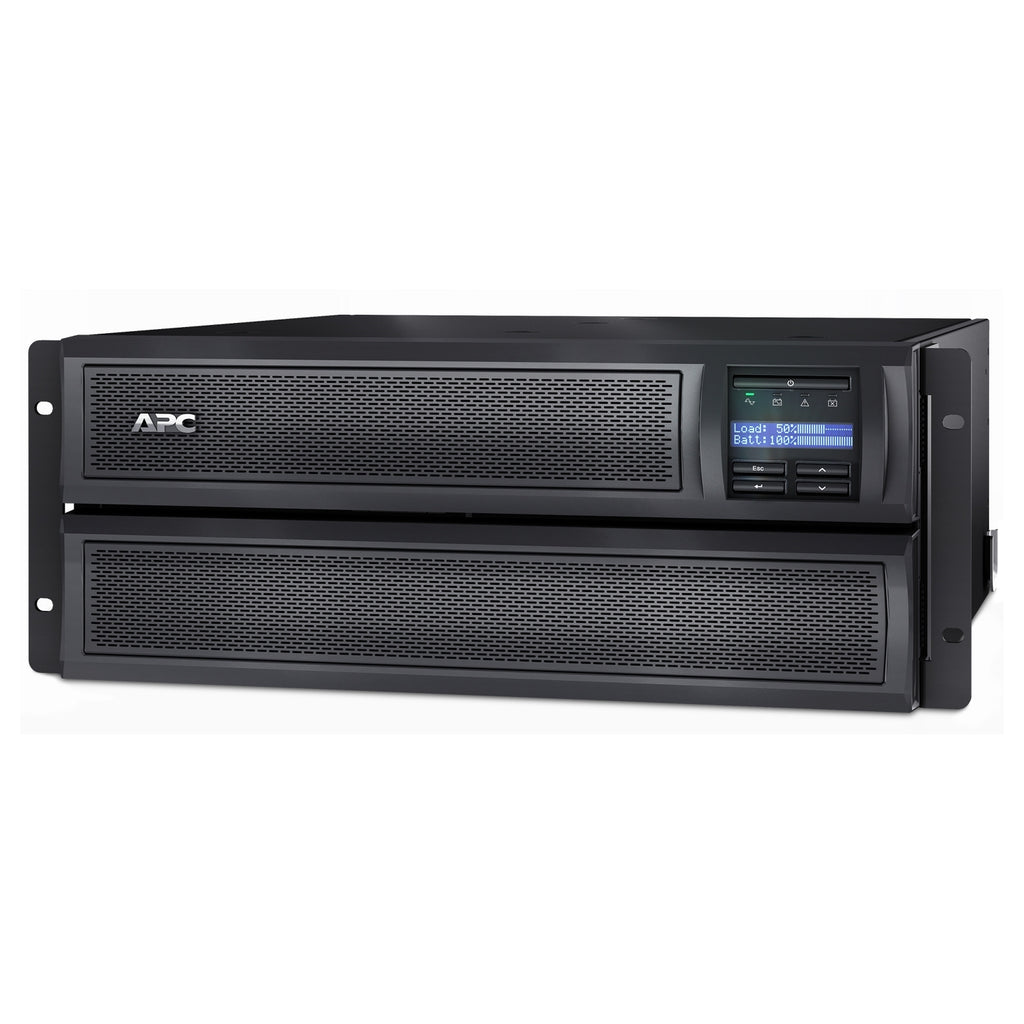

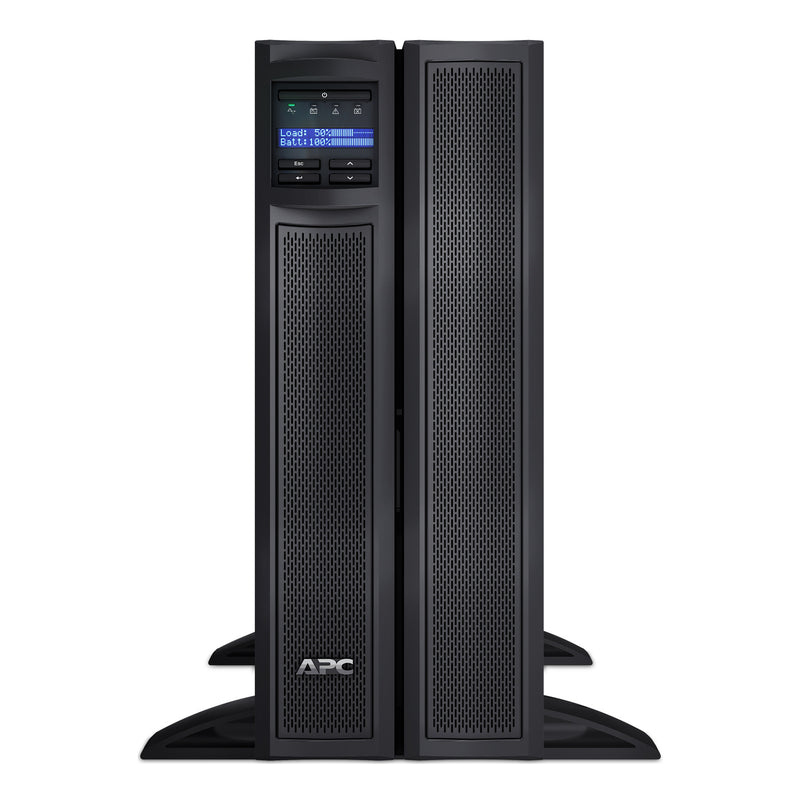

Ensure business continuity during power interruptions with the APC Smart-UPS X SMX3000LV. This 2880VA/2700W line interactive UPS delivers pure sine wave output in a convertible 4U rack/tower form factor. Featuring a short-depth design for improved cable management, it includes 6x NEMA 5-15R, 3x 5-20R, and 1x L5-30R outlets. The SmartSlot supports optional network management cards for PowerChute Serial Shutdown and remote monitoring. It supports up to 10 external battery packs for extended runtime and is compatible with APC RBC143 replacement battery. Ideal for servers, POS, and networking gear.
| Specification | Details |
|---|---|
| Model | APC Smart-UPS X SMX3000LV |
| Form Factor | Rack/Tower Convertible 4U |
| Power Capacity | 2880VA / 2700W |
| Input Voltage | 100V – 127V (NEMA L5-30P) |
| Output Voltage | 100V / 110V / 120V / 127V |

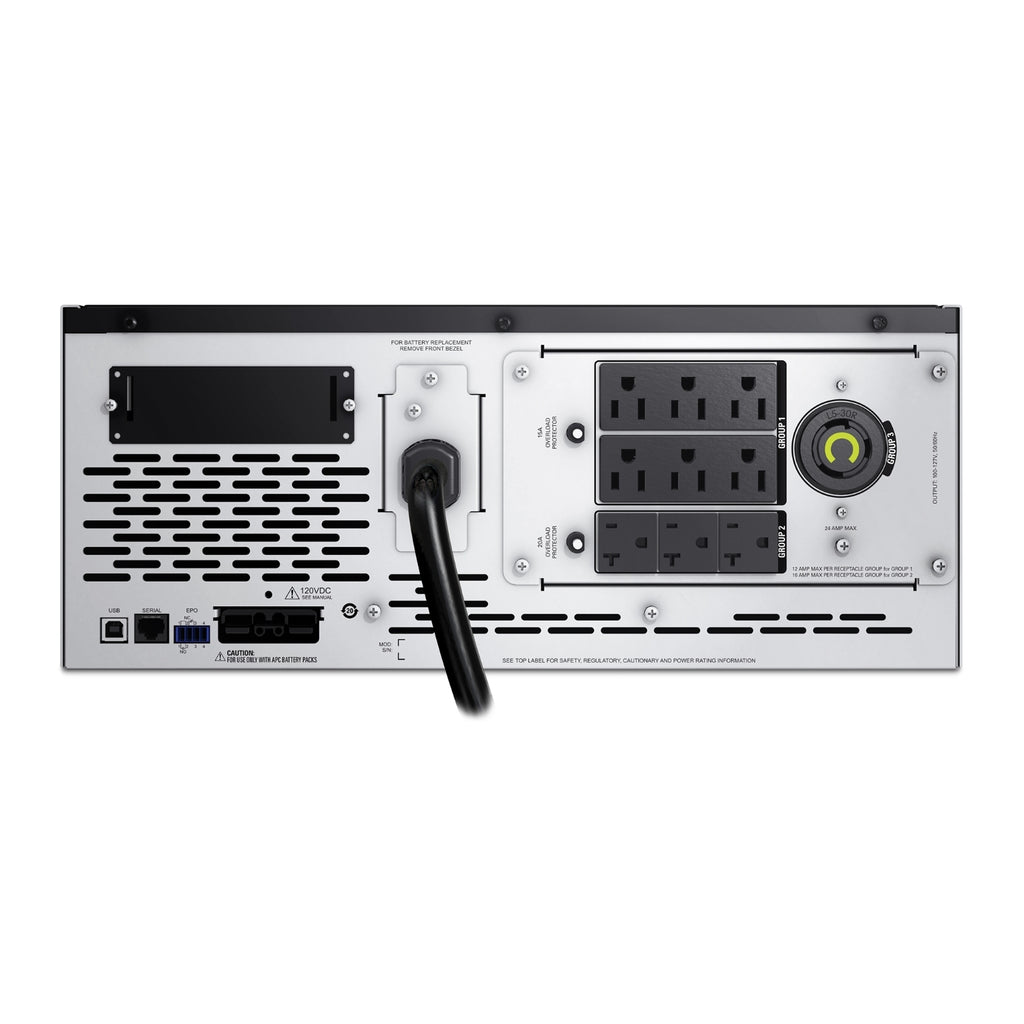

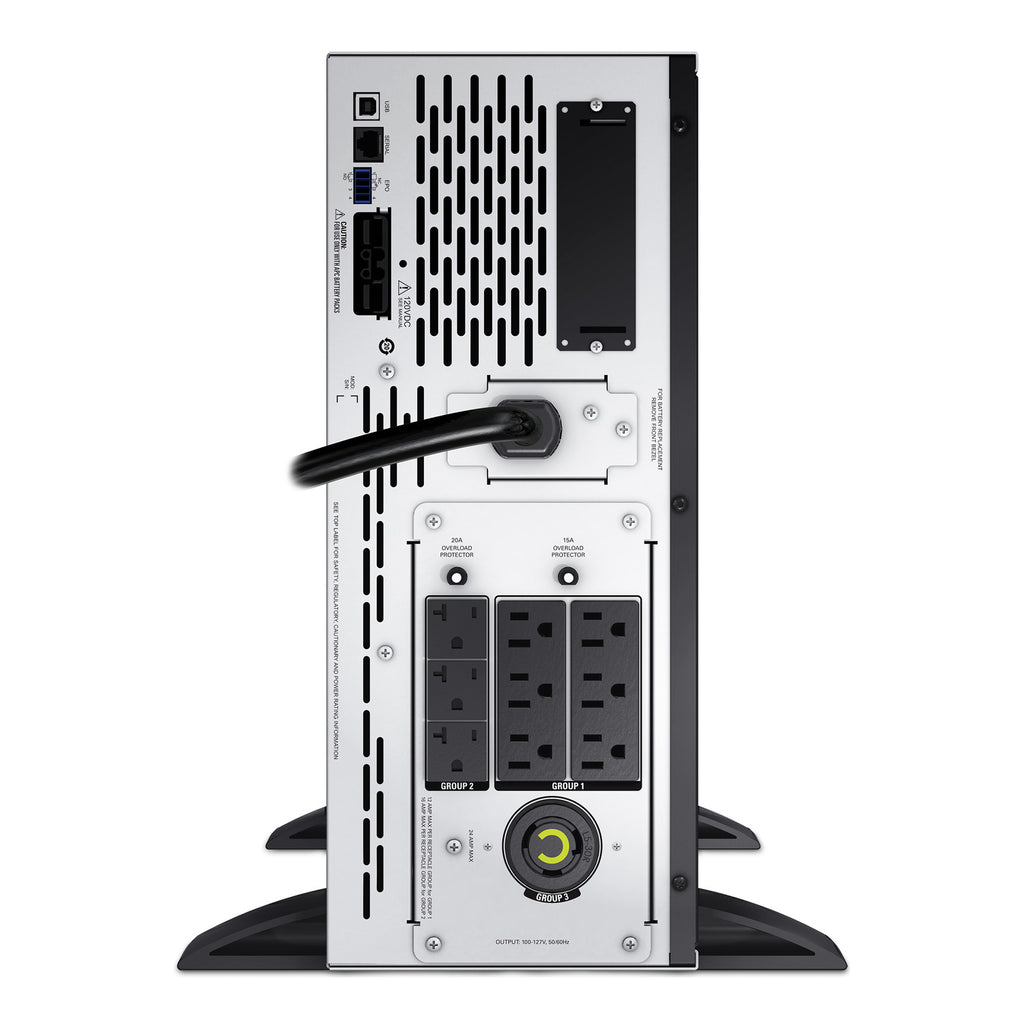

| Output Connections | 6x NEMA 5-15R, 3x NEMA 5-20R, 1x NEMA L5-30R |

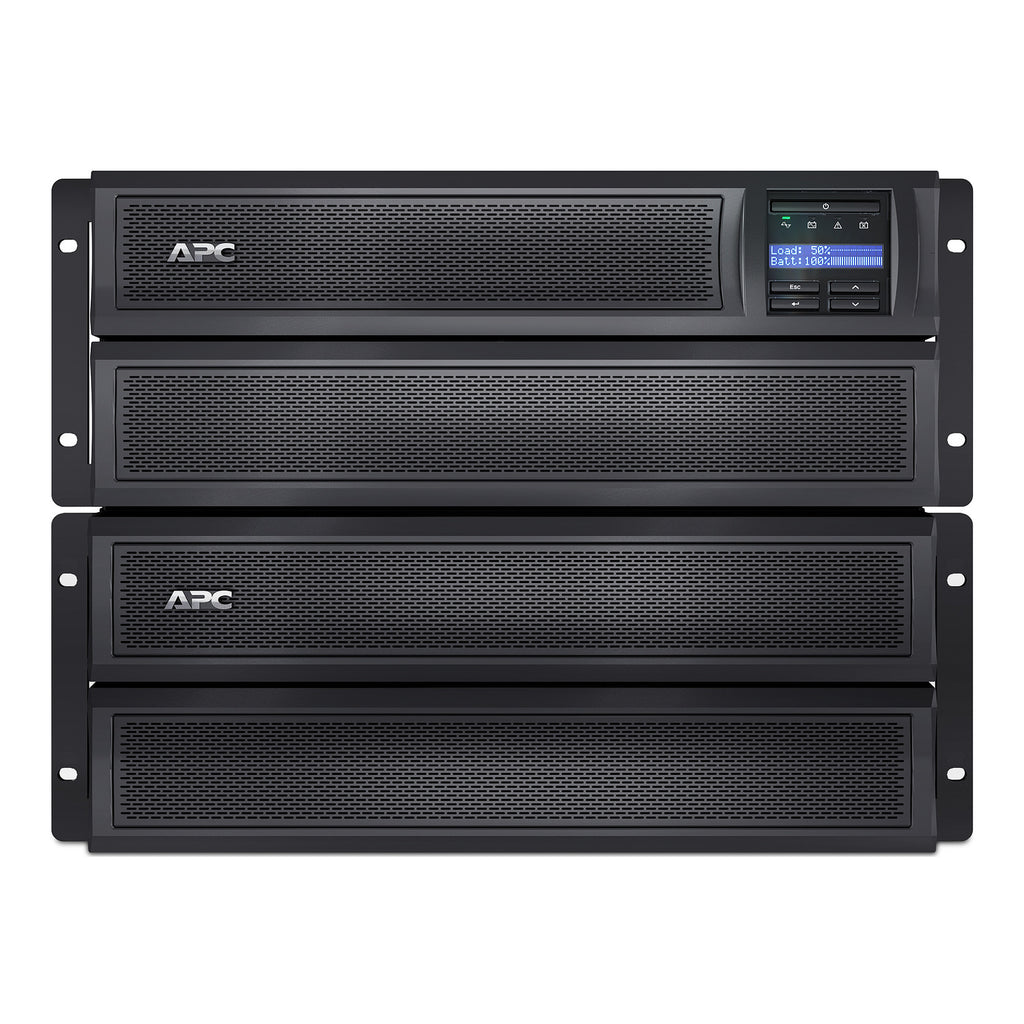

| Runtime Expandability | Supports up to 10x SMX120BP battery packs |
| Battery Type | Lead-acid, RBC143 (120V 5Ah), 3–5 year life |
| Replacement Battery | APC RBC143 – $479.00 |
| Recharge Time | 3 hours |
| Communication Ports | SmartSlot, Serial, USB |
| Control Panel | Multi-function LCD, LED status indicators |
| Emergency Power Off (EPO) | Yes |
| Topology | Line Interactive with Pure Sine Wave |
| Transfer Time | 4ms typical / 8ms max |
| Surge Protection | 540 Joules |
| Mounting Hardware | Tower feet, rack brackets, support rails included |
| Color | Black |
| Dimensions (H x W x D) | 17.01" x 7.01" x 19.02" (43.2 x 17.8 x 48.3 cm) |
| Weight | 85.19 lbs (38.64 kg) |
| Operating Temp/Humidity | 0–40°C / 0–95% RH |
| Warranty | 3 years UPS, 2 years battery |
| Certifications | CSA, NOM, BSMI, TÜV, VCCI Class A |
| Software Support | PowerChute Serial Shutdown, EcoStruxure IT compatible |
