Description

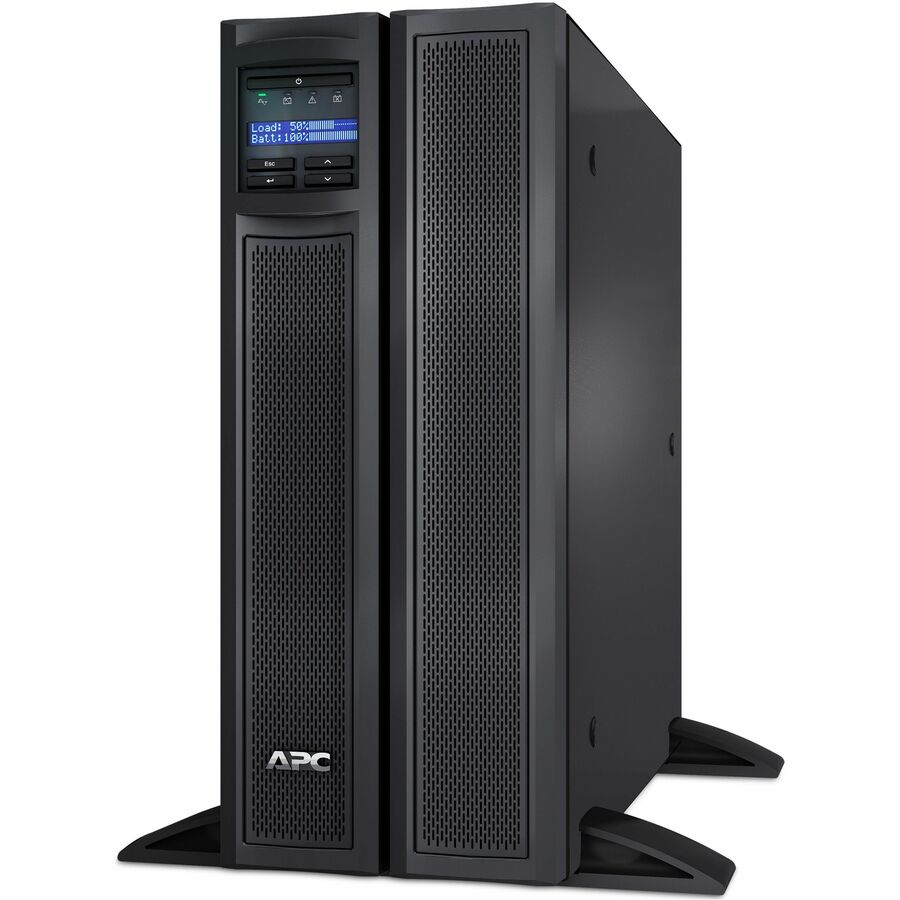

The APC Smart-UPS X SMX3000LVNC delivers reliable, scalable power protection for critical IT and network infrastructure. This 2880VA/2700W line-interactive 4U rack/tower UPS provides pure sine wave output and extended runtime capability. It features 10 NEMA outlets (6x 5-15R, 3x 5-20R, 1x L5-30R), NEMA L5-30P input, and includes a preinstalled Network Management Card (NMC) for remote monitoring and control. With short-depth design, user-selectable input voltages, and external battery support (up to 10x SMX120BP packs), this Smart-UPS is ideal for space-constrained IT environments. Compatible with APCRBC143 replacement battery.
| Feature | Details |
|---|---|
| Model | SMX3000LVNC |
| UPS Type | Line Interactive |
| Form Factor | 4U Rack/Tower Convertible |
| Rated Power | 2880VA / 2700W |
| Input Voltage | 100–127V, NEMA L5-30P plug |
| Output Voltage | 100V / 110V / 120V / 127V |

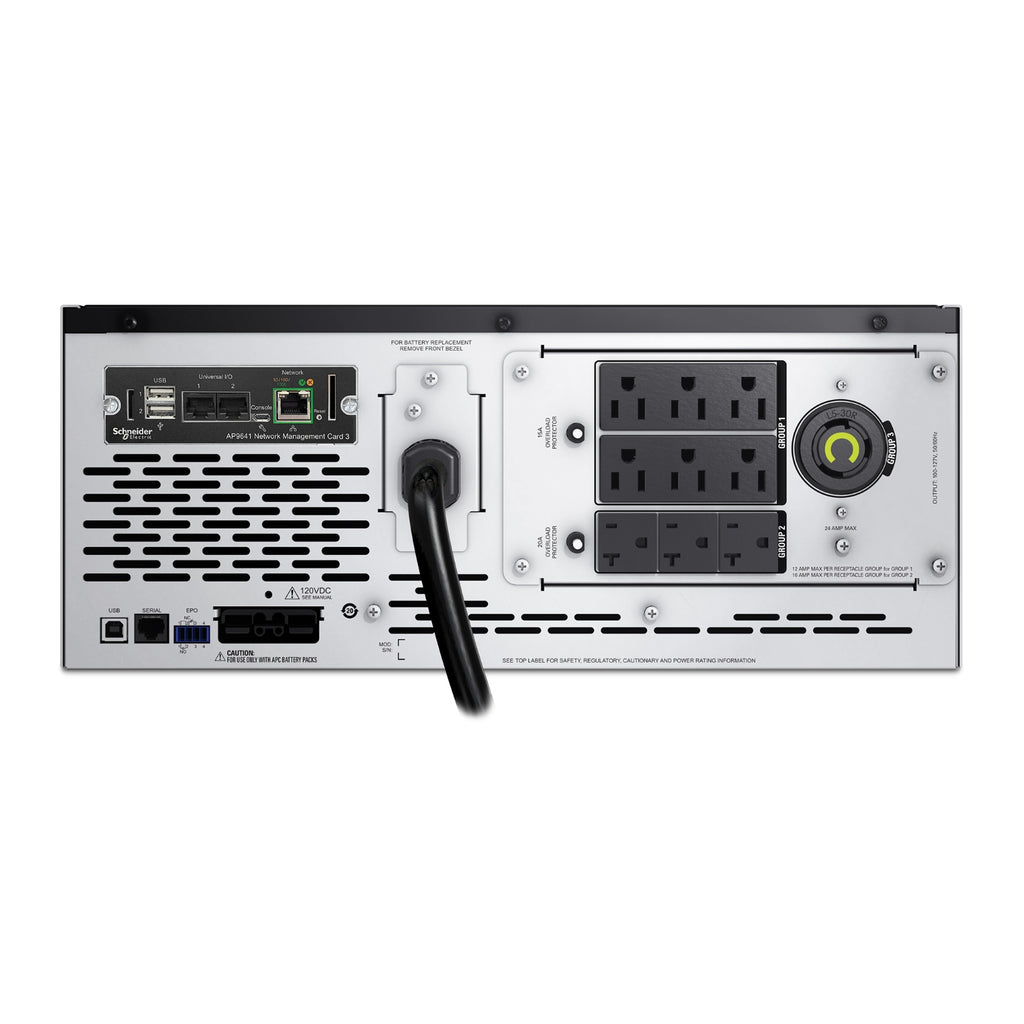

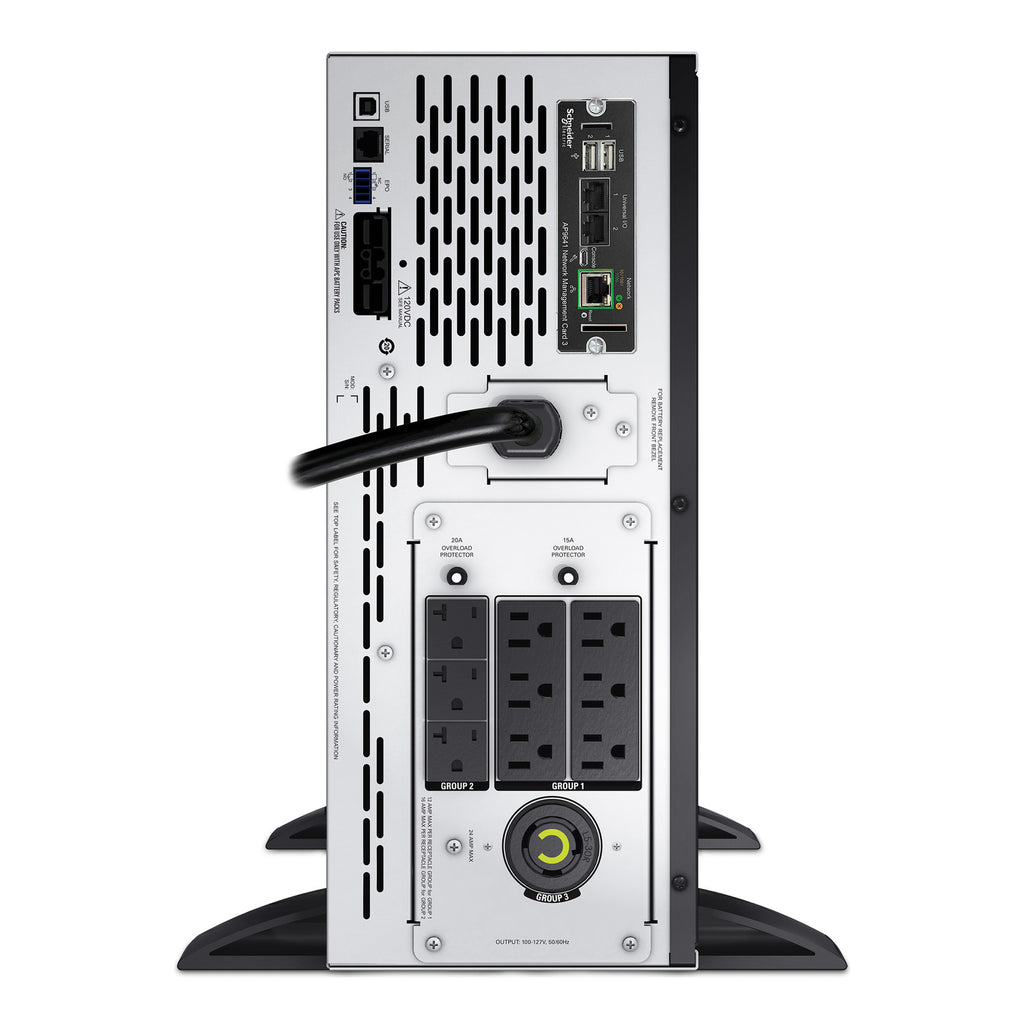

| Output Connections | 6x NEMA 5-15R, 3x NEMA 5-20R, 1x NEMA L5-30R |
| Battery Type | Lead-acid, user-replaceable (APCRBC143) |
| Battery Runtime | 6 min 15 sec at full load (2700W) |
| External Battery Support | Supports up to 10x SMX120BP packs |
| Network Management | Preinstalled Network Management Card |
| Interface | LCD status screen, USB, RS-232, SmartSlot |
| Included Accessories | Mounting hardware, support rails, software CD, AP9335T temp sensor |
| Certifications | BSMI, CSA, NOM, TÜV, VCCI Class A |
| Warranty | 3 years UPS / 2 years battery (APCRBC143), optional extensions available |

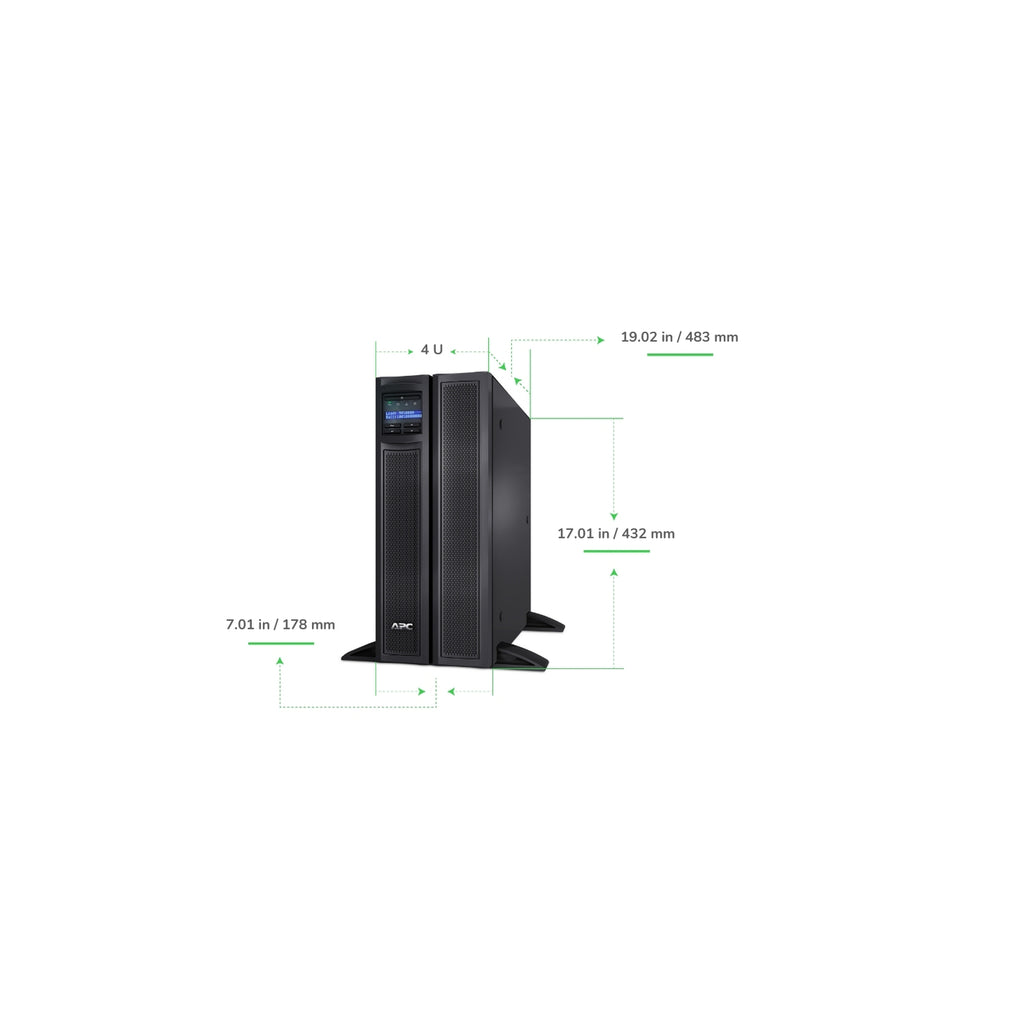

| Dimensions (H x W x D) | 17.01" x 7.01" x 19.02" (43.2 x 17.8 x 48.3 cm) |
| Weight | 85.19 lbs (38.64 kg) |
| Operating Temp / Humidity | 0–40°C / 0–95% RH (non-condensing) |
| Noise Level | 55 dBA |
| Surge Protection Rating | 540 Joules |

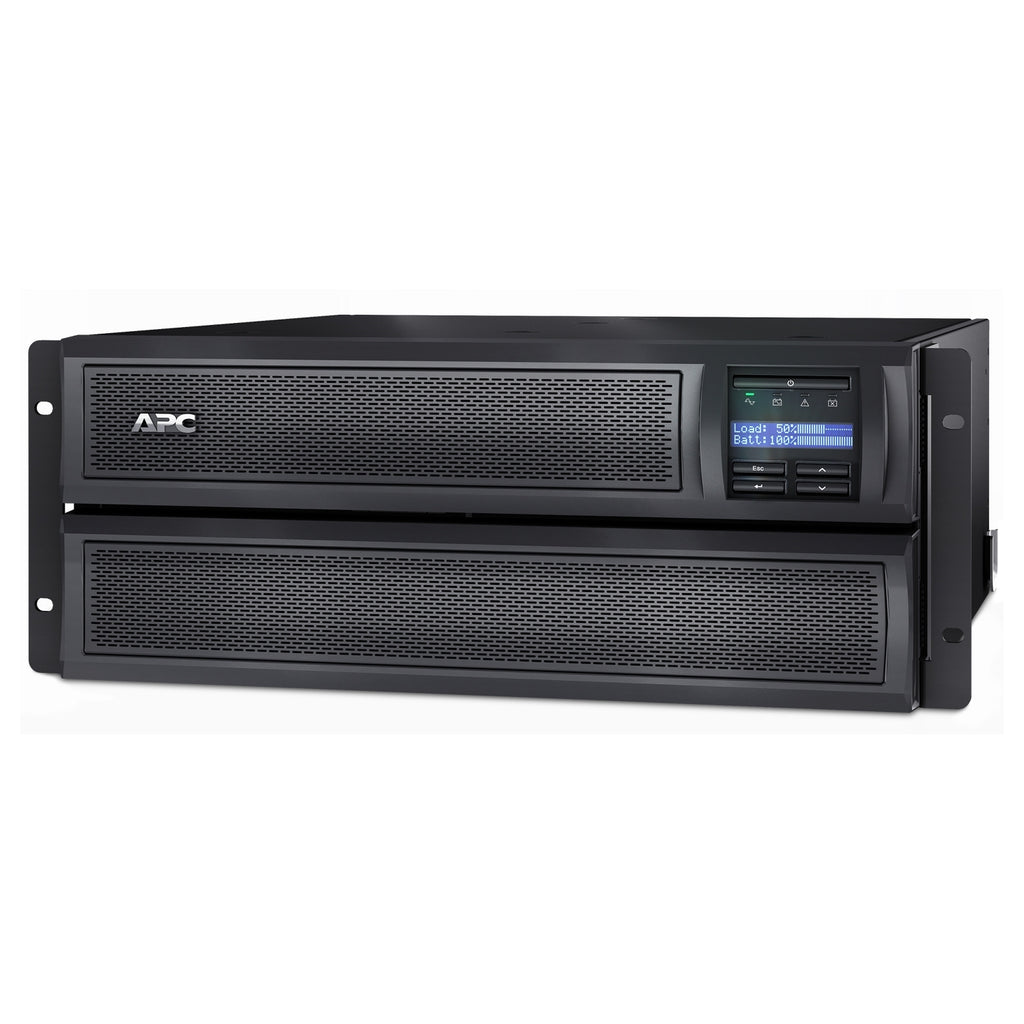

| Mounting Options | Rack-mount and Tower with stabilizing feet |
| Special Features | Short depth, 3 switchable outlet groups, Emergency Power Off (EPO) support |
