Description

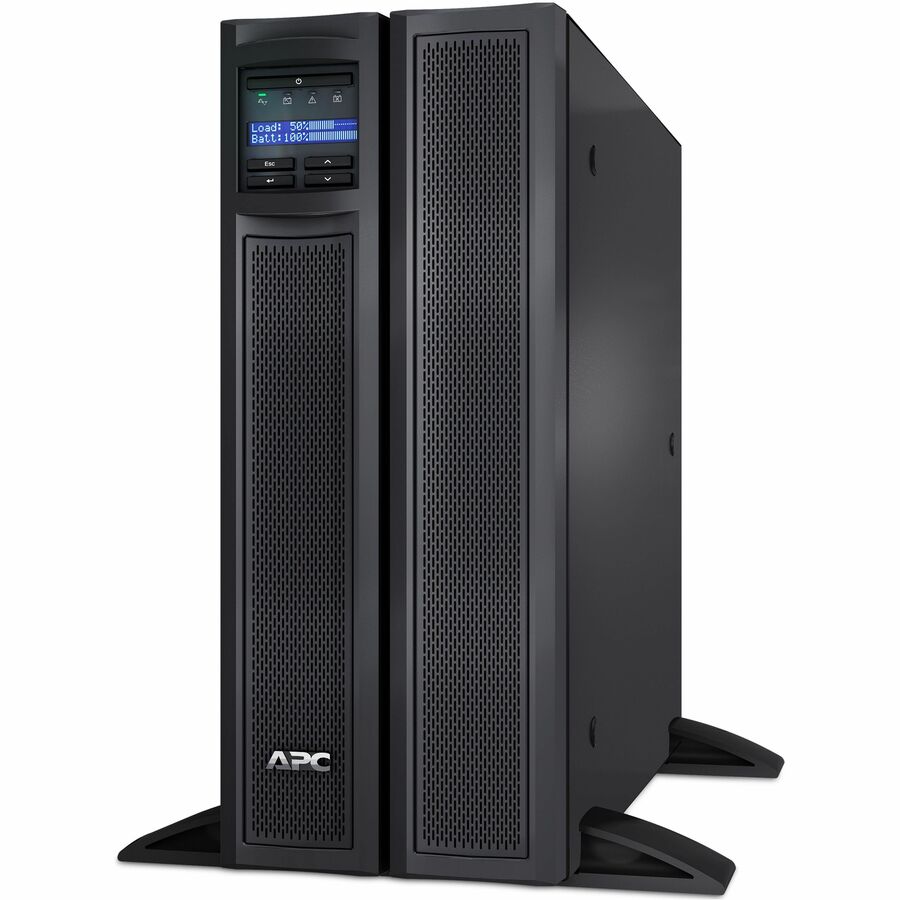

This APC Smart-UPS is engineered for IT managers and network administrators to ensure seamless business operations during power disturbances. The SMX3000HV is a 3kVA/2700W line-interactive 4U UPS that delivers pure sine wave output, suitable for servers, switches, and critical network gear.
The UPS features 8x IEC C13 and 2x IEC C19 outlets, powered via an IEC C20 input, and comes with multiple power cords for versatile compatibility. A SmartSlot enables remote monitoring and shutdown through optional network management cards and PowerChute Serial Shutdown.

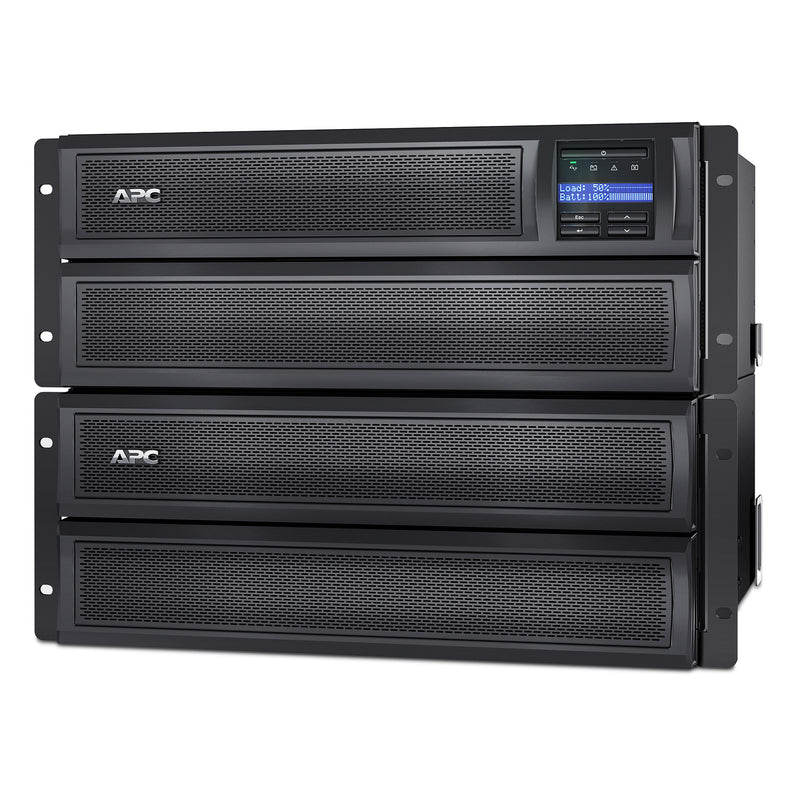

Designed with a short-depth chassis, the SMX3000HV provides extra space for cable routing in tight rack environments. It supports extended runtime with up to 10 external battery packs (SMX120BP) and is compatible with the APC APCRBC143 replacement battery.
Included accessories: rack-mounting kit, tower stabilizer feet, USB/RS-232 cables, and user documentation.
| Specification | Details |
|---|---|
| Model Number | SMX3000HV |
| Topology | Line Interactive |

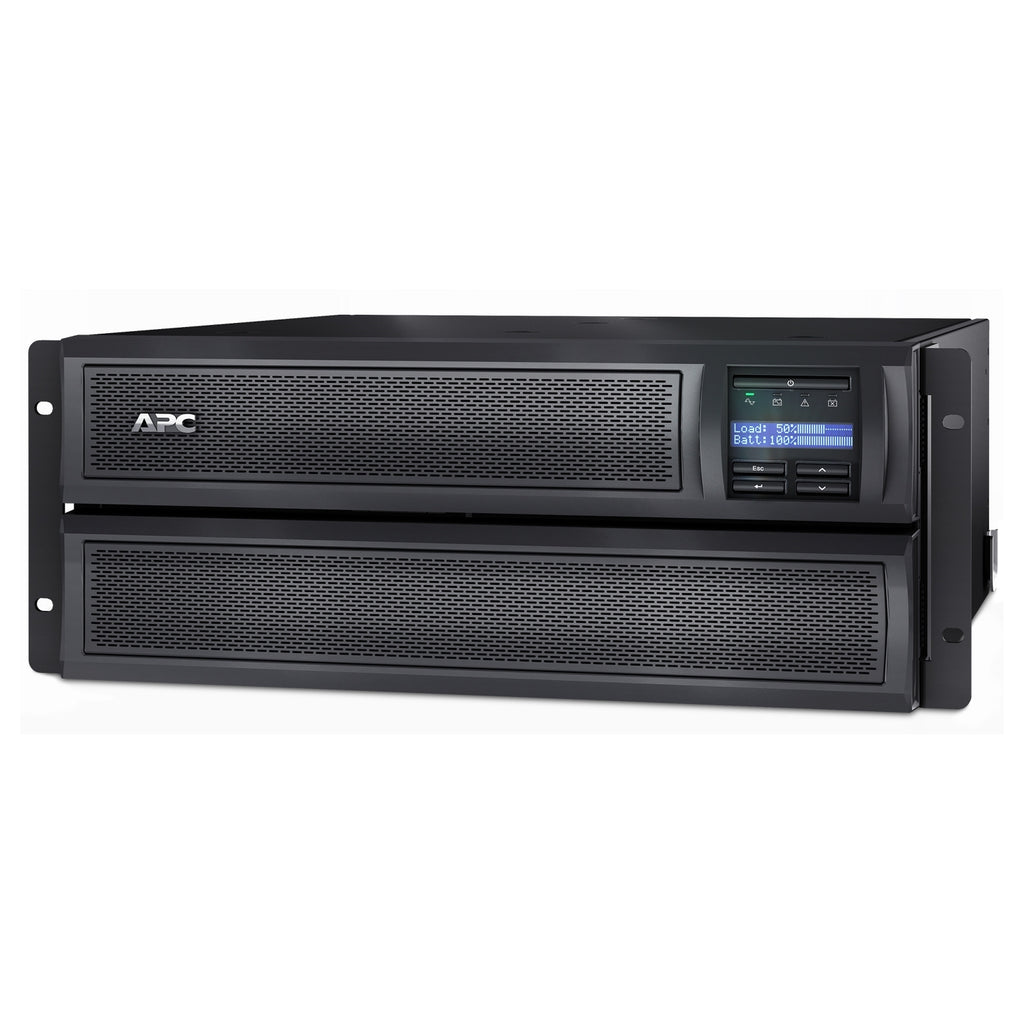

| Form Factor | Rack/Tower Convertible (4U) |
| Rated Power | 3kVA / 2700W |
| Input Voltage | 208V, 220V, 230V, 240V |
| Input Connection | IEC 320 C20 (includes Schuko, BS1363A, and C20 cords) |
| Output Voltage | 208V–240V |

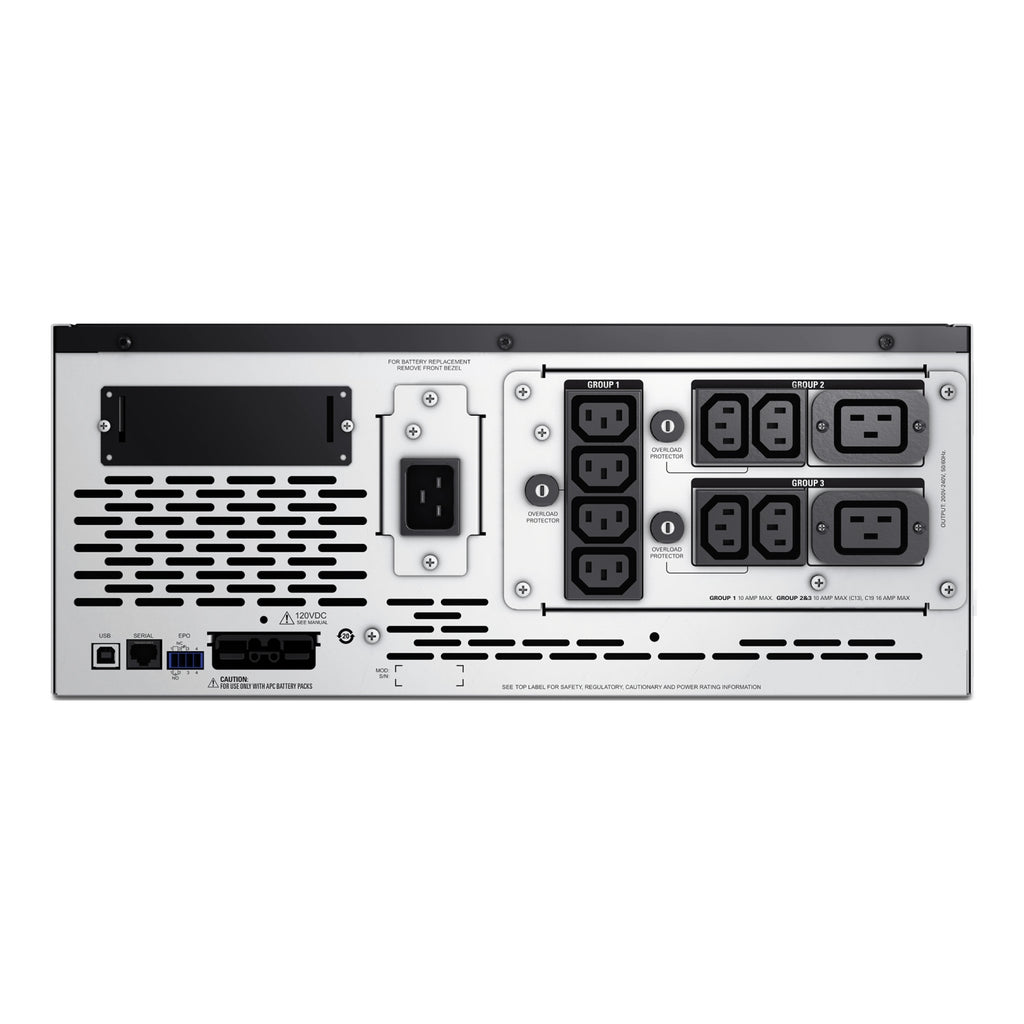

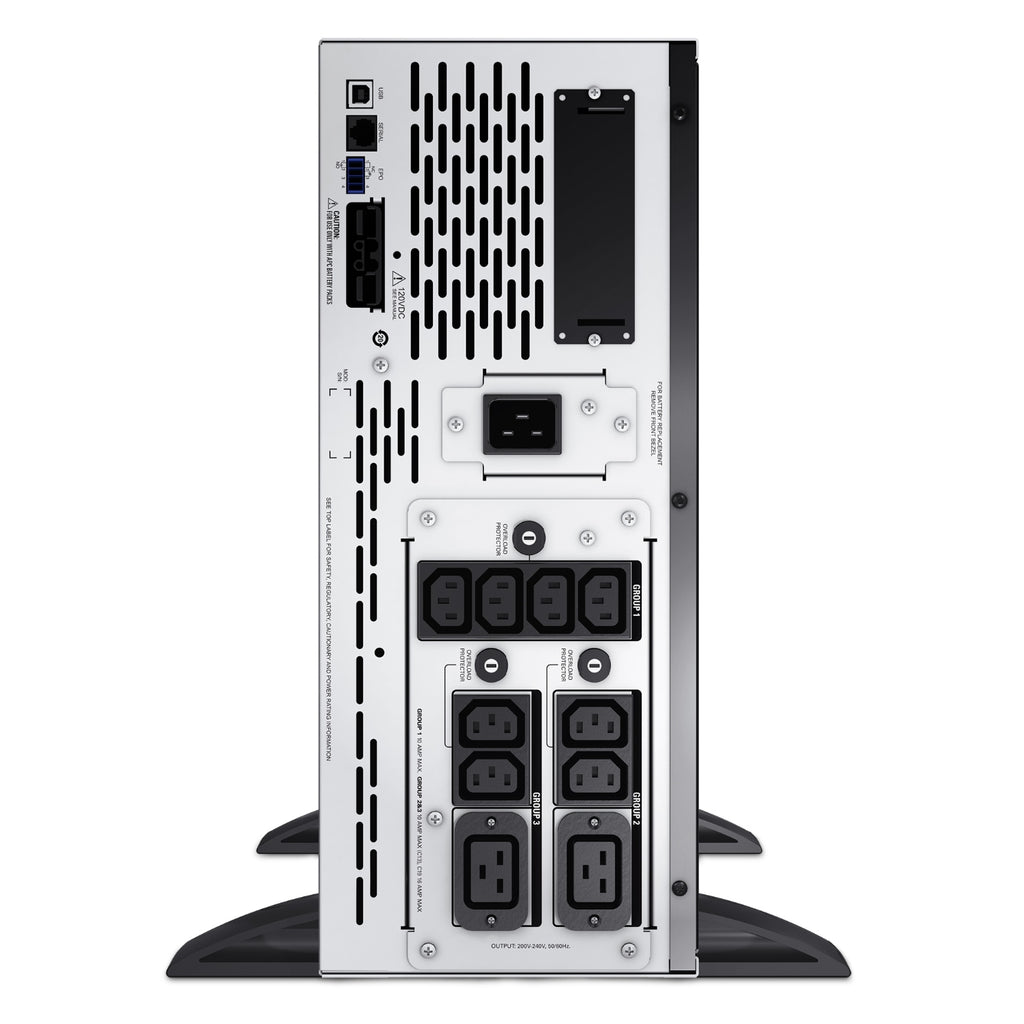

| Output Connections | 8x IEC C13, 2x IEC C19, 2x IEC Jumpers |
| Waveform | Pure Sine Wave |
| Battery Type | Lead-acid, hot-swappable |
| Replacement Battery | APCRBC143 |
| Runtime at Full Load | Approx. 6 minutes @ 2700W |
| External Battery Support | Yes, up to 10x SMX120BP |
| Recharge Time | ~3 hours |
| Communication Interfaces | SmartSlot, USB, Serial |
| Display | Multi-function LCD + LED status indicators |
| Surge Protection | 645 Joules |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Noise Level | 55 dBA |
| Dimensions (H x W x D) | 17.01 x 7.01 x 19.02 in (43.2 x 17.8 x 48.3 cm) |
| Weight | 85.2 lb (38.64 kg) |
| Warranty | 3 years UPS, 2 years battery |
