Description

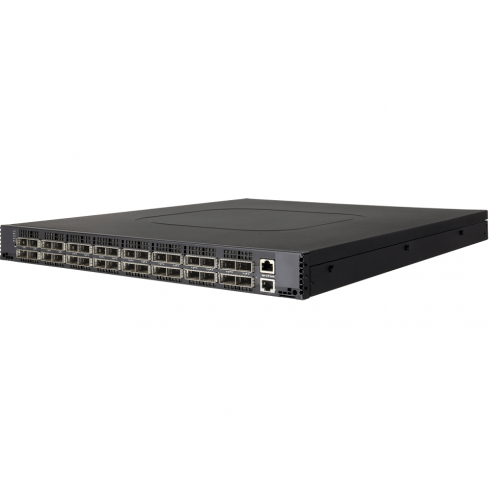

The Edgecore AS9716-32D-O-AC-B-US is a high-performance open network 400 GbE data center switch designed for large-scale spine deployments in cloud and enterprise data centers. Powered by Broadcom Tomahawk III (BCM56980) silicon, it delivers 25.6 Tbps switching capacity and 7.88 Bpps forwarding performance, ensuring non-blocking throughput for demanding workloads.

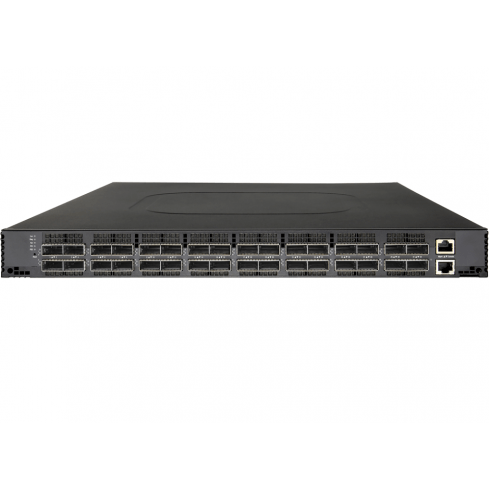

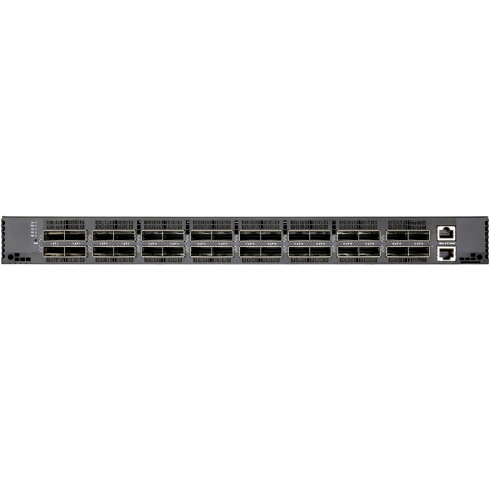

This 1U switch provides 32 QSFP-DD ports, each supporting 1 × 400 GbE or 4 × 100 GbE/25 GbE via breakout cables. It’s pre-loaded with ONIE (Open Network Install Environment), allowing flexible installation of compatible open-source or commercial Network Operating Systems (NOS).

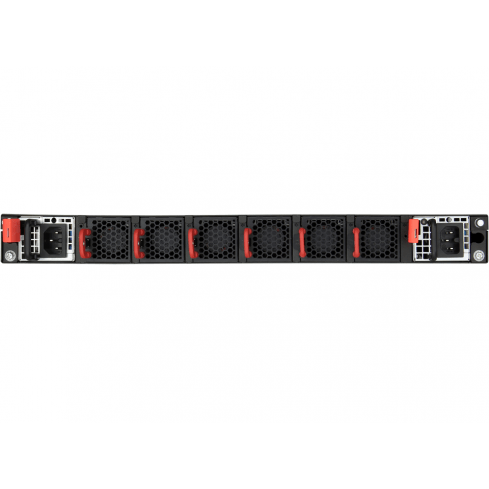

The AS9716-32D offers redundant, hot-swappable dual 1300 W AC power supplies and 5 + 1 fan modules with Power-to-Port airflow (back-to-front) for optimized cooling in data center environments. Built with an Intel Xeon D-1518 2.2 GHz CPU, 16 GB DDR4 RAM, and 50 GB M.2 SSD, this switch is ideal for open, scalable, and software-defined infrastructures requiring top-tier reliability and performance.
| Category | Specification |
|---|---|
| Model Number | AS9716-32D-O-AC-B-US |
| Form Factor | 1U rack-mountable switch |
| Switch Silicon | Broadcom Tomahawk III (BCM56980) |
| CPU | Intel Xeon D-1518 Quad-Core 2.2 GHz |
| Memory | 16 GB DDR4 (8 GB × 2 SO-DIMM) |
| Storage | 50 GB M.2 SSD MLC |
| Flash | 16 MB × 2 SPI Flash |
| Switching Capacity | 25.6 Tbps (full duplex) |
| Forwarding Rate | 7.88 Bpps |
| Packet Buffer | 64 MB integrated buffer |
| Port Configuration | 32 × QSFP-DD (400 GbE each) |
| Port Breakout Options | 4 × 100 GbE or 4 × 25 GbE via cables |
| Management Ports | 1 × RJ-45 serial console, 1 × RJ-45 1G Mgmt, 2 × SFP+ 10G Mgmt |
| Airflow Direction | Power-to-Port (back-to-front) |
| Power Supply | Dual AC PSUs (100–240 VAC, 50/60 Hz), hot-swappable, load-sharing |
| Cooling | 5 + 1 redundant hot-swappable fans |
| Jumbo Frame Support | Up to 9 KB |
| Dimensions (W×D×H) | 43.84 × 53.6 × 4.31 cm (17.25 × 21.1 × 1.69 in) |
| Weight | 11.06 kg (24.38 lb) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
| Operating Humidity | 5 % to 95 % (non-condensing) |
| Certifications | CE, FCC Class A, VCCI Class A, CB, UL 62368, RoHS 2.0, WEEE Compliant |
| Software Environment | ONIE (compatible with open and commercial NOS options) |
| Warranty | Limited hardware warranty (subject to regional terms) |
