Description

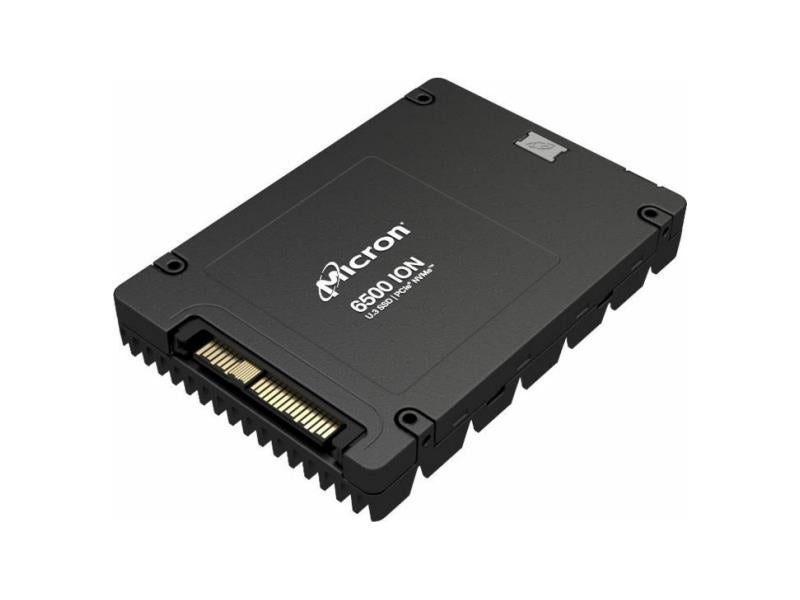

The Lenovo ThinkSystem 6500 ION 30.72TB Read Intensive NVMe SSD is an enterprise-grade storage solution designed for high-capacity, read-intensive and general-purpose data center workloads. Featuring a PCIe 4.0 x4 NVMe interface and 2.5-inch U.3 hot-swap form factor, it delivers up to 6,800 MB/s sequential read performance and up to 1,000,000 random read IOPS.
Built with Micron 232-layer 3D TLC NAND, the drive provides 16,800 TBW endurance, a 2 million-hour MTBF, and advanced power-loss and data-integrity protection. Integrated TCG Opal self-encrypting drive (SED) functionality adds hardware-level data security without impacting performance.
The SSD is formatted as a 4K Native (4Kn) drive and is optimized for environments where read performance, capacity, security, and enterprise reliability are key requirements.
Key Features
- High-capacity 30.72TB enterprise NVMe storage
- Direct PCIe 4.0 x4 connectivity for high throughput and low latency
- Up to 1 million random read IOPS
- Up to 6.8 GB/s sequential read performance
- Designed for read-intensive and general-purpose data center workloads
- TCG Opal 2.01 self-encrypting drive security
- Advanced ECC and end-to-end data protection
- Enterprise power-loss protection architecture
- Adaptive thermal monitoring
- 0.3 DWPD / 16,800 TBW endurance rating
- 2.5-inch U.3 hot-swap design
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lenovo |
| Product Family | ThinkSystem 6500 ION |
| SKU / Part Number | 4XB7A91176 |
| Feature Code | BZC1 |
| Product Type | Enterprise Solid-State Drive |
| Capacity | 30.72 TB |
| Form Factor | 2.5-inch |
| Drive Interface | U.3 |
| Interface Standard | NVMe PCIe 4.0 x4 |
| Drive Type | Read Intensive |
| Hot-Swap | Yes |
| NAND Technology | Micron 232-layer 3D TLC NAND |
| Sector Format | 4K Native (4Kn) |
| Sequential Read | Up to 6,800 MB/s |
| Sequential Write | Up to 5,000 MB/s |
| Random Read IOPS | Up to 1,000,000 IOPS |
| Random Write IOPS | Up to 200,000 IOPS |
| Random Read / Write Latency | 70 µs / 15 µs |
| Endurance | 0.3 DWPD for 5 years |
| Total Bytes Written | 16,800 TBW |
| MTBF | 2,000,000 hours |
| Data Reliability | UBER <1 error per 10¹⁷ bits read |
| Typical Read Power | 15 W |
| Typical Write Power | 20 W |
| Encryption | Self-Encrypting Drive (SED) |
| Security Standard | TCG Opal 2.01 |
| Data Protection | Advanced ECC and End-to-End Data Protection |
| Power-Loss Protection | Yes |
| Thermal Management | Adaptive Thermal Monitoring |
| S.M.A.R.T. Support | Yes |
| VMware ESXi | Not supported while formatted as 4Kn |
| Included Items | SSD, hot-swap tray, documentation |
| Supplier Model | MTFDKCC30T7TGR-1BK4DFCYY |
