Description
The Lenovo ThinkSystem SN550 7X16CTO1WW is a configurable, standard-width Flex System compute node designed for demanding enterprise workloads, virtualization, databases, cloud applications, collaboration, and high-performance computing environments.

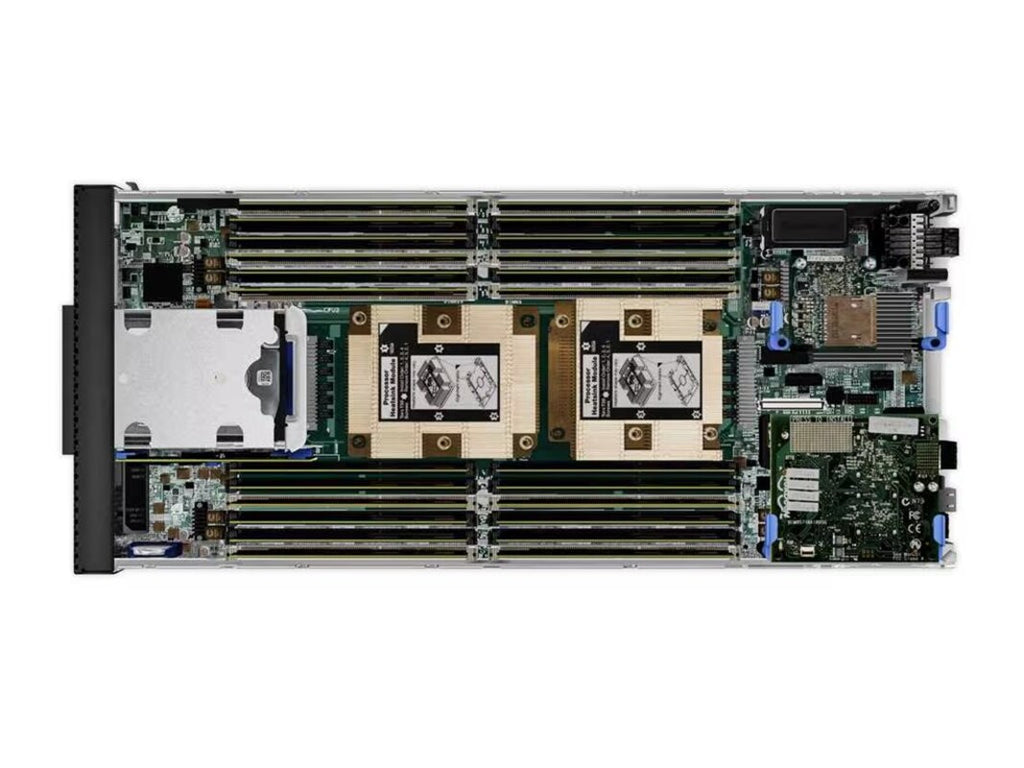

Built around second-generation Intel Xeon Scalable processors, the SN550 supports one or two processors with up to 28 cores per CPU and processor speeds up to 3.8 GHz. Its flexible memory architecture provides up to 24 DIMM sockets with Lenovo TruDDR4 memory support at speeds up to 2933 MHz, along with support for Intel Optane DC Persistent Memory.

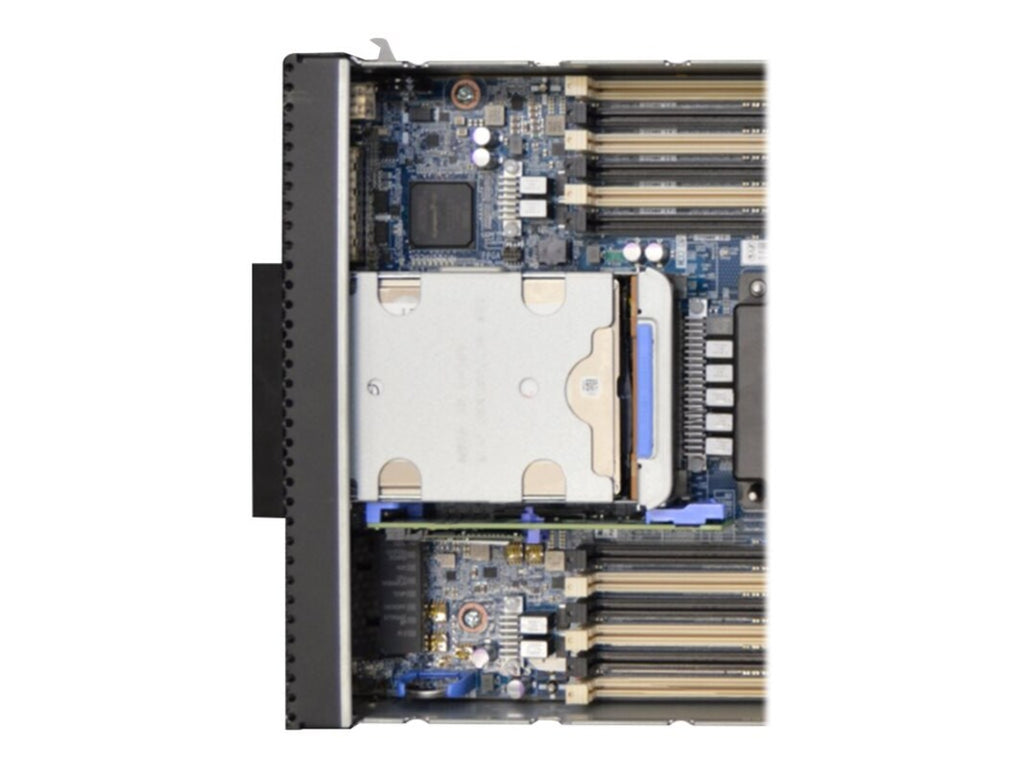

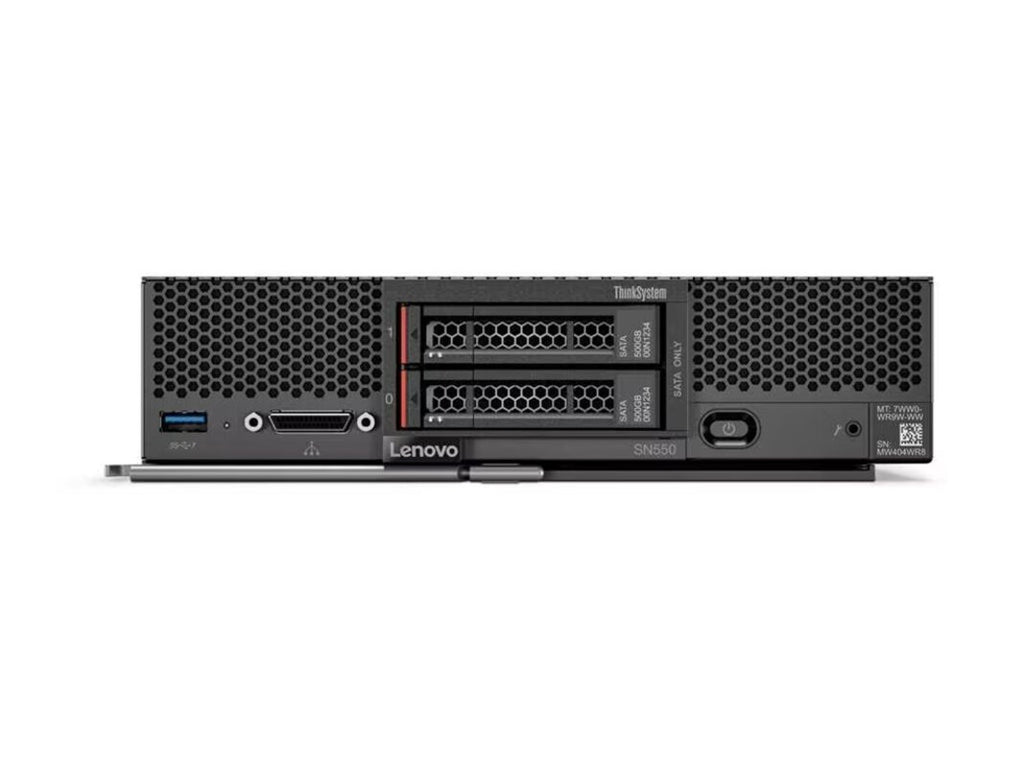

The system provides two 2.5-inch hot-swap drive bays with support for SAS, SATA, and NVMe storage configurations, plus optional M.2 SSDs. Two PCIe 3.0 x16 I/O expansion connectors enable flexible networking and connectivity options, including Ethernet speeds up to 50 GbE depending on configuration.
Integrated Lenovo XClarity management, TPM support, Secure Boot, predictive failure analysis, and light path diagnostics help simplify administration while improving system security and availability. The 7X16CTO1WW is a general-purpose Configure-to-Order (CTO) base model, allowing processor, memory, storage, networking, and other components to be selected according to deployment requirements.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lenovo |
| Product Family | ThinkSystem |
| Model | SN550 |
| SKU / Machine Type-Model | 7X16CTO1WW |
| Configuration Type | Configure-to-Order (CTO), General Purpose |
| Form Factor | Standard-width Flex System compute node |
| Supported Chassis | Lenovo Flex System Enterprise Chassis with CMM2 |
| Processor Support | 1 or 2 second-generation Intel Xeon Scalable processors |
| Maximum CPU Cores | Up to 28 cores per processor |
| Maximum Processor Speed | Up to 3.8 GHz |
| Maximum Processor TDP | Up to 165W |
| Chipset | Intel C624 |
| Memory Slots | Up to 24 DIMM sockets |
| Memory Type | Lenovo TruDDR4 RDIMM / LRDIMM / 3DS RDIMM support |
| Memory Speed | Up to 2933 MHz |
| Maximum System Memory | Up to 3 TB with system memory DIMMs |
| Persistent Memory | Up to 12 Intel Optane DC Persistent Memory modules |
| Drive Bays | 2 × 2.5-inch hot-swap bays |
| Supported Storage | SAS, SATA, NVMe SSD/HDD depending on configuration |
| M.2 Support | Up to 2 optional M.2 SSDs |
| RAID Support | RAID 0, RAID 1 |
| Network | Embedded Intel X722 10 GbE on supported configurations; optional 1/10/25/40/50 GbE adapters |
| Expansion | 2 × PCIe 3.0 x16 I/O adapter connectors |
| Front Ports | 1 × USB 3.0, 1 × console breakout cable port |
| Systems Management | Lenovo XClarity Controller, XClarity Provisioning Manager |
| Security | TPM 1.2/2.0, Secure Boot, administrator and power-on passwords |
| Supported Operating Systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Dimensions | 218 × 56 × 507 mm (W × H × D) |
| Maximum Weight | 7.1 kg / 15.6 lb |
| Warranty | 3-year limited warranty |
| Typical Applications | Virtualization, databases, enterprise applications, cloud, web, collaboration, streaming, HPC |
