Description

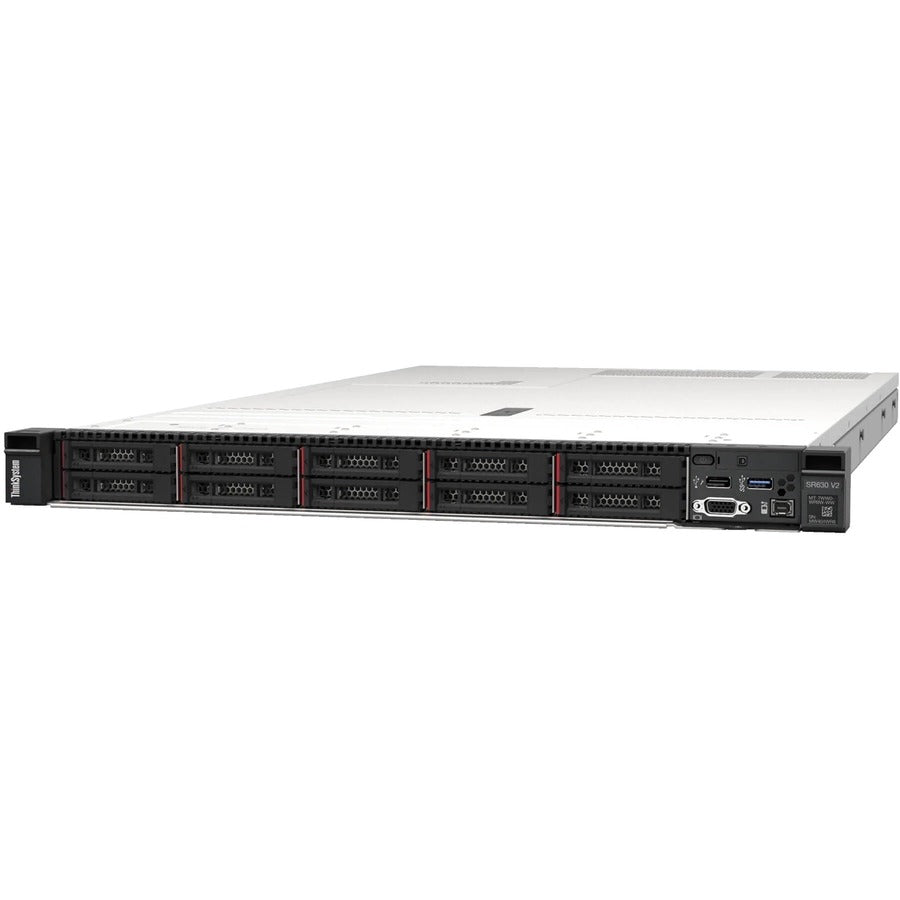

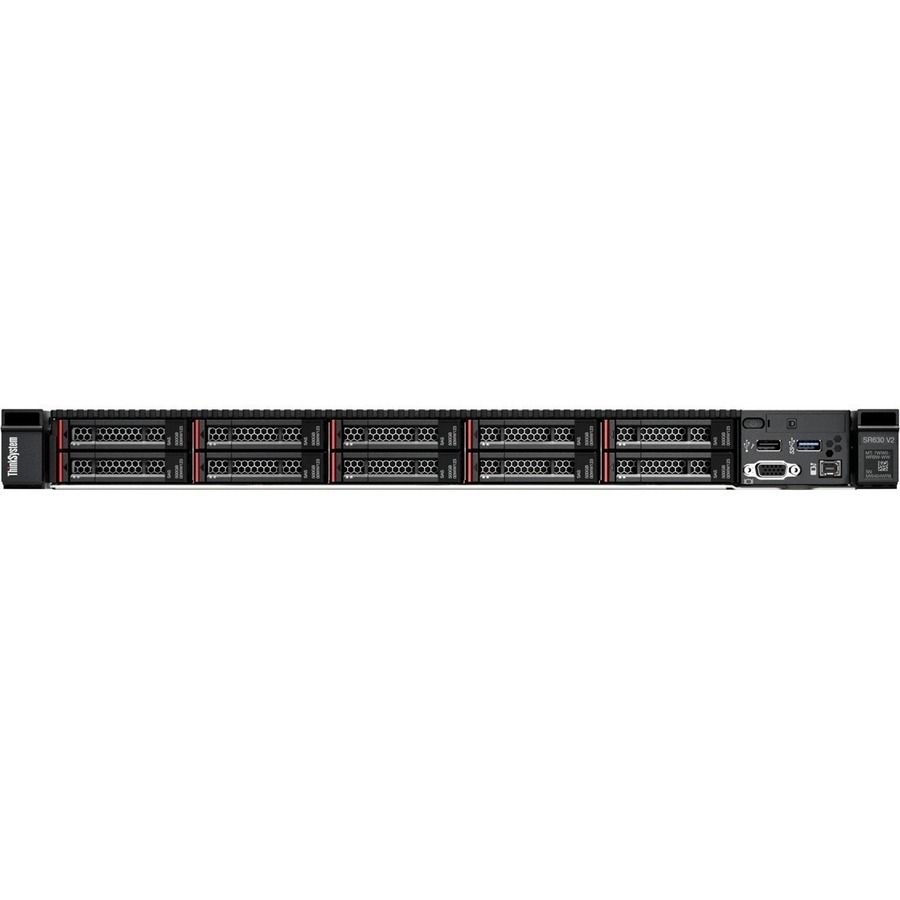

The Lenovo ThinkSystem SR630 V2 7Z71A06XNA is a powerful, highly adaptable 1U rack server designed to deliver exceptional performance, reliability, and scalability for demanding business environments. Featuring a single Intel Xeon Gold 5320 processor with 26 cores and support for up to 2 processors, this enterprise-class server is built to handle a wide range of workloads including virtualization, cloud computing, high-performance databases, collaboration tools, and virtualization infrastructures.
With support for up to 8TB TruDDR4 ECC memory, hot-swappable bays, and Intel Optane readiness, the SR630 V2 provides unmatched memory scalability and resilience. Advanced features such as Intel C621A chipset, G200 graphics, and XClarity Controller (XCC) Enterprise ensure seamless management, enhanced security, and optimized system performance. Whether for data centers, enterprise applications, or cloud services, the SR630 V2 delivers the speed, flexibility, and reliability needed to future-proof your IT infrastructure.
| Category | Details |
|---|---|
| Product Model | Lenovo ThinkSystem SR630 V2 7Z71A06XNA |
| Form Factor | 1U Rack Server |
| Processor | 1 x Intel Xeon Gold 5320 (26-Core, 2.20 GHz, 39 MB Cache) |
| Processor Support | Up to 2 processors |
| Chipset | Intel C621A |
| Memory | 32 GB TruDDR4 ECC Registered (Buffered), up to 8 TB supported |
| Memory Slots | 32 DIMM slots (1 occupied) |
| Memory Speed | 3200 MHz |
| Intel Optane Memory Ready | Yes |
| Storage Controller | Intel RSTe RAID Controller – Serial ATA/600, 12Gb/s SAS |
| RAID Support | RAID 0, 1, 5, 10, JBOD |
| Hot Swappable Bays | Yes |
| Expansion Slots | 3 x PCIe 4.0 x16 |
| Graphics | G200 with 16 MB memory |
| Networking | Gigabit Ethernet |
| Interfaces / Ports | 6 x USB (1 x USB 2.0), 1 x RJ-45, 1 x VGA |
| Remote Management | XClarity Controller (XCC) Enterprise |
| Supported Operating Systems | Windows Server 2016/2019/2022, RHEL 7.9–9.1, SUSE Linux Enterprise Server 12 SP5 / 15 SP2–SP4, Ubuntu 18.04 / 20.04 / 22.04 LTS |
| Power Supply | 1 x 750 W Hot-Swappable PSU (up to 2 supported) |
| Input Voltage | 120 V AC / 230 V AC |
| Connector Type | C13/C14 |
| Security | TPM 2.0, Chassis Intrusion Switch, Power-on/Admin Password |
| Dimensions (H x W x D) | 1.7" x 17.3" x 30.4" |
| Weight | 57.98 lbs |
| Environmental Certifications | CELP, EPEAT Bronze, GREENGUARD, CECP, ENERGY STAR 3.0, RoHS |
| Warranty | 3-Year Limited Warranty |
